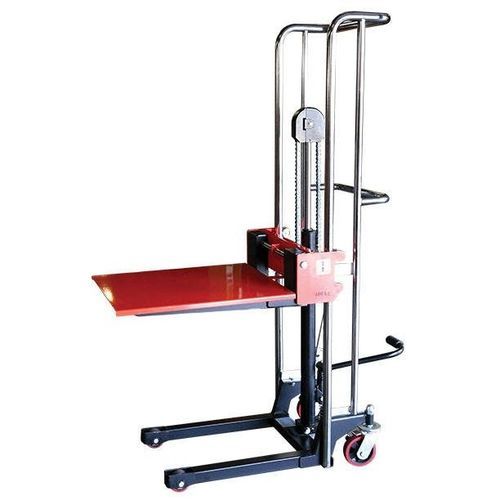

Manual stacker truck SPJ series

hydraulicplatformfoot-operated

Product Overview
The SPJ Manual Stacker is a compact, versatile manual lifting unit designed for efficient load handling in warehouses, workshops and delivery operations. It offers a rated capacity of up to 400 kg and model-dependent maximum fork heights up to 1700 mm. The removable platform and adjustable forks allow handling of pallets, cartons and non-palletized loads. Its compact footprint and lightweight construction enable easy transport in vehicles for truck loading and unloading.

Details of SPJ Manual Stacker

• Fast and efficient manual transport and lifting of loads
• Removable platform to handle pallets, parcels and irregular loads
• Lightweight and compact for easy vehicle transport
• Quick-lift foot pedal for rapid raising of forks
• Lowering control knob to prevent uncontrolled descent
• Two fixed and two swivel braked wheels for stable positioning
• Suitable for truck loading/unloading and general material handling
• Load capacity: up to 400 kg
• Lift height: up to 1700 mm (model-dependent)
• Adjustable forks
• Optional variants: stainless steel construction and 1500 mm lift height available

Advantages of SPJ Manual Stacker

• Compact footprint: narrow overall width and short turning radius for operation in aisles and confined spaces
• Efficient manual operation: foot-operated hydraulic pump enables quick lifting with minimal operator effort
• Flexible load handling: adjustable forks and removable platform adapt to pallets, cartons and non-palletized loads
• Stable and controlled lifting: mast with precision guide rollers and manual descent valve ensure safe lowering
• Smooth maneuverability: polyurethane swivel casters with brakes and durable load wheels for floor protection and quiet movement
• Industrial-grade construction: powder-coated steel frame with chrome-plated rails; optional stainless steel version available

Models / Specifications Table
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Load Roller mm(in.) | Steering Wheel mm(in.)
| SPJ4170 | 400 (880) | 85 ± 5 (3.3 ± 0.2) | 1700 (67) | Ø75 (Ø3) | Ø127
| SPJ4150 | 400 (880) | 85 ± 5 (3.3 ± 0.2) | 1500 (60) | Ø75 (Ø3) | Ø125
| SPJ4120 | 400 (880) | 85 ± 5 (3.3 ± 0.2) | 1200 (47.2) | Ø75 (Ø3) | Ø125

Technical specifications

• Series: SPJ series
• Rated load capacity: 400 kg (880 lb)
• Min. fork height: 85 ± 5 mm (approx. 3.3 ± 0.2 in)
• Max. fork heights available by model: 1200 mm, 1500 mm, 1700 mm
• Load roller diameter: Ø75 mm (Ø3 in)
• Steering wheel diameter: Ø125–Ø127 mm (varies by model)
• Forks: adjustable
• Platform: removable for non-palletized loads
• Wheels: two fixed + two swivel with brakes; polyurethane swivel casters and durable load wheels
• Lifting mechanism: manual foot-operated hydraulic pump (quick-lift foot pedal)
• Lowering: controlled manual lowering knob/valve
• Construction: powder-coated steel frame with chrome-plated rails; optional stainless steel version
• Applications: warehouse, workshop, truck loading/unloading, handling pallets, parcels and irregular loads
