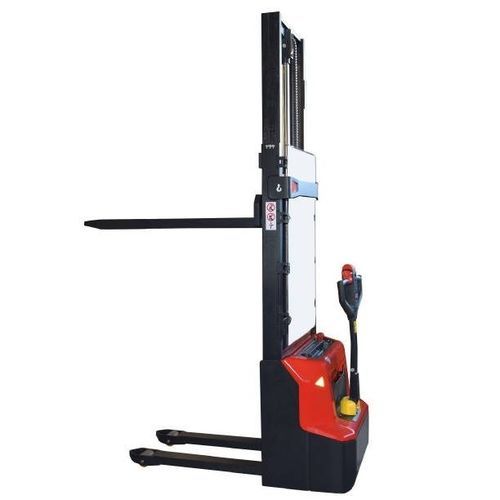

Electric stacker truck PSE12N series

battery-poweredwalk-behind24 V

Product overview
The PSE12N Electrical Lithium Stacker is a compact pedestrian-operated electric stacker designed for light to medium-duty warehouse and logistics applications. It is used for lifting, stacking and transporting palletized goods efficiently in confined working areas such as narrow aisles, storage rooms and small warehouses.
The PSE12N offers a rated load capacity of 1.2 tons (1200 kg). Residual lifting capacity varies with lift height: 1200 kg up to 2500 mm, 1000 kg up to 2900 mm, 800 kg up to 3200 mm and 600 kg up to 3600 mm. Multiple mast configurations are available providing lift heights up to 4064 mm.
The stacker is powered by a 24 V lithium-ion battery with fast charging capability and includes a 25 Ah built-in charger for convenient operation. With an overall compact length of only 1710 mm and a central steering handle that can be operated in vertical position, the unit is optimized for maneuverability in tight spaces.

Main features

• Extremely compact design — marketed as the most compact stacker on the market
• iF Design Award 2020 winner for ergonomic design
• Ideal for light to medium duty applications
• Load capacity: 1.2 metric tons (1200 kg)
• High residual load capacity at varying lift heights (see technical specs)
• Equipped with a fast-charging Li‑ion battery and a 25 Ah built-in charger
• Robust construction: steel cover and strong chassis
• Overall length: 1710 mm
• Central steering handle operable in vertical position for improved maneuverability in confined spaces
• RFID card start-up for controlled access
• Slow speed mode (turtle mode) for safer turning and travel speed control
• Smart View mast system enabling operator visibility of up to 60% of the fork length
• Easy maintenance: quick and easy access to components without special tools

Table - available model configurations
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
PSE12N4150 | PSE12N4150 | 1200 | 90 | 4150 | 1150 | 570
PSE12N3600 | PSE12N3600 | 1200 | 86 | 3600 | 1150 | 570
PSE12N3200 | PSE12N3200 | 1200 | 86 | 3200 | 1150 | 570
PSE12N2900 | PSE12N2900 | 1200 | 86 | 2900 | 1150 | 570
PSE12N2600 | PSE12N2600 | 1200 | 86 | 2600 | 1150 | 570
PSE12N1600 | PSE12N1600 | 1200 | 86 | 1600 | 1150 | 570

Technical specifications

• Model (commercial designation): PSE12N
• Rated capacity: 1200 kg (1.2 t)
• Residual load performance by lift height: 1200 kg up to 2500 mm; 1000 kg up to 2900 mm; 800 kg up to 3200 mm; 600 kg up to 3600 mm
• Available max lift heights (model-dependent): examples include 4150 mm, 3600 mm, 3200 mm, 2900 mm, 2600 mm, 1600 mm
• Min. fork height: 86 mm (typical for most variants); 90 mm for PSE12N4150
• Fork length: 1150 mm
• Overall forks width: 570 mm
• Drive/battery: 24 V lithium-ion battery with fast-charge capability; integrated 25 Ah charger
• Overall length: 1710 mm
• Steering: central steering handle (can be used in vertical position)
• Operator safety/features: RFID card start-up, turtle (slow speed) mode, Smart View mast (approx. 60% fork visibility)
• Construction: steel cover and robust chassis for durability
• Maintenance: designed for easy access to all components; no special tools required
• Awards: iF Design Award 2020
