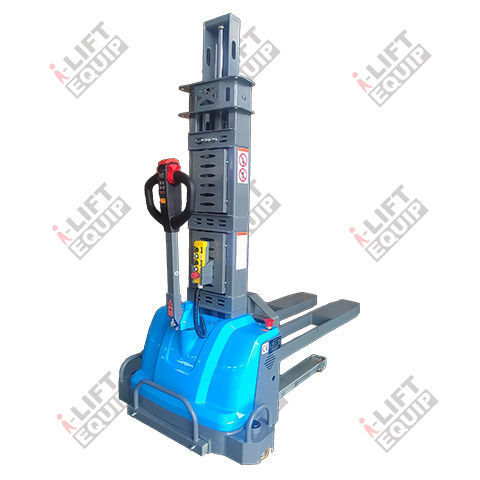

Electric stacker truck FEYG series

for warehousefor materials handlingunloading

Product
Self-elevating electric stacker FEYG series by i-LIFT, designed for loading/unloading and pallet handling from light to medium commercial vehicles.

Description

• The self-elevating lifter travels with the load and the vehicle, enabling transport of palletised goods in light to medium commercial vehicles.
• The unit lifts itself into and out of the delivery vehicle, eliminating the need for additional lifting equipment during loading and unloading operations.
• Quick loading and unloading of palletised cargo allow the driver to operate independently from warehouse staff, significantly reducing manual handling.
• Suitable for vehicle loading/unloading and site material handling where fast, autonomous pallet movement is required.

Applications

• Car manufacturers
• Transport and haulage
• Warehousing
• Civil engineering companies
• Heating and electrical equipment suppliers
• Generator power systems
• Exhibitions
• Logistics
• Furniture
• Stone masons

Models and specifications
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm(in.) | Fork Length mm(in.) | Overall Forks Width mm(in.)
1552201 | FEYG1009 | 1000 (2200) | 85 (3.3) | 900 (35.4) | 400 (15.7) |
1552202 | FEYG1011 | 1000 (2200) | 85 (3.3) | 1100 (44) | 400 (15.7) |
1552203 | FEYG1013 | 1000 (2200) | 85 (3.3) | 1300 (51.2) | 400 (15.7) |
1552204 | FEYG1015 | 1000 (2200) | 85 (3.3) | 1500 (59) | 400 (15.7) |
1552205 | FEYG1209 | 1200 (2640) | 85 (3.3) | 900 (35.4) | 400 (15.7) |
1552206 | FEYG1211 | 1200 (2640) | 85 (3.3) | 1100 (44) | 400 (15.7) |
1552207 | FEYG1213 | 1200 (2640) | 85 (3.3) | 1300 (51.2) | 400 (15.7) |
1552208 | FEYG1215 | 1200 (2640) | 85 (3.3) | 1500 (59) | 400 (15.7) |

Technical specifications

• Series: FEYG
• Manufacturer / Brand: i-LIFT
• Capacity: 1000 kg (2200 lb) and 1200 kg (2640 lb) variants
• Minimum fork height: 85 mm (3.3 in)
• Maximum fork height: 900–1500 mm (35.4–59 in) depending on model
• Fork length: 400 mm (15.7 in)
• i-LIFT model numbers: 1552201–1552208 (see Models and specifications table)
• Application: self-elevating lifter for loading/unloading from vehicles and material handling in multiple industries
