Semi-electric stacker truck SEJ series

platform12 Vfor warehouse

Product Overview

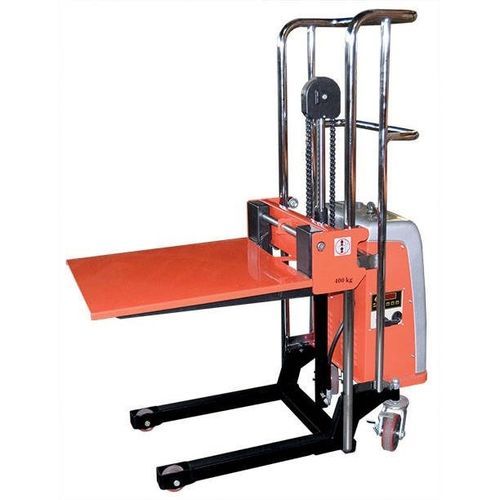

SEJ Semi-electric stacker is a lightweight, compact material handling solution designed for smooth lifting and easy maneuvering in warehouses, storage areas and delivery operations. It provides electric lifting via a 12V motor, a 400 kg load capacity, a removable platform and adjustable forks to handle pallets, parcels and non-standard loads. The unit is mounted on two fixed and two braked swivel casters for improved stability and control.

Details

• Lightweight semi-electric stacker suitable for a wide range of internal handling operations
• Load capacity: 400 kg (880 lb)
• Electric lifting powered by a 12V motor
• Available lift heights: 1200 mm, 1500 mm, 1700 mm
• Removable platform placed on top of the forks to handle pallets, parcels and non-standard loads
• Equipped with 2 fixed and 2 braked swivel casters for greater stability
• Adjustable forks to fit different pallet sizes and containers

Advantages

• Compact design for narrow aisles and confined working areas
• Adjustable forks for flexible handling of varied loads
• Ergonomic, labor-saving operation with electric lift and lowering
• Designed for single-operator use with lightweight tubular steel construction
• Durable steel construction with chrome-plated rails and handles for corrosion resistance
• Optional work platform function (platform attachment available) to use as a work positioner
• Suitable for warehouses, factories, hospitals, stores, offices and retail environments
• High safety and reliability for everyday professional use

Models and Main Dimensions (table)
Model No. | Capacity kg(lb.) | Min. Fork Height mm(in.) | Max. Fork Height mm | Load Roller mm | Steering Wheel mm
SEJ4170 | 400 (880) | 85 ±5 (3.3 ±0.2) | 1700 | φ75×40 | φ127×40
SEJ4150 | 400 (880) | 85 ±5 (3.3 ±0.2) | 1500 | φ75×40 | φ127×40
SEJ4120 | 400 (880) | 85 ±5 (3.3 ±0.2) | 1200 | φ75×40 | φ127×40

Technical specifications

• Brand: i-LIFT
• Model series: SEJ
• Type: Semi-electric fork-type stacker
• Load capacity: 400 kg (880 lb)
• Motor: 12V electric lifting motor
• Available lift heights: 1200 mm / 1500 mm / 1700 mm (models SEJ4120, SEJ4150, SEJ4170)
• Minimum fork height: 85 ±5 mm (3.3 ±0.2 in)
• Load roller size: φ75 × 40 mm
• Steering wheel size: φ127 × 40 mm
• Wheels: 2 fixed + 2 braked swivel casters
• Removable platform on top of forks (allows handling of pallets, parcels, non-standard loads)
• Adjustable forks
• Construction: tubular steel frame, chrome-plated rails and handles
• Applications: truck loading/unloading, storage, internal transport, stacking, leveling, offices, warehouses, hospitals, stores, laboratories, retail
