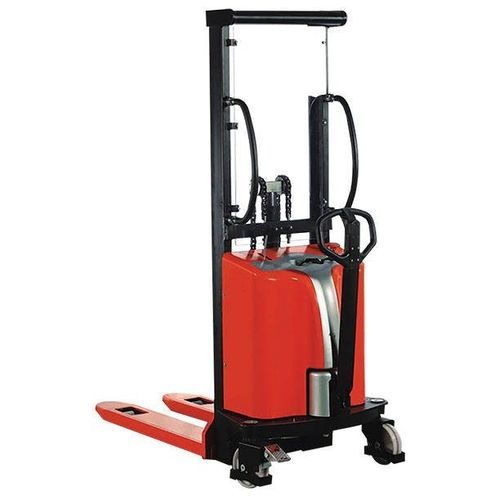

Semi-electric stacker truck HES10 series

walk-behindfor warehousepallet

Product Overview

• Semi-electric stacker for load transport by hand and electric lifting, rated capacity 1,000 kg (2,200 lb)
• Built-in 150 Ah maintenance-free battery with integrated charger for frequent stacking operations
• Hand lever for precise lift and lower control; electric lift motor 1.5 kW
• Automatic battery cut-off switch to prevent unauthorized use
• Protection on steering wheels and mechanical parking brake to improve operator safety
• Profiled steel mast with adjustable lift chain
• Available in four lift-height variants: 1600 mm, 2500 mm, 3000 mm and 3300 mm
• Forks nominal dimensions and overall width designed for standard pallet handling

Models and Dimensions
Model No. | Capacity kg (lb.) | Min Fork Height mm | Max Fork Height mm | Fork Length mm | Overall Forks Width mm
HES10/3300 | 1000 (2200) | 85 | 3300 | 1000 | 570
HES10/3000 | 1000 (2200) | 85 | 3000 | 1000 | 570
HES10/2500 | 1000 (2200) | 85 | 2500 | 1000 | 570
HES10/1600 | 1000 (2200) | 85 | 1600 | 1000 | 570

Additional Notes

• Battery weight: 45 kg
• Fork dimensions (nominal): 60 / 180 / 1100 mm (applies to all models)
• Overall across forks width: 570 mm
• Lowered mast height: 1980 mm (HES10/1600), 1830 mm (HES10/2500), 2080 mm (HES10/3000)
• Extended mast height: 1980 mm (HES10/1600), 3070 mm (HES10/2500), 3570 mm (HES10/3000)
• Noise level at driver’s ear acc. to EN 12053: 67 dB

Technical Specifications

• Rated capacity: 1000 kg (2200 lb)
• Battery: 150 Ah maintenance-free (built-in) with built-in charger
• Battery weight: 45 kg
• Lift motor power: 1.5 kW
• Operation: Hand-operated transport; electric lift
• Mast: Profiled steel mast
• Lift chain: Adjustable
• Fork dimensions (nominal): 60 / 180 / 1100 mm
• Overall forks width: 570 mm
• Min. fork height: 85 mm
• Available max fork heights by model: HES10/1600 = 1600 mm, HES10/2500 = 2500 mm, HES10/3000 = 3000 mm, HES10/3300 = 3300 mm
• Noise level (EN 12053): 67 dB
