Piston compressor LOA series

airelectrically-poweredstationary

Product Overview

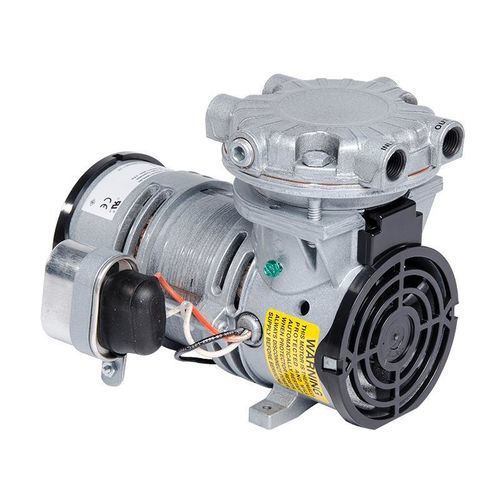

Our compact, lightweight LOA-101-HB is an oil-free rocking piston compressor and vacuum pump engineered for quiet operation with low vibration, suitable for noise-sensitive industrial environments. The unit delivers clean, contaminant-free pressure or vacuum at low flow rates. Rated 0.0625 HP, it operates at 115 V AC (60 Hz) with a maximum continuous pressure of 100.0 PSI, maximum vacuum 26 in Hg and open flow up to 0.5 CFM.

Series / Function
The LOA single-cylinder series provides both compression and vacuum capability at low flow; the related LAA twin-cylinder model serves primarily as a vacuum pump. Both series are oil-free and corrosion-resistant, intended for continuous or intermittent use and integration into equipment where low noise and clean air are required.

Highlights

• Dual function: operates as compressor and vacuum pump
• Low noise and vibration suitable for sensitive environments
• Oil-free, corrosion-resistant construction for contaminant-free output
• Compact, lightweight design for easy integration

Product Details
Item #: LOA-101-HB
Series: Rocking Piston
Description: Rocking Piston Compressors & Pumps

Technical specifications

• HP: 0.06 (0.0625 HP referenced)
• Amps: 50 Hz = 1.4 A; 60 Hz = 1.5 A; DC = —
• Weight: 8.6 lb (4 kg)
• Open Flow (standard): 50 Hz = 0.4 CFM; 60 Hz = 0.5 CFM
• Open Flow (metric): 50 Hz = 11 LPM; 60 Hz = 14 LPM
• Voltage: 50 Hz = 110 V; 60 Hz = 115 V; DC = —
• Regulatory: cURus
• Max Pressure: 100 psi (6.89 Bar)
• Phase: Single Phase
• Country of Origin: USA
• Flow @ Max Pressure (standard): 50 Hz = 0.1 CFM; 60 Hz = 0.17 CFM
• Flow @ Max Pressure (metric): 50 Hz = 2.8 LPM; 60 Hz = 4.8 LPM
• Sound Level: 70 dBA
• Max Vacuum: 26 in Hg
• Dimensions (in): 7.98 L x 5.71 W x 5.97 H
• Dimensions (mm): 202.7 L x 145.0 W x 151.6 H
• Mounting Dimensions (in): 4.6 L x 3.5 W
• Mounting Dimensions (mm): 116.8 L x 88.9 W
