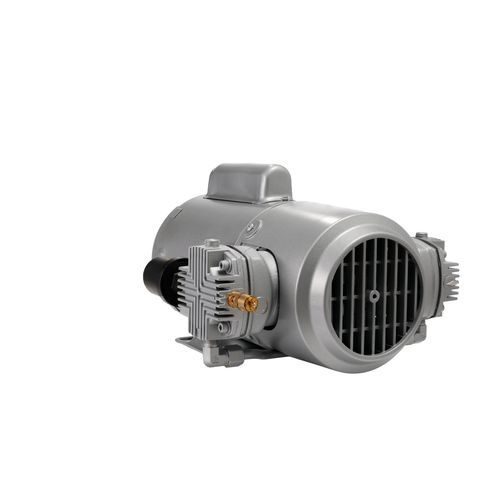

Piston compressor 5HCD-10-M530X

airelectricstationary

Overview Our compact tank-mounted piston compressor (5HCD-10-M530X) is designed for durability and long service life. Oil-free model delivering clean, contaminant-free compressed air. The 5HCD-10-M530X is a 3/4 HP unit operating at 115/230 V AC with a maximum continuous pressure of 100 PSI and an air flow of 4.8 CFM (≈ 136 LPM). These tank-mounted models (5L-5H-5V and 6H) are built for demanding operating conditions and include corrosion-resistant internal components.

Series and applications The 5L-5H-5V and 6H series are piston compressors with two cylinders (5L-5H, 6H) or four cylinders (5V for vacuum) designed to deliver high, consistent pressures or reliable vacuum. Typical applications: cable pressurization, inflation, high-pressure spraying, component testing, material handling and food preservation across industrial, food-processing, automotive and manufacturing sectors.

Key features

• Oil-free construction: Robust design ensuring clean, contaminant-free air.
• High-pressure capability: Engineered for demanding, consistent pressure requirements.
• Tank-mounted: Tanks available from 2 to 60 gallons (depending on configuration).

Documents and associated files (examples on the product page) The product includes CAD models (STEP files), range brochures and user and maintenance manuals available for download. Files listed on the page typically include CAD files, a product range brochure and a piston manual (STEP, PDF formats).

Specifications / technical data

• Reference: 5HCD-10-M530X
• Series: Piston
• Description: Piston compressors
• HP: 0.75 (3/4 HP)
• Voltage (60Hz): 115/230 V AC (single-phase)
• Phase: Single-phase
• Open flow (60Hz): 4.8 CFM (≈ 136 LPM)
• Maximum pressure: 100 PSI (≈ 6.89 bar)
• Current (60Hz): 6.8/3.4 A
• Weight: 40 lb / 18 kg
• Noise level: 75 dBA
• Regulatory: CSA
• Country of origin: United States
• Mounting dimensions (standard): 3 in x 4.88 in (76.2 x 124.0 mm)
