Piston compressor 3HBB-10-M300AX

airelectrically-poweredstationary

Overview

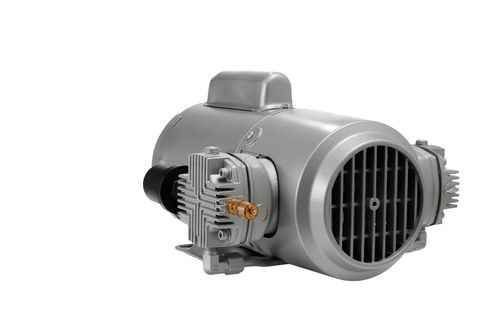

The tank-mounted compact piston compressor (3HBB-10-M300AX) is engineered to provide long service life for a wide range of industrial applications. Its oil-free design delivers clean, contaminant-free compressed air. The 3HBB-10-M300AX model is 0.33 HP, operates at 115 V AC, with a maximum continuous pressure of 100 PSI and an airflow of 2.4 CFM.

Product family

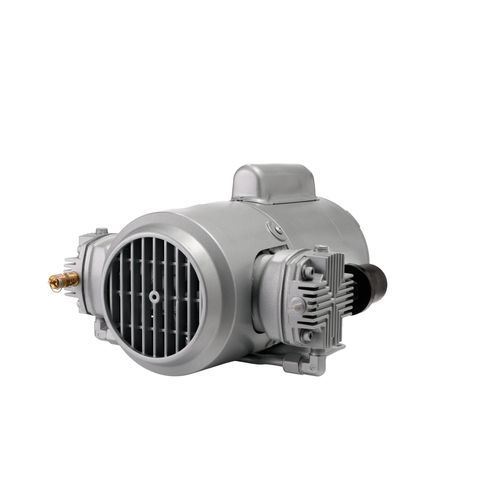

Designed for durability and extended service life, our tank-mounted models 3L-3H and 4L-4H-4V are reference solutions for demanding applications and harsh operating conditions. These medium-to-compact piston air compressors and vacuum pumps efficiently provide compressed air or vacuum across a wide range of pressures and flow rates. Their robust construction, incorporating corrosion-resistant internal components and oil-free operation, ensures reliable performance and clean, contaminant-free air.

Applications
These two-cylinder air compressors (models 3L-3H and 4L-4H) are suitable for applications requiring high, steady pressure such as cable pressurization, inflation or pressure spraying across general industry, food processing, automotive and manufacturing sectors. The 4V two-cylinder pumps deliver reliable vacuum for processes like component testing, material handling and food preservation.

Key features

• Durable and oil-free: Robust construction providing clean, contaminant-free air
• High-pressure capability: Suitable for demanding, steady-pressure applications
• Tank-mounted: Tank options available from 2 to 60 gallons

Technical specifications

• Reference: 3HBB-10-M300AX
• Series: Piston
• Description: Piston compressors
• Power (HP): 0.33 HP
• Amps (60 Hz): 6.6 A (value provided for 60 Hz)
• Weight: 24 lb / 11 kg
• Open flow (60 Hz): 2.4 CFM (68 LPM)
• Voltage (60 Hz): 115 V AC
• Regulatory: cURus
• Maximum pressure: 100 PSI / 6.89 bar
• Phase: Three-phase
• Country of origin: United States
• Flow at maximum pressure (60 Hz): 1.1 CFM (31.1 LPM)
• Sound level: 70 dBA
• Dimensions (in): 12.45 L x 10.94 W x 7.33 H
• Dimensions (mm): 316.2 L x 277.9 W x 186.2 H
• Mounting dimensions (in): 2.75 L x 4.25 W
• Mounting dimensions (mm): 69.9 L x 108.0 W
