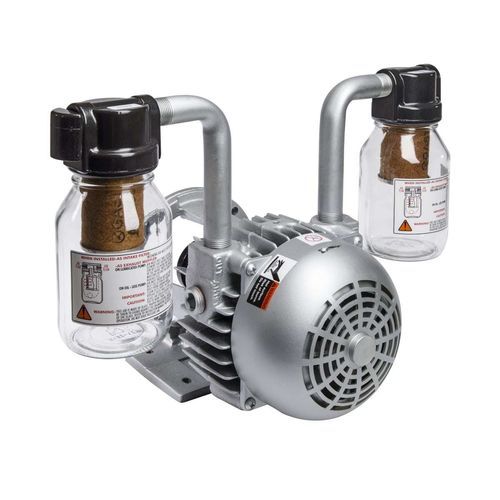

Rotary vane compressor 2567-P102
airmotorlessstationary

Rotary vane compressor - 2567-P102 - JUN-AIR - air / motorless / stationary
Rotary vane compressor - 2567-P102 - JUN-AIR - air / motorless / stationary
Add to favorites
Compare this product

Characteristics

Technology
rotary vane
Type
air
Power source
motorless
Portability
stationary
Lubrication
oil-free, lubricated
Application domain
for medical applications, for food applications, for scientific research
Other characteristics
compact, low-noise, rugged
Pressure

1.03 bar
(14.94 psi)

Flow

Max.: 35.68 m³/h
(1,260.03 ft³/h)

Min.: 28.88 m³/h
(1,019.89 ft³/h)

Power

1.12 kW
(1.52 hp)

Length

291.6 mm
(11.48 in)

Width

189 mm
(7.44 in)

Height

285.5 mm
(11.24 in)

Weight

25 kg
(55.1 lb)

Noise level

78 dB

Description

Description
The compact model 2567-P102 is engineered for continuous operation demanding reliable high pressure with low acoustic signature. This rotary vane compressor provides pulse-free flow and features a robust sealing system to deliver contaminant-free pressure. The 2567-P102 (1.5 HP) operates to a maximum continuous pressure of 15 PSI and delivers an open flow of 21 CFM (60 Hz).

Range and versatility
Models 2067 and 2567, including the 2567-P102, are designed for efficiency, versatility and long service life. With separate drive options, these rotary vane pump models can be used either as vacuum pumps or air compressors. They are compact and rugged and are available in lubricated or oil-free configurations to suit applications requiring high, pulse-free flow with constant, clean, contaminant-free air.

Typical applications
Suitable for applications requiring a high, stable flow or vacuum such as medical suction devices, soil remediation, laboratory processes (distillation, drying), and food & beverage packaging and transport.

Key features
  • Separate drive: Allows selection of the most suitable motor technology for the application's airflow requirements.
  • Oil-free or lubricated options: Maximizes applicability across different sectors.
  • Pulse-free flow: Provides a steady fluid stream without significant pressure fluctuations.
  • Low maintenance: Vanes and filters are easy to service to extend product life and maximize uptime.

Remarks
Designed for ultra-quiet, pulse-free operation with available lubricated or oil-free variants depending on application. Country of origin: United States.

Technical specifications
  • Reference: 2567-P102
  • Series: Rotary vane
  • Type: Vane compressors (separate drive)
  • Power: 1.5 HP
  • Open flow (60 Hz): 21 CFM (≈595 LPM)
  • Flow at maximum pressure (60 Hz): 17 CFM (≈481.4 LPM)
  • Maximum pressure: 15 PSI (≈1.03 bar)
  • Weight: 55 lb (≈25 kg)
  • Sound level: 78 dBA
  • Dimensions (standard): 11.48 L x 7.44 W x 11.24 H (291.6 x 189.0 x 285.5 mm)
  • Mounting dimensions: 3 L x 4.88 W (76.2 x 124.0 mm)
  • Phase: None
  • Country of origin: UNITED STATES
  • Additional options/features: Oil-free or lubricated operation, separate drive motor, ultra-quiet pulse-free design, easily serviceable vanes and filters.
