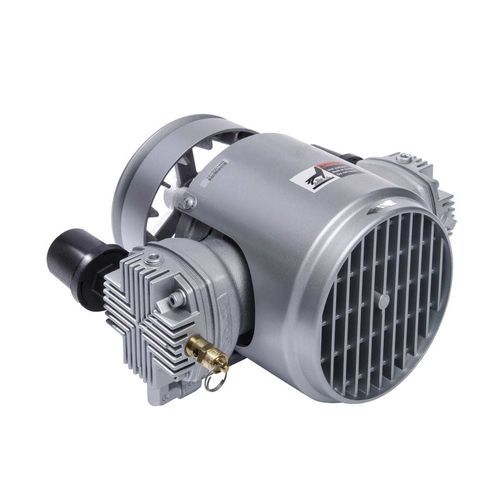

Piston compressor PCA-10

airelectrically-poweredstationary

Overview
Our tank-mounted twin-cylinder compressor (PCA-10) is designed to provide durability and long service life in demanding applications. The oil-free design delivers clean, contaminant-free compressed air. The 1.7 HP model (PCA-10) operates at a maximum continuous pressure of 125 PSI and provides an airflow of 6.1 CFM (60 Hz).

Product features
Robust twin-cylinder tank-mounted construction with a separate drive for greater flexibility. Corrosion-resistant internal components. Designed for high pressures and continuous duty. Suitable for applications such as cable pressurization, inflation, spraying, general industry, food & beverage, automotive and manufacturing.

Key benefits

• Oil-free and durable: robust construction providing clean, contaminant-free air.
• High-pressure capability: suitable for demanding, constant-pressure applications.
• Tank-mounted: tanks from 2 to 60 gallons available.
• Separate drive: facilitates customization and adaptation to different applications and power sources.

Additional information
The PCA-10 is a medium-size piston compressor offering a combination of flow and pressure for industrial and commercial applications. Its oil-free design minimizes air contamination and reduces maintenance associated with lubricants.

Technical specifications

• Reference: PCA-10
• Series: Piston
• Description: Piston compressors (tank-mounted, twin-cylinder)
• HP: 1.7
• Weight: 20 lb / 9 kg
• Open flow (60 Hz): 6.1 CFM (≈ 173 LPM)
• Flow at maximum pressure (60 Hz): 4.0 CFM (≈ 113.3 LPM)
• Maximum pressure: 125 PSI (≈ 8.62 bar)
• Noise level: 84 dBA
• Dimensions: 9.88 L x 10.86 W x 6.89 H (251.0 x 275.8 x 175.0 mm)
• Mounting dimensions: 2 L x 5 W (50.8 x 127.0 mm)
• Country of origin: United States
• Regulatory aspects: N/A
