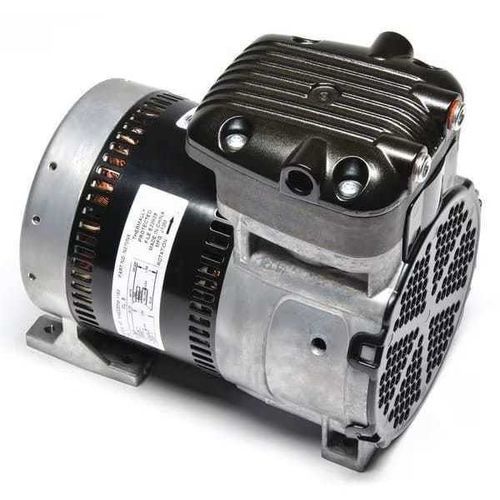

Piston compressor 87R

oscillatingairelectric

Overview
The 87R135-101-N270X is an oil-free oscillating piston compressor/vacuum pump engineered for quiet, long-life operation. It delivers clean, contaminant-free pressure or vacuum while operating at lower exhaust temperatures. Constructed from corrosion-resistant materials, it is suitable for continuous use in demanding environments.

Main features

• Versatile functionality: Operates as either an air compressor or a vacuum pump.
• Oil-free and corrosion-resistant: Provides clean, contaminant-free output suitable for sensitive applications.
• High-pressure performance: Patented crossover chamber regulates airflow to reduce noise and optimize performance.
• Sound Shield available: Reduces noise up to 25% in dB(A) and 40% in Sones without compromising performance.

Detailed description
The 87R series combines high-pressure capability with reduced acoustic output to meet industry requirements for precise and reliable air delivery. The unit maintains a steady, accurate flow and is designed for applications that require clean, controlled pressure or vacuum. The optional Sound Shield mounts easily to lower perceived noise while preserving service life and performance.

Typical applications

• Healthcare (medical devices requiring clean air)
• Food & beverage (preservation of sterility and product quality)
• Laboratories (precise, clean flow for analytical and process equipment)
• Sprinkler systems and other applications requiring controlled pressure/vacuum

Technical specifications

• Reference / SKU: 87R135-101-N270X
• Commercial name (series): 87R
• Series type: Oscillating piston
• Description: Oscillating piston compressors and pumps
• Power (HP): 0.25
• Phase: Single-phase
• Voltage: 100-120 / 200-240 V AC (50Hz/60Hz)
• Amps: 50Hz = 3.5 / 1.9 ; 60Hz = 2.6 / 1.4
• Free flow: 60Hz = 2.0 CFM (~57 LPM) ; 50Hz = 1.7 CFM (~48 LPM)
• Flow at max pressure: 60Hz = 0.7 CFM (~19.8 LPM) ; 50Hz = 0.55 CFM (~15.6 LPM)
• Maximum pressure: 100.0 PSI (~6.89 bar)
• Maximum vacuum: 26.7 in Hg
• Sound level: 65 dBA
• Weight: 15 lb (7 kg)
• Dimensions (L x W x H): 7.71 x 5.08 x 7.08 in (195.8 x 129.0 x 179.8 mm)
• Mounting dimensions: 6.5 x 3.5 in (165.1 x 88.9 mm)
• Flow at max pressure (standard): 0.7 CFM / 19.8 LPM (60Hz)
• Regulatory compliance: cURus
• Country of origin: United States
