Diaphragm compressor MOA-P101-AA
airelectrically-poweredportable

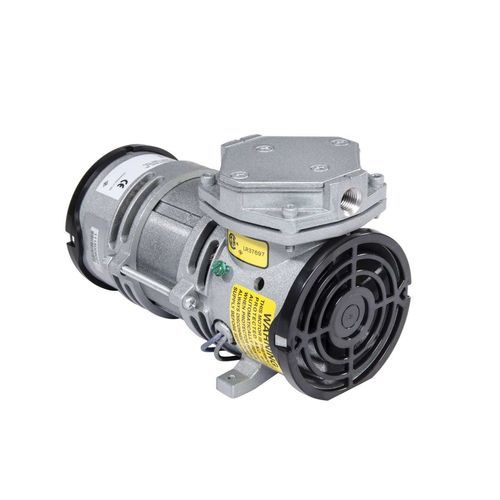

Diaphragm compressor - MOA-P101-AA - JUN-AIR - air / electrically-powered / portable
Diaphragm compressor - MOA-P101-AA - JUN-AIR - air / electrically-powered / portable
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Type
air
Power source
electrically-powered
Portability
portable
Lubrication
oil-free
Application domain
for medical applications, for food applications
Voltage
115 V
Other characteristics
compact, low-noise, electric, light
Pressure

3.45 bar
(50.04 psi)

Flow

0.08 m³/h
(2.83 ft³/h)

Power

0.04 kW
(0.05 hp)

Length

178.6 mm
(7.03 in)

Width

108.5 mm
(4.27 in)

Height

119.9 mm
(4.72 in)

Weight

2 kg
(4.4 lb)

Noise level

70 dB

Description

Presentation
The MOA-P101-AA is a compact, lightweight diaphragm compressor/pump designed to provide precise, low-noise gas handling for noise-sensitive applications and low-power systems. The unit delivers reliable, contaminant-free pressure and vacuum performance for demanding industrial and medical sampling tasks. The MOA-P101-AA (1/16 HP) operates at 115 V AC with a maximum continuous pressure of 50 PSI and an open-flow rate of 0.5 CFM.

Series overview
The MOA and MAA series are compact, oil-free diaphragm compressors and pumps that can operate as compressors or vacuum pumps. They tolerate incidental liquids, function at low temperatures, and use corrosion-resistant materials and air-tight construction to maintain clean, uncontaminated flow. Typical applications include medical devices, food & beverage equipment, and environmental monitoring systems.

Key features
  • Chemically resistant materials: high-performance thermoplastic (PPS) and EPDM elastomer for wetted components.
  • EMI suppression: protection for sensitive electronic systems.
  • Versatile operation: compressor or pump modes; available in bi-frequency, shaded-pole and PSC variants, and multi-voltage options for global installations.
  • Reliability: durable components and materials to reduce downtime and maintenance.

Technical characteristics / specifications
  • Reference: MOA-P101-AA
  • Series: Diaphragm
  • Type: Diaphragm compressors and pumps
  • HP: 0.06 (≈ 1/16 HP)
  • Amps (60 Hz): 2.1 A
  • Weight: 5.3 lb / 2 kg
  • Open flow (60 Hz): 0.5 CFM (≈ 14 LPM)
  • Voltage (60 Hz): 115 V AC
  • Regulatory: cURus
  • Maximum pressure: 50 PSI (≈ 3.45 bar)
  • Phase: Single-phase
  • Country of origin: UNITED STATES
  • Flow at max. pressure (60 Hz): 0.05 CFM (≈ 1.4 LPM)
  • Sound level: 70 dBA
  • Maximum vacuum: 24 in Hg
  • Dimensions (L x W x H): 7.03 in x 4.27 in x 4.72 in (178.6 mm x 108.5 mm x 119.9 mm)
  • Mounting dimensions: 4.09 in x 3.5 in (103.9 mm x 88.9 mm)
  • Recommended applications: medical devices, food & beverage, environmental monitoring, precise sampling and measurement
