Rocking piston compressor Rocking Piston
airACstationary

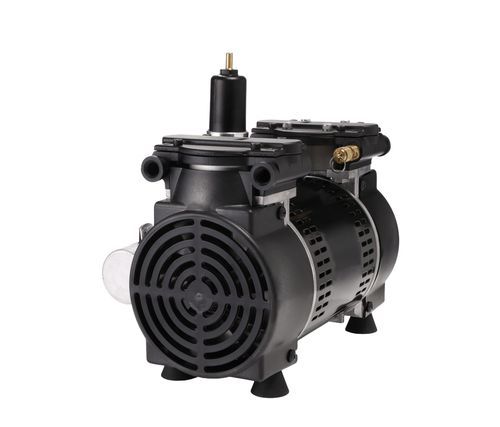

Rocking piston compressor - Rocking Piston - JUN-AIR - air / AC / stationary
Rocking piston compressor - Rocking Piston - JUN-AIR - air / AC / stationary
Rocking piston compressor - Rocking Piston - JUN-AIR - air / AC / stationary - image - 2
Rocking piston compressor - Rocking Piston - JUN-AIR - air / AC / stationary - image - 3
Rocking piston compressor - Rocking Piston - JUN-AIR - air / AC / stationary - image - 4
Rocking piston compressor - Rocking Piston - JUN-AIR - air / AC / stationary - image - 5
Rocking piston compressor - Rocking Piston - JUN-AIR - air / AC / stationary - image - 6
Rocking piston compressor - Rocking Piston - JUN-AIR - air / AC / stationary - image - 7
Add to favorites
Compare this product

Characteristics

Technology
rocking piston
Type
air
Power source
AC
Portability
stationary
Lubrication
oil-free
Application domain
for medical applications, for food applications, for scientific research
Voltage
220 V, 230 V, 115 V, 110 V
Other characteristics
compact, low-noise, light
Pressure

12.07 bar
(175.06 psi)

Flow

Min.: 2.8 m³/h
(98.88 ft³/h)

Max.: 3.31 m³/h
(116.89 ft³/h)

Power

0.56 kW
(0.76 hp)

Length

278.4 mm
(10.96 in)

Width

187.7 mm
(7.39 in)

Height

208 mm
(8.19 in)

Weight

7 kg
(15.4 lb)

Noise level

70 dB

Description

Overview
The 71R545-P315B-N570X is an oil-free rocking piston compressor engineered for quiet, low-vibration operation in noise-sensitive environments. Rated 0.75 HP, it operates on single-phase AC voltages and provides clean, contaminant-free compressed air with a maximum continuous pressure of 175.0 PSI and open flow up to 1.95 CFM (60 Hz).

Series Description
The 71R/72R twin-cylinder Rocking Piston series delivers reliable continuous-flow performance. Models are designed with corrosion-resistant materials and oil-free operation to ensure air purity while minimizing vibration and acoustic output, facilitating integration into laboratory, medical and food-processing equipment.

Applications
Suitable for applications requiring steady, clean air such as healthcare devices, food and beverage systems, laboratory instruments, analytical equipment and sprinkler or small pneumatic control systems.

Highlights
  • Quiet and low vibration: engineered for noise-sensitive installations
  • Corrosion-resistant and oil-free: delivers contaminant-free compressed air
  • Compact and lightweight: facilitates flexible installation and integration


Technical specifications
  • Item #: 71R545-P315B-N570X
  • Series: Rocking Piston (71R/72R)
  • Description: Rocking piston compressors, oil-free
  • Horsepower (HP): 0.75
  • Amps: 6.2 / 3.3 (50 Hz); 5.0 / 2.6 (60 Hz)
  • Weight: 16 lb (7 kg)
  • Open Flow: 1.65 CFM (50 Hz) / 1.95 CFM (60 Hz) — 47 LPM (50 Hz) / 55 LPM (60 Hz)
  • Voltage: 110-120/220-240 V (50 Hz); 115-120/230-240 V (60 Hz)
  • Regulatory: cURus
  • Max Pressure (continuous): 175 PSI (12.07 Bar)
  • Phase: Single phase
  • Flow @ Max Pressure: 1.19 CFM (50 Hz) / 1.44 CFM (60 Hz) — 33.7 LPM (50 Hz) / 40.8 LPM (60 Hz)
  • Sound Level: 70 dBA
  • Dimensions: 10.96 L x 7.39 W x 8.19 H in (278.4 x 187.7 x 208.0 mm)
  • Mounting Dimensions: 8.00 L x 3.50 W in (203.2 x 88.9 mm)
  • Design features: twin-cylinder, oil-free operation, corrosion-resistant materials, low vibration, compact/lightweight construction
  • Country of Origin: USA
