Rotary vane compressor 2033-101Aairmotorlessstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Type
- air
- Power source
- motorless
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- industrial, for dental applications, for food applications
- Other characteristics
- compact, low-noise, variable-speed, belt-driven
- Pressure
1.03 bar
(14.94 psi)
Description
Description

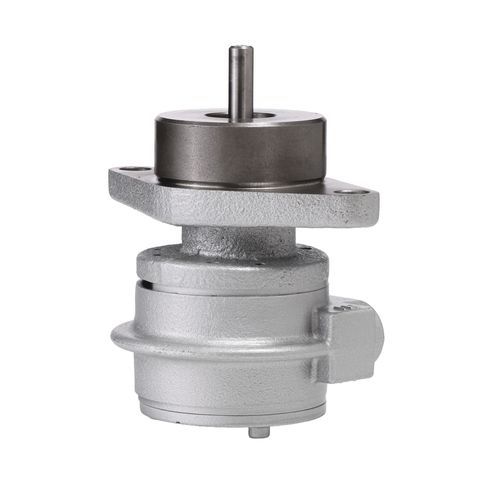

The compact 2033-101A rotary vane compressor is designed for continuous operation where higher pressure and low acoustic impact are required. Engineered for ultra-quiet, pulse-free performance, the unit features airtight sealing to deliver reliable, contaminant-free pressure. The compressor provides a maximum continuous pressure of 15 psi (1.03 bar) and delivers smooth, pulse-free airflow. The separate-drive, pulley-driven configuration allows selection of the most appropriate motor technology and variable operating speeds to match application requirements.
Features
Typical Applications
Product Series / Identity
Item #: 2033-101A
Series: Rotary Vane
Product Type: Rotary Vane Compressors (Separate Drive)
Technical specifications
The compact 2033-101A rotary vane compressor is designed for continuous operation where higher pressure and low acoustic impact are required. Engineered for ultra-quiet, pulse-free performance, the unit features airtight sealing to deliver reliable, contaminant-free pressure. The compressor provides a maximum continuous pressure of 15 psi (1.03 bar) and delivers smooth, pulse-free airflow. The separate-drive, pulley-driven configuration allows selection of the most appropriate motor technology and variable operating speeds to match application requirements.
Features
- Pulley-Driven: Enables multiple operating speeds for application-specific selection and cooler operation.
- Separate Drive: Permits choice of motor technology to meet required airflow and control strategies.
- Oil-Free Operation: Provides contaminant-free compressed air suitable for sensitive processes.
- Pulse-Free: Delivers continuous, stable airflow with minimal pressure fluctuation.
Typical Applications
- Painting
- Sandblasting
- Tire inflation
- Powering pneumatic tools
- Dental equipment
- Food processing
Product Series / Identity
Item #: 2033-101A
Series: Rotary Vane
Product Type: Rotary Vane Compressors (Separate Drive)
Technical specifications
- Item #: 2033-101A
- Series: Rotary Vane
- Description: Rotary Vane Compressors (Separate Drive)
- Max Pressure: 15 psi (1.03 Bar)
- Operation: Oil-free
- Drive: Separate drive, pulley-driven for variable speeds
- Flow: Engineered for high flow, pulse-free air (specific CFM varies by configuration)
- Designed for: Continuous use, higher pressure in noise-sensitive environments
- Regulatory: N/A
- Country of Origin: USA
