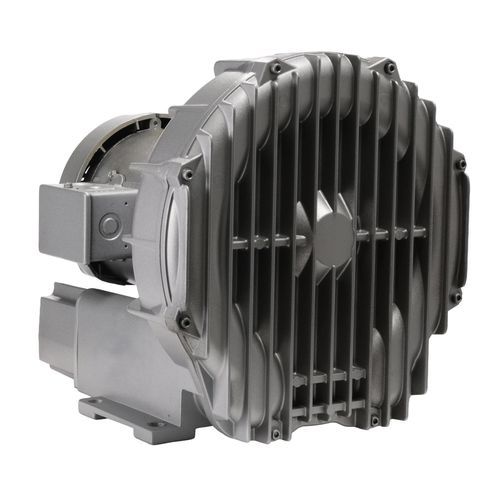

Air blower R4110-2
side-channelfor vacuumconveying

Air blower - R4110-2 - JUN-AIR - side-channel / for vacuum / conveying
Air blower - R4110-2 - JUN-AIR - side-channel / for vacuum / conveying
Air blower - R4110-2 - JUN-AIR - side-channel / for vacuum / conveying - image - 2
Air blower - R4110-2 - JUN-AIR - side-channel / for vacuum / conveying - image - 3
Air blower - R4110-2 - JUN-AIR - side-channel / for vacuum / conveying - image - 4
Air blower - R4110-2 - JUN-AIR - side-channel / for vacuum / conveying - image - 5
Air blower - R4110-2 - JUN-AIR - side-channel / for vacuum / conveying - image - 6
Add to favorites
Compare this product

Characteristics

Type
air
Technology
side-channel
Applications
for vacuum, conveying, for food, chemical process
Voltage / frequency
230V / 50Hz, 100-240 V
Norms
UL, CSA
Other characteristics
oil-free, compact, aluminium, small, single-phase, explosion-proof
Flow

122.34 m³/h, 156.3 m³/h
(4,320.396 ft³/h, 5,519.682 ft³/h)

Operating pressure

2,952.6 mbar
(42.824 psi)

Nominal power

0.746 kW
(1.014 hp)

Sound level

68 dB

Weight

19 kg
(41.89 lb)

Length

325.6 mm
(12.82 in)

Depth

285.8 mm
(11.3 in)

Height

297.2 mm
(11.7 in)

Description

Overview
The compact single-phase regenerative blower R4110-2 (series R4-RP4) delivers continuous, oil-free air flow for pressure or vacuum applications. Built with corrosion-resistant aluminium components and sealed ball bearings, the unit is suitable for industrial processes requiring clean compressed air or vacuum with low noise levels.

Detailed description
The R4110-2 functions as a compact, lightweight regenerative blower or vacuum pump. It features an oil-free design, aluminium housing, wheel and cover, and integrated sealed ball bearings for quiet operation. Available options include explosion-proof motors, thermal protection and double-sealed bearings.

Applications and benefits
  • Industrial uses: pneumatic conveying, aeration, chemical processing, food industry, aquaculture.
  • Oil-free operation — air flow free of oil contaminants.
  • Corrosion-resistant construction for extended service life in demanding environments.
  • Compact and lightweight — simplified integration where space is limited.

Key features
  • Thermal protection: Protects the motor from overloads and locked-rotor conditions.
  • Standard motor-mounted models: UL/CSA-certified motors with lubricated sealed ball bearings and integrated silencers.
  • Explosion-proof motor options: UL/CSA-certified explosion-proof motors, thermal protection, double-sealed ball bearings (B10 > 30,000 h).
  • Corrosion-resistant components: Aluminium housing, wheel and cover for extended uptime.

Specifications
  • Reference / Model: R4110-2
  • Series: Small regenerative blowers
  • Type: Oil-free regenerative blower (can operate as vacuum pump or blower)
  • Power (HP): 1 HP
  • Phase: Single-phase
  • Voltage: 60 Hz — 115 / 208-230 V; 50 Hz — 110 / 220-240 V
  • Current (A): 60 Hz — 9.8 / 5.2-4.9 A; 50 Hz — 9.0 / 4.5-5.7 A
  • Free flow: 60 Hz — 92 CFM (≈ 2605 LPM); 50 Hz — 72 CFM (≈ 2039 LPM)
  • Maximum continuous pressure: 52 in H₂O (declared value for this model)
  • Maximum vacuum: N/A (see product datasheet)
  • Weight: 41 lb (19 kg)
  • Sound level: 68 dBA
  • Dimensions (L x W x H): 12.82 x 11.25 x 11.7 in (325.6 x 285.8 x 297.2 mm)
  • Mounting dimensions: 3.75 x 8.86 in (95.3 x 225.0 mm)
  • Certifications / Compliance: CSA
  • Country of origin: United States
  • Available options: Explosion-proof motors, thermal protection, double-sealed bearings, integrated silencers
