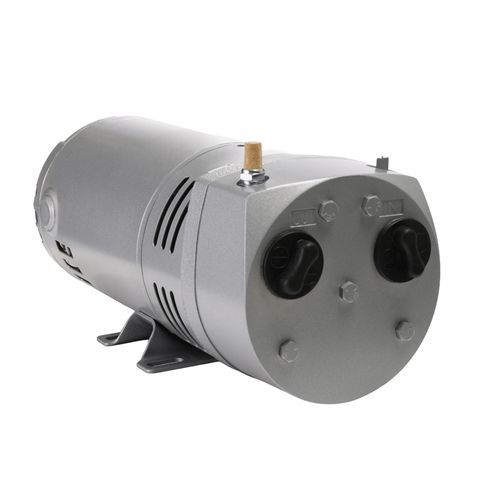

Rotary vane compressor airelectricfixed
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Type
- air
- Power source
- electric
- Portability
- fixed
- Applications
- laboratory, for packaging
- Voltage
- 220 V, 230 V, 115 V, 110 V
- Other characteristics
- low-noise
- Pressure
0.69 bar
(10.01 psi)- Flow
Max.: 7.65 m³/h
(270.16 ft³/h)Min.: 6.8 m³/h
(240.14 ft³/h)- Power
0.19 kW
(0.26 hp)- Length
298 mm
(11.73 in)- Width
143 mm
(5.63 in)- Height
148 mm
(5.83 in)- Weight
14.5 kg
(32 lb)- Noise level
70 dB
Description
Presentation
Main information
Characteristics / technical specifications
Applications and maintenance
- Compressor and rotary vane pump (motor-mounted) by Gast Manufacturing
- Product reference: 0523-101-G588NDX
- Series: Rotary Vane series
Main information
- Technology: rotary vane
- Mounting: motor-mounted
- Available for 50 Hz and 60 Hz supplies (see technical specifications)
Characteristics / technical specifications
- Power: 0.25 HP
- Open flow: 50 Hz = 4 CFM (≈113 LPM); 60 Hz = 4.5 CFM (≈127 LPM)
- Maximum pressure: 10 PSI (≈0.69 bar)
- Maximum vacuum: 26 in Hg
- Current (Amps): 50 Hz = 4.4 / 2.5 A; 60 Hz = 4.4 / 2.2 A
- Voltage: 50 Hz = 110 / 220-240 V; 60 Hz = 115 / 220-230 V
- Noise level: <70 dBA
Applications and maintenance
- Suitable for light pneumatic applications, vacuum hold, laboratory equipment, packaging and small-scale process lines
- Follow Gast Manufacturing maintenance instructions: check lubrication, inlet filtration and service intervals
- Contact supplier for accessories, spare parts and alternative motor or mounting options
