Diaphragm compressor 10D-15D-22D
airDCstationary

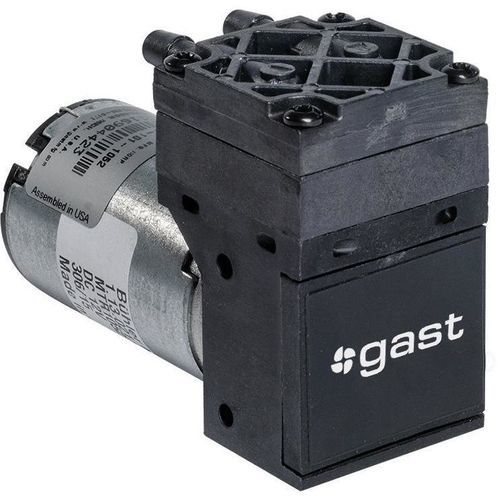

Diaphragm compressor - 10D-15D-22D - JUN-AIR - air / DC / stationary
Diaphragm compressor - 10D-15D-22D - JUN-AIR - air / DC / stationary
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Type
air
Power source
DC
Portability
stationary
Lubrication
oil-free
Application domain
for medical applications, for food applications
Applications
for medical devices, for sensors
Voltage
24VDC, 12 VDC
Other characteristics
compact, low-noise, electric, light
Pressure

16 psi, 17 psi, 25 psi, 30 psi

Flow

0.2 m³/h
(7.06 ft³/h)

Power

0.07 kW, 0.1 kW
(0.1 hp, 0.14 hp)

Length

67.1 mm
(2.64 in)

Width

32 mm
(1.26 in)

Height

53.6 mm
(2.11 in)

Weight

0.2 kg
(0.4 lb)

Noise level

55 dB, 65 dB, 70 dB

Description

Overview
Compact single-cylinder diaphragm compressor/pump 10D1126-401-7048B designed for low-noise, low-power industrial applications. Available in 12 V and 24 V DC variants; typical performance (24 V DC): 0.01 HP, 0.3 A, open flow 0.12 CFM (3.4 LPM), maximum continuous pressure 17 PSI and max vacuum 17 in Hg.

Detailed product description
Models 10D, 15D and 22D are miniature single-cylinder diaphragm units serving as compressors and vacuum pumps. They tolerate incidental liquid exposure, operate in low-temperature conditions, and are built for oil-free, contaminant-free air delivery. Construction uses corrosion-resistant materials to ensure long service life and consistent sealing performance.

Typical applications
Suitable for medical devices, food & beverage systems, environmental monitoring and other industrial processes requiring precise fluid handling, sampling or pressure/vacuum control.

Key features
  • Chemically resistant materials: High-performance thermoplastic (PPS) and synthetic rubber (EPDM) at fluid-contacting components for resistance to chemicals, heat and corrosion.
  • EMI suppression: Protection for sensitive electronics against electromagnetic interference.
  • Multi-function capability: Operates as compressor or pump; available in shaded-pole, PSC, dual-frequency and multi-voltage variants for global use.
  • Reliable construction: Durable components and sealing ensure stable performance and reduced maintenance.

Technical specifications
  • Reference: 10D1126-401-7048B
  • Series: Diaphragm
  • Type: Diaphragm compressor / vacuum pump
  • Power: 0.01 HP
  • Current: DC 0.3 A
  • Weight: 0.34 lb (≈0.15 kg)
  • Open flow: 0.12 CFM (DC) / 3.4 LPM (DC)
  • Voltage: DC 12 or 24 V (variant-dependent; sheet shows 12 V)
  • Regulatory: CE
  • Max. pressure: 17 PSI (≈1.17 bar)
  • Noise level: 55 dBA
  • Max. vacuum: 17 in Hg
  • Dimensions (L x W x H): 2.64 x 1.26 x 2.11 in / 67.1 x 32.0 x 53.6 mm
  • Mounting width: 0.96 in / 24.4 mm
  • Recommended sectors: Medical, Food & Beverage, Environmental monitoring, Industrial fluid control
