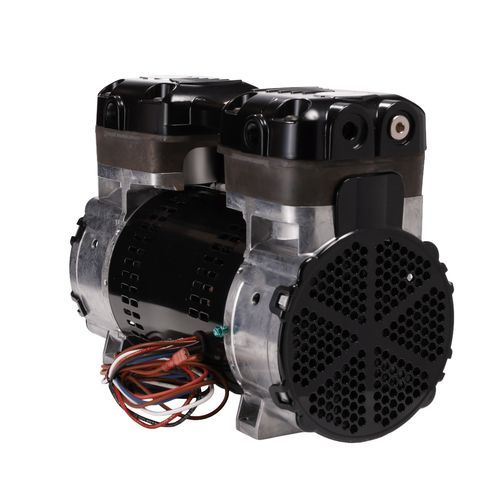

Piston compressor 106R550-102-N600X

oscillatingrocking pistonair

Overview
Oscillating piston compressor/pump from Gast Manufacturing. Reference 106R550-102-N600X, rocking piston series. Product shown on the product references page with image gallery and associated datasheet.

General information

• Product reference: 106R550-102-N600X
• Series: oscillating piston (rocking piston)

Features / technical specifications

• HP: 0.75
• Current (Amps): 50 Hz: 3.8; 60 Hz: 7.4 / 3.8
• Weight: Standard: 30; Metric: 14
• Flow (CFM) - Standard: 50 Hz: 2.3; 60 Hz: 2.7
• Flow (L/min) - Metric: 50 Hz: 65; 60 Hz: 76
• Voltage / Volts: 50 Hz: 220-230; 60 Hz: 115-120 / 230-240
• Max pressure (PSI): 175
• Max pressure (Bar): 12.07
• Max flow (Standard): 50 Hz: 1.6 CFM; 60 Hz: 1.8 CFM
• Max flow (Metric): 50 Hz: 45.3 L/min; 60 Hz: 51.0 L/min
• Sound level: 66 dBA
• Other datasheet fields (regulatory, phase, mounting, max vacuum, max torque, dimensions): not specified on the page
