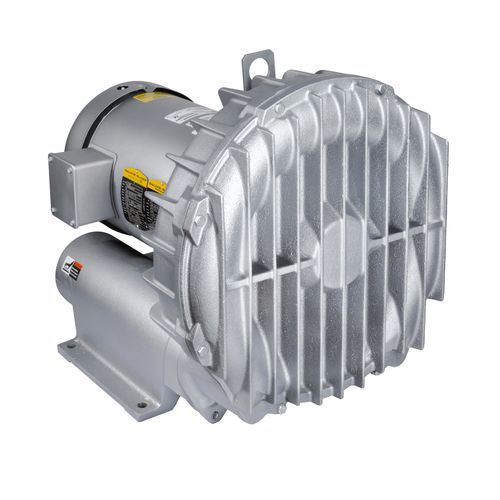

Single-stage air vacuum blower R7100A-3

Description The 1-stage motor-mounted R7100A-3 is a 10 HP regenerative blower engineered for high-volume vacuum and compressed-air applications. Oil-free and built with corrosion‑resistant aluminum components, it provides contaminant-free pressure or vacuum. The unit operates at 190-220/380-415 V AC (50 Hz) and delivers a maximum continuous pressure of 125 in. H2O with open flow up to 425 CFM.

Highlights

• Thermal protection: Thermal overload protection to safeguard motor windings in stall conditions.
• Standard motor-mounted models: UL and CSA approved motors with sealed ball bearings (polyurea grease) and integrated mufflers for noise reduction.
• Explosion‑proof motor series (option): UL/CSA explosion‑proof motors with thermal protection, double‑sealed ball bearings (B10 life > 30,000 hours) and leak‑tested sealed air streams < 5 cc/min.
• Corrosion‑resistant components: Aluminum blower housing, impeller and cover to extend service life and uptime.

Applications

• Pneumatic conveying
• Aeration and aquaculture
• Chemical processing and transfer
• Industrial vacuum and compressed-air systems

Technical specifications

• Series: Regenerative Blowers
• Denomination: Regenerative Blowers (Large)
• Model (commercial name): R7100A-3
• HP: 10
• Phase: Three Phase
• Voltage: 50Hz: 190-220/380-415 V; 60Hz: 208-230/460 V
• Amps: 50Hz: 24.2-24.6 / 12.1-12.0; 60Hz: 25.8-24.6 / 12.3
• Open Flow (no-load): 50Hz: 350 CFM (9911 LPM); 60Hz: 425 CFM (12035 LPM)
• Flow @ Max Pressure: 50Hz: 150 CFM (4247.5 LPM); 60Hz: 200 CFM (5663.4 LPM)
• Flow @ Max Vacuum: 50Hz: 105 CFM (2973.3 LPM); 60Hz: 125 CFM (3539.6 LPM)
• Max continuous pressure: 125 in. H2O
• Max Pressure (psi): N/A
• Max Vacuum (in Hg): N/A
• Sound Level: 78 dBA
• Weight: 321 lb (146 kg)
• Dimensions (in/mm): 22.32 L x 18 W x 20.02 H in (566.9 L x 457.2 W x 508.5 H mm)
• Mounting Dimensions: 8.5 L x 14.76 W in (215.9 x 374.9 mm)
• Regulatory: CE
• Country of Origin (COO): USA
