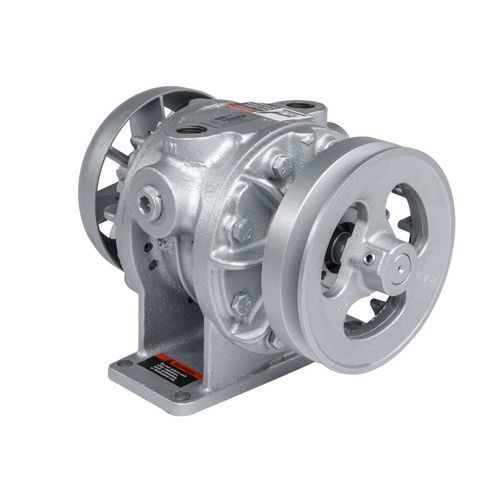

Rotary vane compressor 1550-600
airmotorlessstationary

Rotary vane compressor - 1550-600 - JUN-AIR - air / motorless / stationary
Rotary vane compressor - 1550-600 - JUN-AIR - air / motorless / stationary
Add to favorites
Compare this product

Characteristics

Technology
rotary vane
Type
air
Power source
motorless
Portability
stationary
Lubrication
oil-free
Applications
for power tools
Other characteristics
low-noise, variable-speed
Pressure

Max.: 1.03 bar
(14.94 psi)

Min.: -0.68 bar
(-9.86 psi)

Flow

Max.: 25.49 m³/h
(900.17 ft³/h)

Min.: 18.69 m³/h
(660.03 ft³/h)

Power

1.12 kW
(1.52 hp)

Length

254 mm
(10 in)

Width

177.8 mm
(7 in)

Height

164.1 mm
(6.46 in)

Weight

15 kg
(33.1 lb)

Noise level

82 dB

Description

Overview
The compact 1550-600 is engineered for continuous operation where high pressure or vacuum and low acoustic signature are required. This oil-free rotary vane compressor/pump delivers pulse-free flow and a sealed output suitable for applications demanding contaminant-free air. The 1550-600 (1.5 HP) operates up to 15 PSI continuous pressure, up to 20 in HG vacuum and provides 15 CFM (60 Hz).

Detailed description
The 1550-600 belongs to a series of rotary vane units with a separate pulley drive, enabling variable operating speeds and choice of motor technology best suited to the application. It provides high, steady airflow without pulsation, ideal for processes requiring clean, continuous air such as painting, sandblasting, tire inflation, pneumatic tool supply, dental equipment and food industry uses.

Key features
  • Pulley drive: Allows variation of operating speeds for greater flexibility.
  • Separate drive: Enables selection of the most appropriate motor technology for the required airflow.
  • Oil-free operation: Ensures air is free of oil contaminants.
  • Pulse-free delivery: Provides continuous flow without significant pressure fluctuations.

Regulatory information and origin
Prop 65 statement: Some products may contain substances identified by the State of California as known to cause cancer or reproductive harm.
Country of origin: United States

Recommended use
Designed for continuous-duty operations requiring elevated pressure or vacuum levels and for noise-sensitive environments. Can be configured as an air compressor or a vacuum pump depending on drive arrangement.

Technical specifications
  • Model: 1550-600
  • Series: Rotary vane
  • Type: Separate-drive vane compressors and pumps
  • Power (HP): 1.5
  • Weight: 33 lb (15 kg)
  • Free flow (60 Hz): 15 CFM (425 LPM)
  • Maximum pressure: 15 PSI (1.03 bar)
  • Flow at max pressure (60 Hz): 11 CFM (311.5 LPM)
  • Sound level: 82 dBA
  • Maximum vacuum: 20 in HG
  • Operation: Oil-free
  • Phase: None (separate drive, pulley)
  • Country of origin: United States
  • Dimensions (L x W x H): 10 in x 7 in x 6.46 in (254.0 x 177.8 x 164.1 mm)
  • Mounting dimensions: 2.25 in x 6.25 in (57.2 x 158.8 mm)
