Rocking piston compressor 86R series
airelectricstationary

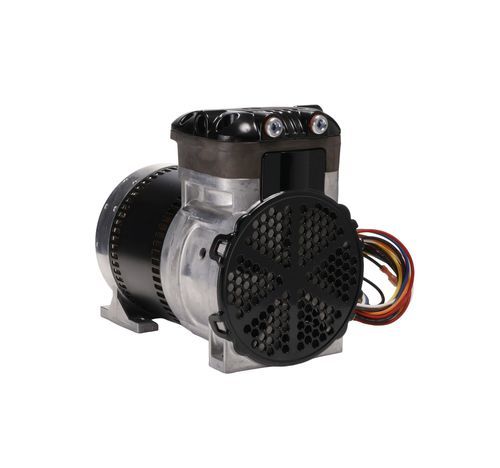

Rocking piston compressor - 86R series - JUN-AIR - air / electric / stationary
Rocking piston compressor - 86R series - JUN-AIR - air / electric / stationary
Add to favorites
Compare this product

Characteristics

Technology
rocking piston
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-free
Application domain
for medical applications, for food applications
Other characteristics
compact, low-noise, light
Pressure

8.62 bar
(125.02 psi)

Flow

Max.: 1.86 m³/h
(65.69 ft³/h)

Min.: 0.15 m³/h
(5.3 ft³/h)

Power

0.1 kW
(0.14 hp)

Length

195.8 mm
(7.71 in)

Width

127 mm
(5 in)

Height

179.8 mm
(7.08 in)

Weight

7 kg
(15.4 lb)

Noise level

65 dB

Description

Product Description
The 86R123-101-N170X is an oil-free rocking piston compressor/pump engineered for clean, contaminant-free pressure or vacuum delivery in compact, low-power applications. It operates quietly with minimal vibration and is available with an optional Sound Shield for significant acoustic reduction while maintaining performance. Designed for 100–120 / 200–240 V AC operation and optimized for lower exhaust temperatures to extend service life.

Key Features & Benefits
  • Dual functionality: Can be used as an air compressor or vacuum pump to support versatile system designs.
  • Oil-free, corrosion-resistant construction: Delivers clean air and vacuum suitable for noise- and contamination-sensitive environments.
  • High-pressure capability: Rated to 125 PSI with design elements that regulate flow and dampen noise.
  • Sound Shield option: Reduces measured dB(A) by up to 25% and perceived loudness (Sones) by up to 40% without affecting airflow or pressure performance.

Applications
Recommended for medical devices, laboratory equipment, food & beverage systems, instrumentation, small pneumatic assemblies and sprinkler/irrigation controls where low noise, clean air and reliable delivery are required.

Additional Notes
Re-engineered components reduce exhaust temperature for improved longevity. The unit is compact and lightweight for easy integration; materials and design support continuous duty within specified electrical and pressure limits. Regulatory recognition: cURus. Country of origin: USA.

Specifications
  • Item #: 86R123-101-N170X
  • Manufacturer: Gast
  • Series: 86R series (Rocking Piston)
  • Product type: Rocking piston compressor / pump (oil-free)
  • Horsepower: 0.13 HP (0.125 HP referenced)
  • Voltage: 100-120 / 200-240 V AC (50/60 Hz)
  • Current (Amps): 50 Hz: 1.7 / 0.09 ; 60 Hz: 1.4 / 0.08
  • Open flow (no load): 50 Hz: 0.94 CFM (27 LPM) ; 60 Hz: 1.1 CFM (31 LPM)
  • Flow @ max pressure: 50 Hz: 0.09 CFM (2.5 LPM) ; 60 Hz: 0.11 CFM (3.1 LPM)
  • Max pressure: 125 PSI (8.62 Bar)
  • Max vacuum: 26 in Hg
  • Sound level: 65 dB(A) (base); Sound Shield reduces dB(A) up to 25% / Sones up to 40%
  • Phase: Single-phase
  • Weight: 15 lb (7 kg)
  • Dimensions (L x W x H): 7.71 in x 5.00 in x 7.08 in (195.8 mm x 127.0 mm x 179.8 mm)
  • Mounting dimensions: 6.5 in L x 3.5 in W (165.1 mm x 88.9 mm)
  • Regulatory: cURus
  • Country of origin: USA
