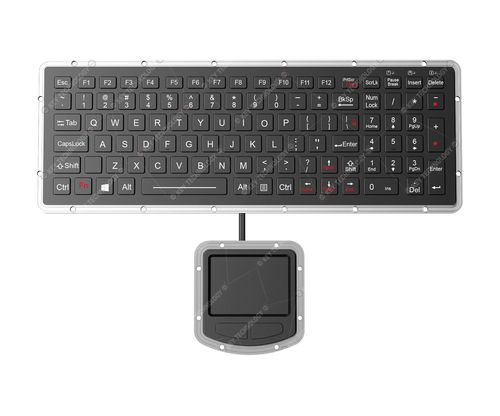

Panel-mount keyboard K-TEK-M327KP-FN-BL-NV-151B-DWP+M73TP

with mechanical keys101-keywith 2 mouse keys

101 keys IP65 dynamic water proof vandal proof ultra thin military chiclet keyboard with durable polymer keys and combine with compact sealed touchpad with 2 mouse buttons for left/right clicking. 12 function keys F1, F2, ... F12 are on the top of keyboard and numerical keypad are on the right part of keyboard. The whole keyboard is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as integrated military grade PCB, carbon-on-gold key switch technology with (1.20±0.10mm) key travel with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounted with mounting holes, adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimension: Keyboard: 327.0mm x 111.0mm (L x W), Touchpad: 73.0mm x 76.0mm (L x W)

1. Product Overview
- 101-key ultra-thin military chiclet keyboard, IP65 dynamic waterproof and IK09 vandal-proof
- Integrated compact sealed rugged touchpad with 2 mouse buttons for left/right click control
- Equipped with 12 F1–F12 function keys and independent right numeric keypad for efficient operation
- CNC aluminum alloy front panel + PC keycaps + military integrated PCB for rugged durability
- Adopts carbon-on-gold key switch technology, 1.20mm±0.10mm key travel, silent typing with excellent tactile feedback
- Anti-microbial & high-strength coated surface, resistant to chemicals, oil, liquid and contaminants
- Rear panel reserved mounting holes, supports rear embedded installation
- Adjustable white backlight, suitable for dark and low-light working scenarios
- FN + Clean lock function, support in-place cleaning to avoid misoperation and typos
- Wide temperature design, suitable for outdoor rain, high humidity, salt mist and other harsh environments
- Fully compliant with MIL-STD-461G (EMC/EMI/EMS/ESD) and MIL-STD-810H military specifications
- Meet 10 core military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency and continuity
- Dimensions: Keyboard 327.0mm × 111.0mm (L×W); Touchpad 73.0mm × 76.0mm (L×W)

2. Mechanical Data
- Key Configuration: 101 keys + 2 mouse buttons, high-strength durable polymer keys
- Key Style: Raised rectangular tactile keys
- Core Technology: Military PCB with carbon-on-gold key switch technology
- Key Size: FN key 14.0mm×10.0mm; Normal key 14.0mm×14.0mm
- Key Travel: 1.20mm±0.10mm
- Actuation Force: 1.0N±0.2N (normal keys); 1.5N±0.2N (Enter / Backspace / Shift / Capslock / Tab keys)
- Touchpad: Sealed rugged high-strength touchpad, composite cover
- Touchpad Lifespan: Over 10 million strokes
- Sensing Mode: Mutual capacitance sensing
- Positioning Resolution: 40 Counts/mm
- Position Output: Relative mode
- Maximum Tracking Speed: 1,016 mm/sec
- Touchpad Voltage: 5VDC ± 0.25V
- Touchpad Working Current: 10mA
- Gross Weight: ≈1.20KGs

3. Electrical Data
- Supply Voltage: DC +5V±5%
- Working Current: 50mA (backlight off); 300mA (backlight on)
- EMC Standard: Fully compliant with MIL-STD-461G (CE101/CE102/CS101/CS106/CS112/CS114/CS115/CS116/RE101/RE102/RS101/RS103)
- Service Lifespan: 5 years
- Interface: USB / PS2 optional
- System Compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android (U-cos to be confirmed)

4. Environmental Adaptability
- Operating Temperature: -40℃ ~ +75℃
- Storage Temperature: -45℃ ~ +85℃
- Salt Mist Resistance: 96 hours (IEC60512-6)
- Damp Heat Test: 21 days @ +40℃ (IEC 60512-6)
- Dry Heat Test: 10 days @ +85℃ (IEC 60512-6)
- Operating Humidity: 30%~95% RH
- Atmospheric Pressure: 60–106Kpa

5. Reliability & Certification
- Protection Level: IP65 dynamic (front panel)
- Vandal Grade: IK09
- Certifications: RoHS, CE, FCC
- Military Standards: MIL-STD-461G, MIL-STD-810H
- Key Lifespan: 5 million actuations
- MTBF: 20000H
- MTTR: 30min

6. Application Scope
- Applicable Fields: Vehicle, aerospace, naval, defense, maritime, radar system
- Applicable Equipment: Industrial control console, portable rugged laptop, UAV ground station
- Applicable Environments: Ultra-thin embedded military scenarios, harsh industrial environments (high humidity, salt mist, rain, dust, etc.)
