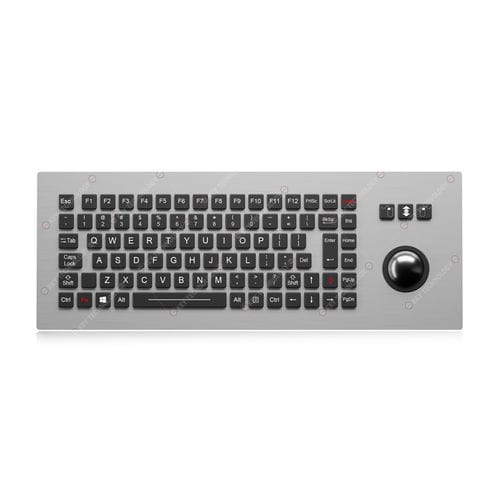

Panel-mount keyboard K-TEK-M390-MTB-FN-BL-NV-151B-DWP

with mechanical keyswith 3 mouse keys92-key

92 keys(Including 3 mouse buttons) IP65 dynamic sealed and rugged compact chiclet military keyboard with durable polymer keys. With military IP65 static 38.0mm black harden resin mechanical trackball module(stainless steel trackball is optional)in 400-1000 DPI resolutions for fast and accurate cursor movement. 12 function keys F1, F2, ... F12 are on the top line of keyboard. It is made of stainless steel front plate + PC keycaps + military grade PCB, Carbon-on-gold key switch technology with stroke(1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, FN +CLEAN combination keys to lock/disable keyboard for easy cleaning without taking away the keyboard from PC. Adjustable backlight included (Red or white).Stainless steel front plate with sealing gasket and threaded bolts for top panel mounting solution.Aviation plug or USB interface optional. It is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil, dirt, salt mist etc. The whole keyboard and trackball part can meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration,shock, temperature shock, rain,dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency and continuity.

92 Keys IP65 Rugged Compact Military Chiclet Keyboard with 38mm Trackball
1. Product Overview
This is a 92-key IP65 dynamic sealed compact military chiclet keyboard, equipped with 3 mouse buttons and a high-performance 38mm IP65 static mechanical trackball. The trackball adopts hardened resin material (stainless steel optional) with adjustable 400–1000 DPI, delivering precise and flexible cursor control.
It features 12 top-row function keys and is built with full brushed stainless steel front & rear plates, durable polymer PC keycaps, and military-grade PCB with carbon-on-gold key switch technology. 1.20mm standard key travel provides outstanding tactile feedback, quiet typing and error-free data input.
With FN+CLEAN lock function, the keyboard can be safely cleaned on-site without disconnection. Optional red/white adjustable backlight ensures clear operation in dark environments. Sealing gasket plus threaded bolts support reliable top panel mounting. Interface options include USB or aviation plug for military and industrial integration.
Fully certified to MIL-STD-461G (full EMC/EMI/EMS/ESD) and MIL-STD-810H, it withstands direct rain, high humidity, oil, dirt, salt mist, vibration and extreme temperature. It satisfies 10 core military reliability standards for mission-critical harsh environment deployment.

2. Key Features
IP65 dynamic sealing + IK09 vandal-proof, waterproof, dustproof, oil & salt mist resistant
Full stainless steel construction (front & rear plate), ultra-high impact and corrosion resistance
Integrated 38mm sealed mechanical trackball + 3 mouse buttons; 400–1000 DPI adjustable
92-key compact layout with F1–F12 function keys for multi-scenario operation
Military PCB + carbon-on-gold switches, 5+ million keystroke lifespan
1.20mm key travel, comfortable tactile feeling, silent and accurate input
FN+CLEAN keyboard lock: convenient in-situ cleaning, prevent mis-operation
Optional red / white adjustable backlight
Top panel mounting with sealing gasket and threaded bolts for tight cabinet sealing
Dual interface: USB / aviation plug optional, custom cable length available
Strict military EMC and environmental compliance for defense, aerospace and marine use

3. Mechanical Data
Key Quantity: 92 keys (including 3 mouse buttons)
Key Switch: Carbon-on-gold contact technology
Key Travel: 1.20mm ± 0.10mm
Key Size:
Normal key: 14.0×14.0mm
Enter key: 14.0×28.0mm
Space bar: 14.0×68.2mm
Actuation Force:
Standard key: 1.0N ± 0.2N
Long key: 2.0N ± 0.20N
Switch Lifespan: ≥ 5 million operations
Trackball: 38mm IP65 static mechanical module, hardened resin / optional stainless steel
Trackball Resolution: 400~1000 DPI
Panel Material: Brushed stainless steel (front & back)
Gross Weight: 2.5KGs
Front Panel Dimension: 390.0mm × 145.0mm

4. Electrical & Military EMC Specifications
Supply Voltage: DC +5V ± 5%
Working Current:
Backlight off: 50mA
Backlight on: 300mA
Interface: USB / Aviation plug optional
Standard Cable Length: 1.5m / 2.0m, customizable
OS Compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android
Service Lifespan: 5 years
MIL-STD-461G Full Compliance
CE101, CE102, CS101, CS106, CS112, CS114, CS115, CS116
RE101, RE102, RS101, RS103
Covers conducted/radiated emission & susceptibility, ESD and transient protection

5. Environmental Adaptability
Operating Temperature: -45℃ ~ +60℃
Storage Temperature: -50℃ ~ +65℃
Operating Humidity: Up to 100% RH
Atmospheric Pressure: 60–106Kpa
Salt Mist Test: 96 hours (IEC 60512-6)
Damp Heat Endurance: 21 days @ +40℃
Dry Heat Endurance: 10 days @ +85℃

6. Reliability & Certification
Protection Level: IP65 (dynamic front panel)
Vandal Resistance: IK09
Certifications: RoHS, CE, FCC
Military Standards: MIL-STD-461G, MIL-STD-810H
Key Lifespan: 5 million actuations
MTBF: 20000 hours
MTTR: 30 minutes
10 Military Core Criteria: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, continuity

7. Application
Military vehicles, aerospace, naval & marine vessels, defense systems, radar equipment, industrial control consoles, rugged laptops, UAV ground control stations, outdoor field operations, and extreme environments with rain, dust, oil, high humidity and salt corrosion.
