Panel-mount keyboard K-TEK-M327KP-FN-BL-IT-ML-DWP
with mechanical keyswith Fn key101-key

panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with Fn key, 101-key
Pointing device
without pointing device
Domain
control panel, for military applications, for marine applications, for aerospace applications
Material
aluminum alloy, polymer
Protection level
rugged, waterproof, vandal-proof, rugged, robust, MIL-STD 810F, IP65
Other characteristics
compact, custom, backlit, with numeric keypad, USB, PS2

Description

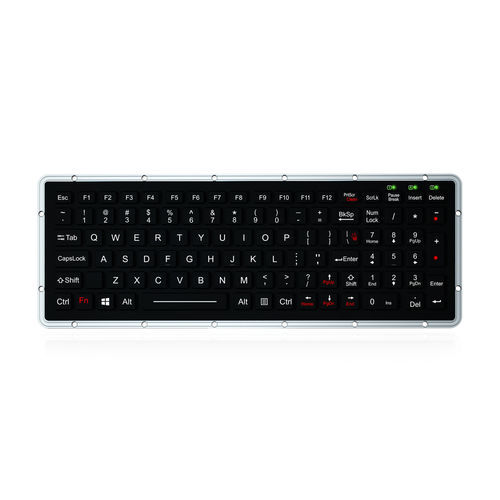

101 keys IP65 dynamic water proof vandal proof rugged chiclet keyboard with durable polymer keys, with 12 function keys F1, F2, ... F12, and individual numeric keypad on the right part, the whole keyboard is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as integrated military grade PCB, carbon-on-gold key switch technology with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounted with mounting holes, adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing. Designed to meets MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.). Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Rear panel mount solution c. Categories: Chiclet keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Backlight: White g. Key Switch: Carbon-on-gold key switch technology. h. Dimension: 327.0mm x 111.0mm (L X W) i. Working Temperature: -40℃ to +75℃ Lead-time: ASAP 2-3 weeks Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
