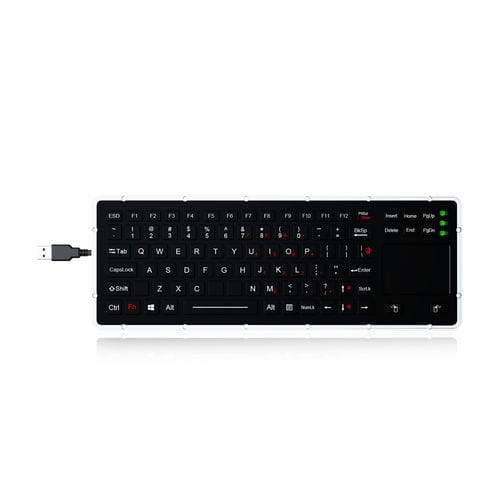

Panel-mount keyboard K-TEK-M327TP-FN-BL-IT-NV-151B-DWP

with mechanical keys88-keywith 2 mouse keys

88 keys IP65 dynamic water proof vandal proof rugged military chiclet keyboard with durable polymer keys, integrated touchpad and military grade PCB,12 function keys(F1, F2, ... F12) are on the top line. Carbon-on-gold key switch technology with(1.20mm±0.10mm)key travel with extremely good tactile feeling for fast and accurate data input without any noise. The whole keyboard is made of CNC aluminum alloy front plate + PC key caps + carbon-on-gold key switch technology with military PCB. One complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet. Super thin ruggedized aluminum back plate with mounting holes for rear panel mounting. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation and mis-typing. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt mist etc. Adjustable white backlight included, with USB interface. Built to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.). Which can also meet the critical military standards in these 10 aspects: reliability,safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimensions: 327.0mm x 111.0mm (front panel)

88 Keys IP65 Vandal-Proof Military Chiclet Rugged Keyboard with Integrated Touchpad
1. Product Overview
This is an 88-key IP65 dynamic waterproof, IK09 vandal-proof military-grade chiclet keyboard, featuring an integrated sealed rugged touchpad and military-grade PCB. Designed for extreme outdoor and harsh industrial environments, it is constructed with a CNC aluminum alloy front panel, PC keycaps, and premium carbon-on-gold rubber key switches.
Equipped with 12 top-row function keys, it delivers 1.20mm standard key travel, soft tactile feedback and silent, error-free input. A full surrounding silicone rubber strip enables tight cabinet sealing and easy installation; the ultra-thin reinforced aluminum back plate comes with reserved mounting holes for rear panel installation.
It supports FN + Clean one-key cleaning to avoid misoperation without disconnecting from the host. Built-in adjustable white backlight ensures clear operation in low-light conditions. Fully compliant with MIL-STD-461G (EMC/EMI/EMS/ESD) and MIL-STD-810F, it meets 10 critical military performance standards, perfectly adapting to direct rain, high humidity, oil, salt mist, vibration and wide-temperature scenarios.

2. Key Features
IP65 dynamic waterproof + IK09 vandal resistance, against water, dust, oil and corrosion
Military structure: CNC aluminum front panel + ultra-thin rugged aluminum rear plate
Integrated sealed touchpad for all-in-one control, compact and space-saving
88-key layout with F1–F12 function keys for diversified operation
Carbon-on-gold key switches & military PCB, stable signal and long service life
1.20mm±0.10mm key travel, comfortable tactile feel, noise-free typing
Full surrounding silicone rubber strip – tight cabinet sealing & easy mounting
Dual installation: front sealing mounting & rear panel mounting
FN+Clean cleaning function to prevent wrong input
Adjustable white backlight, dedicated USB interface
Strict military electromagnetic compatibility and environmental resistance

3. Mechanical Data
Total Keys: 88 keys (including 2 mouse buttons)
Key Switch: PC keycap + carbon-on-gold rubber switch
Key Style: Raised rectangular keys with tactile feedback
Key Travel: 1.20mm ± 0.10mm
Actuation Force:
14.0×14.0mm key: 1.0N ± 0.2N
21.8×14.0mm key: 1.5N ± 0.2N
Touchpad: Fully sealed rugged touchpad, composite cover
Touchpad Lifespan: Over 10 million strokes
Sensing Type: Mutual capacitance
Resolution: 40 Counts/mm
Position Output: Relative X/Y report
Max Tracking Speed: 1,016 mm/sec
Touchpad Voltage: 5VDC ± 0.25V
Touchpad Active Current: 10mA
Gross Weight: ≈1.0KGs
Front Panel Dimension: 327.0mm × 111.0mm

4. Electrical & Military EMC Standards
Supply Voltage: DC +5V ± 5%
Working Current:
Backlight off: 30mA
Backlight on: 300mA
Interface: USB
OS Compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android
Lifespan: 5 years
MIL-STD-461G Compliance Items
CE101 / CE102 / CS101 / CS106 / CS112
CS114 / CS115 / CS116 / RE101 / RE102
RS101 / RS103 (full EMC, EMI, EMS, ESD protection)

5. Environmental Adaptability
Operating Temperature: -40℃ ~ +75℃
Storage Temperature: -45℃ ~ +85℃
Operating Humidity: 3%~95% RH
Atmospheric Pressure: 60kPa~106kPa
Salt Mist Resistance: 96 hours (IEC 60512-6)
Damp Heat Test: 21 days @ +40℃
Dry Heat Test: 10 days @ +85℃

6. Reliability & Certifications
Protection Level: IP65 (dynamic front panel)
Vandal Grade: IK09
Certifications: RoHS, CE, FCC
Military Standards: MIL-STD-461G, MIL-STD-810F
Key Lifespan: 5 million actuations
MTBF: 20000H
MTTR: 30min
10 Military Core Standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, continuity

7. Application
Military vehicles, aerospace, naval & marine equipment, defense systems, radar devices, industrial control consoles, rugged laptops, UAV ground stations, outdoor field operations and all harsh environments with rain, humidity, oil pollution and salt mist.
