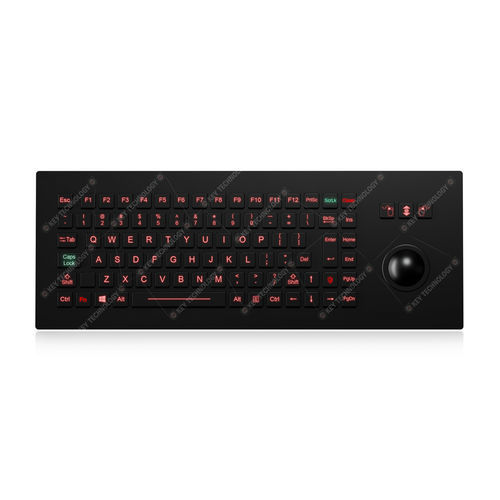

Panel-mount keyboard K-TEK-M390-MTB-FN-BL-BT-ML-DWP

with mechanical keyswith 3 mouse keys92-key

92 keys(Including 3 mouse buttons) IP65 dynamic sealed and rugged durable compact chiclet keyboard with polymer keys. With IP65 static 38.0mm black harden resin mechanical trackball module(stainless steel trackball is optional) in 400 DPI resolutions for fast and accurate cursor movement. 12 function keys F1, F2, ... F12 are on the top line of keyboard. It is made of stainless steel front plate with black titanium plating + PC keycaps + carbon contact as well as military grade PCB, Carbon-on-gold key switch technology with stroke(1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, FN + CLEAN combination keys to lock/disable keyboard for easy cleaning without taking away the keyboard from PC. Adjustable backlight included (Red or white).Super quality durable black titanium electroplated stainless steel front plate with sealing gasket and threaded bolts for top panel mounting solution. It is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil, dirt, salt mist etc. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration,shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency and continuity.

92 Keys IP65 Black Titanium Rugged Chiclet Keyboard with 38mm Trackball
1. Product Overview
This is a 92-key IP65 dynamic sealed compact military chiclet keyboard (including 3 mouse buttons), built for extreme outdoor and harsh industrial scenarios. It integrates a 38.0mm IP65 static mechanical trackball (black hardened resin as standard, stainless steel optional) with fixed 400 DPI for precise, stable cursor control.
The front panel adopts 1.5mm stainless steel with premium black titanium electroplating, paired with 1.5mm stainless steel back plate, durable polymer PC keycaps and military-grade carbon-on-gold key switch PCB. 1.20mm short key travel delivers soft tactile feedback, quiet tapping and high-precision error-free input.
Featuring 12 top-row function keys, FN+CLEAN keyboard lock function supports on-site cleaning without disconnecting from the host. Optional red/white adjustable backlight ensures visibility in low-light conditions. Equipped with sealing gasket and threaded bolts, it realizes reliable top panel mounting; dual interface of aviation plug / USB is optional with customizable cable length.
Fully compliant with MIL-STD-810H military environmental standards and EN55032/EN55035 EMC specifications, it resists direct rain, dynamic water, oil, dirt, salt mist, wide temperature fluctuation, vibration and shock, meeting 10 core military indicators for long-term stable operation in defense, aerospace and marine missions.

2. Core Features
IP65 dynamic front panel sealing + IK09 vandal-proof, waterproof, dustproof, oil & salt corrosion resistant
High-end build: Black titanium electroplated stainless steel front plate + stainless steel rear plate
Built-in 38mm sealed mechanical trackball + 3 mouse buttons, 400 DPI constant resolution
92-key full compact layout with F1–F12 function keys for multi-scenario control
Military carbon-on-gold switches & dedicated PCB, over 5 million keystroke lifespan
1.20mm±0.10mm key travel, comfortable tactile feel, silent and anti-mistyping
FN+Clean locking design, convenient cleaning and anti-misoperation
Red / white adjustable backlight optional for dark environment use
Professional top panel mounting with sealing gasket for tight cabinet fitting
Dual interface: Aviation plug / USB, standard 2m cable, customized length available

3. Mechanical Specifications
Key Count: 92 keys (including 3 mouse buttons)
Key Material: High-strength durable polymer keycaps
Key Travel: 1.20mm ± 0.10mm
Key Dimension:
Standard key: 14.0×14.0mm
Enter key: 14.0×28.0mm
Space bar: 14.0×68.2mm
Actuation Force:
Normal key: 1.0N±0.2N
Long-size key: 2.0N±0.2N
Switch Lifespan: ≥ 5 million operations
Trackball: 38.0mm IP65 static mechanical module, hardened resin / optional stainless steel, 400 DPI
Front Plate: 1.5mm stainless steel, black titanium electroplated finish
Back Plate: 1.5mm thick stainless steel
Gross Weight: 2.0KGs
Front Panel Size: 390.0mm × 145.0mm

4. Electrical Parameters
Rated Voltage: DC +5V ±5%
Working Current: 50mA (backlight off)300mA (backlight on)
EMC Standard: EN 55032:2015, EN 55035:2017
Connection Interface: USB / Aviation plug optional
Standard Cable Length: 2.0m, custom length supported
System Compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android (U-cos pending confirmation)
Overall Service Life: 5 years

5. Environmental Adaptability
Operating Temperature: -45℃ ~ +60℃
Storage Temperature: -50℃ ~ +65℃
Operating Humidity: 30%–90% RH
Atmospheric Pressure: 60–106KPa
Salt Mist Resistance: 96 hours (IEC 60512-6)
Damp Heat Test: 21 days @ +40℃ (IEC 60512-6)
Dry Heat Test: 10 days @ +85℃ (IEC 60512-6)

6. Reliability & Certification
Protection Grade: IP65 (dynamic front panel)
Vandal Resistance: IK09
Certifications: RoHS, CE, FCC, ESD Certified
Military Standard: Fully compliant with MIL-STD-810H
Key Durability: Over 5 million actuations
MTBF: 20000 hours
MTTR: 30 minutes
10 Military Core Criteria: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, continuity

7. Application Fields
Military vehicles, aerospace equipment, naval & marine vessels, defense systems, radar terminals, industrial control consoles, rugged laptops, UAV ground control stations, outdoor field operations and other harsh working environments with rain, humidity, oil pollution, dust and salt mist erosion.
