Panel-mount keyboard K-TEK-M390TP-FN-BL-NV-151B-BT-DWP
with mechanical keyswith 2 mouse keyswith Fn key

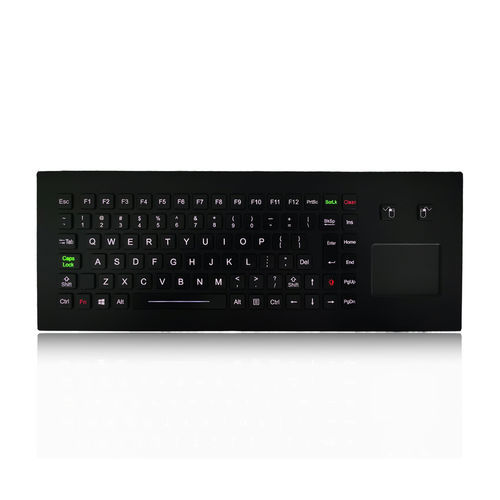

Panel-mount keyboard - K-TEK-M390TP-FN-BL-NV-151B-BT-DWP - Key Technology China Limited - with mechanical keys / with 2 mouse keys / with Fn key
Panel-mount keyboard - K-TEK-M390TP-FN-BL-NV-151B-BT-DWP - Key Technology China Limited - with mechanical keys / with 2 mouse keys / with Fn key
Panel-mount keyboard - K-TEK-M390TP-FN-BL-NV-151B-BT-DWP - Key Technology China Limited - with mechanical keys / with 2 mouse keys / with Fn key - image - 2
Panel-mount keyboard - K-TEK-M390TP-FN-BL-NV-151B-BT-DWP - Key Technology China Limited - with mechanical keys / with 2 mouse keys / with Fn key - image - 3
Add to favorites
Compare this product
Go to the Key Technology China Limited website for more information

Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with Fn key, with 2 mouse keys, 91-key
Pointing device
with touchpad
Domain
industrial, outdoor, for public access kiosks and internet terminals, control panel, for mining applications, for automotive applications, marine, for the navy, for aerospace applications, for aeronautical applications
Connection type
USB
Structure
QWERTY
Material
stainless steel, black titanium, polymer
Protection level
waterproof, rugged, vandal-proof, for harsh environments, scratch-proof, IK 08, rugged, MIL-STD 810F, MIL-STD-461G, IP65
Other characteristics
compact, backlit, integrated

Description

91 keys compact format IP65 dynamic water proof vandal proof stainless steel military keyboard with durable polymer keys, with IP65 dynamic sealed & ruggedized tough touchpad for fast and accurate cursor position, with 12 function keys F1, F2, ... F12, sealed and ruggedized Military grade PCB with carbon-on-gold key switch technology with stroke(1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium electroplated on the top stainless steel plate, one complete silicone rubber along the rear stainless steel plate for easy mounting & sealing tightly with cabinet, front panel with thread bolts for top panel mounting. Red/ white backlight included. Aviation plug or USB interface optional. Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) & MIL-STD-810F (wide temperature, shock, vibration, humidity etc.),which is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil,dirt,salt mist etc. parameters:  a. Protection Level: IP65 b. Mounting Type: Top panel mount c. Categories: Chiclet keyboard d. Interface: USB or aviation plug available e. Warranty: 1 year f. Backlight: Red/white g. Key Switch: Military PCB with carbon-on-gold key switch technology. h. Dimension: 390.0mm x 145.0mm i. Working Temperature: -40℃ to +75℃ j. Pointing Device: Touchpad k. MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Lead-time: ASAP 2-3 weeks Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
