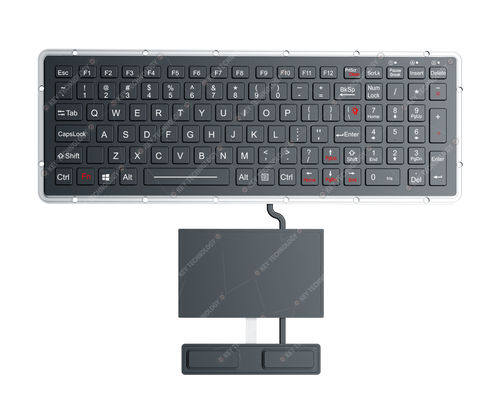

Panel-mount keyboard K-TEK-M327KP-FN-BL-IT-ML-DWP+TP80-DML-DWP+2KEY

with mechanical keys101-keywith 2 mouse keys

101 keys IP65 dynamic water proof vandal proof rugged chiclet keyboard with durable polymer keys, external with fully individual sealed waterproof wide-temperature touchpad for fast cursor position and 2 mouse buttons for left/right clicking. With 12 function keys F1, F2, ... F12 on the top of keyboard and numeric keypad on the right side of keyboard, the whole keyboard is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as integrated military grade PCB, carbon-on-gold key switch technology with 1.20mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounted with mounting holes, adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimensions: Keyboard: 327.0mm x 111.0mm (Front Panel) , Touchpad: 81.0mm x 50.0mm (L x W)

101 Keys IP65 Vandal-Proof Rugged Chiclet Keyboard with External Touchpad

1. Product Overview
This is a 101-key IP65 dynamic waterproof & vandal-proof rugged chiclet keyboard, built with CNC aluminum alloy front panel, durable polymer keycaps and integrated military-grade PCB. It is paired with an independently sealed wide-temperature touchpad and 2 mouse buttons for convenient cursor control.
Equipped with 12 top function keys and a right-side numeric keypad, it adopts carbon contact & carbon-on-gold rubber key switch technology. Featuring 1.20mm low key travel, quiet operation and excellent tactile feedback, it ensures high-precision data input. The anti-microbial, chemical-resistant surface adapts to harsh working conditions. It supports FN+Clean one-touch cleaning, adjustable white backlight and rear panel mounting holes.
Compliant with MIL-STD-810H and optional MIL-STD-461G (EMC/EMI/EMS/ESD), it satisfies 10 core military standards for extreme environmental adaptability and long-term reliability.

2. Core Key Features
IP65 dynamic waterproof + IK09 vandal-proof front panel, anti-collision and dustproof
Premium structure: CNC aluminum alloy front plate + PC polymer keycaps
Independent fully sealed wide-temperature touchpad + 2 mouse buttons
Full layout: 12 F1-F12 function keys + independent numeric keypad
Military-grade PCB & carbon-on-gold key switches, over 5-million keystroke lifespan
1.20mm short key travel, quiet tapping, no mis-typing
Anti-microbial durable coating, resistant to most chemicals and liquids
FN+Clean shortcut for offline cleaning without device disconnection
Adjustable white backlight & rear mounting holes for panel installation
Wide temperature adaptability, anti-salt mist, damp heat and dry heat

3. Mechanical Specifications
Keys: 101 keys + 2 mouse buttons
Key Style: Protuberant rectangular polymer chiclet keys
Key Switch: PC keycap + carbon-on-gold rubber switch
Key Size: FN key 14.0×10.0mm / Normal key 14.0×14.0mm
Key Travel: 1.20mm±0.10mm
Actuation Force:
14.0×14.0mm key: 1.0N±0.2N
Large size key: 1.5N±0.2N
Switch Lifespan: ≥ 5 million operations
Touchpad: Fully sealed rugged touchpad, composite cover
Touchpad Lifespan: ≥ 10 million strokes
Sensing Type: Mutual capacitance
Resolution: 40 Counts/mm
Max Tracking Speed: 1,016 mm/sec
Gross Weight: ≈1.2KGs
Dimension:
Keyboard: 327.0mm × 111.0mm
Touchpad: 81.0mm × 50.0mm

4. Electrical Parameters
Input Voltage: DC +5V±5%
Working Current:
Backlight off: 50mA
Backlight on: 300mA
Touchpad Voltage: 5VDC ± 0.25V
Touchpad Current: 10mA (active mode)
EMC Standard: EN 55032:2015, EN 55035:2017
Interface: USB / PS2 optional
System Compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android (U-cos pending confirmation)
Service Lifespan: 5 years

5. Environmental Adaptability
Operating Temperature: -40℃ ~ +75℃
Storage Temperature: -45℃ ~ +85℃
Operating Humidity: 100% RH
Atmospheric Pressure: 60kPa ~ 106kPa
Salt Mist Test: 96 hours (IEC 60512-6)
Damp Heat Test: 21 days @ +40℃ (IEC 60512-6)
Dry Heat Test: 10 days @ +85℃ (IEC 60512-6)

6. Reliability & Certification
Protection Level: IP65 (dynamic front panel)
Vandal Grade: IK09
Certifications: RoHS, CE, FCC, ESD Certified
Military Standard: MIL-STD-810H; Optional MIL-STD-461G
MTBF: 20000 hours
MTTR: 30 minutes
Core Military Criteria: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, continuity

7. Application Fields
Vehicle systems, aerospace, naval & marine equipment, national defense, radar system, industrial control console, rugged laptops, UAV ground control stations and other harsh industrial & military scenarios.
