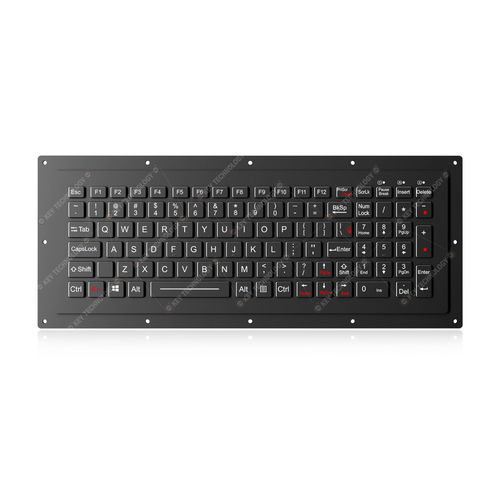

Panel-mount keyboard K-TEK-M338-122KP-FN-BL-NV-151B-DWP

with mechanical keys101-keyfor the transportation industry

101 keys IP65 dynamic water proof vandal proof rugged military chiclet keyboard with durable polymer keys. Integrated stepped aluminum alloy panel is processed by CNC. An additional black silicon gasket goes along with the top panel for easy mounting & sealing with cabinet. 12 function keys F1, F2, ... F12 are on top line of keyboard and numerical keypad at the right side of keyboard. Military grade PCB with carbon-on-gold key switch technology with key stroke (1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise. It is made of CNC aluminum alloy front plate + PC keycaps + military grade PCB, High quality durable black titanium spray-paint on the aluminum alloy panel, Rear panel with mounting hole for rear panel mounting. Adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and prevent misoperation or typo. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), which is good for outdoor application with direct rain and harsh environments with humidity, much dynamic water, oil, salt mist etc.
Dimensions: 338.0mm x 122.0mm (front panel)

101 Keys IP65 Vandal-Proof Military Chiclet Rugged Keyboard
1. Product Description
This is a 101-key IP65 dynamic waterproof and vandal-proof military-grade chiclet keyboard, equipped with high-durability polymer keycaps. It adopts CNC integrated stepped aluminum alloy panel with premium black titanium spray finish. A full-circle black silicone gasket is fitted on the top panel, enabling convenient installation and tight cabinet sealing.
Designed with 12 top-row function keys (F1–F12) and an independent right numeric keypad for efficient operation. Built with military-grade PCB and carbon-on-gold key switch technology, 1.20mm±0.10mm key stroke delivers excellent tactile feedback, fast accurate input and noise-free typing.
Rear panel reserves mounting holes for rear installation; adjustable white backlight ensures clear operation in low-light environments. FN + Clean shortcut key supports in-situ cleaning without disconnecting from the host, effectively preventing misoperation and typos.
Fully compliant with MIL-STD-461G (EMC/EMI/EMS/ESD) and MIL-STD-810H military standards, it perfectly adapts to outdoor direct rain, high humidity, splashing water, oil, salt mist and other extreme harsh environments.

2. Mechanical Data
Total Keys101 keys, durable robust polymer keys
Key Travel1.20mm±0.10mm
Actuation Force1.0N±0.2N (small keys)1.5N±0.2N (middle keys)
Switch LifespanMore than 5 million operations
Front Panel Size338.0mm × 122.0mm

3. Electrical Data
Supply VoltageDC +5V±5%
Working Current30mA (backlight off)300mA (backlight on)
Military EMC ComplianceFully meets MIL-STD-461G
Service Lifespan5 years
Switch MaterialCarbon-on-gold key switch technology
InterfaceUSB
Cable LengthStandard 1.5m / 2.0mcustomizable
System CompatibilityWindows, Linux, Unix, Mac OSX, Vxworks, Android

4. Environmental Adaptability
Operating Temperature-40℃ ~ +75℃
Storage Temperature-45℃ ~ +85℃
Salt Mist Resistance96h (IEC60512-6)
Damp Heat Test21 days @ +40℃ (IEC 60512-6)
Dry Heat Test10 days @ +85℃ (IEC 60512-6)
Operating Humidity100% RH
Atmospheric Pressure60–106Kpa

5. Reliability & Certification
Protection LevelIP65 dynamic (front panel)
CertificationsRoHS, CE, FCC
Military StandardsMIL-STD-461G、MIL-STD-810H
Key Lifespan5 million actuations
MTBF20000H
MTTR30min

6. Application Scope
Vehicle, aerospace, naval, defense, maritime, radar system, industrial control console, portable rugged laptop, UAV ground station and other military & harsh industrial scenarios.
