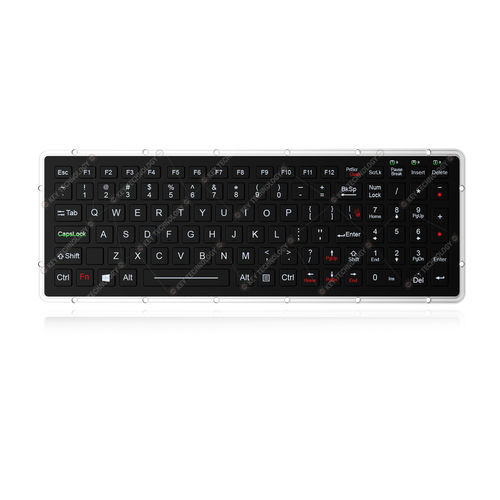

Panel-mount keyboard K-TEK-M327KP-FN-BL-IT-NV-151B-DWP

with mechanical keys101-keywith Fn key

101 keys IP65 dynamic water proof vandal proof rugged chiclet keyboard with durable polymer keys, with 12 function keys F1, F2, ... F12, and individual numeric keypad on the right part, the whole keyboard is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as integrated military grade PCB, carbon-on-gold key switch technology with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounted with mounting holes, adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD, as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

101 Keys IP65 Vandal-Proof Military Chiclet Rugged Keyboard
1. Product Description
This is a 101-key IP65 dynamic waterproof and vandal-proof military-grade chiclet keyboard, equipped with high-durability polymer keycaps. It adopts CNC integrated stepped aluminum alloy panel with premium black titanium spray finish. A full-circle black silicone gasket is fitted on the top panel, enabling convenient installation and tight cabinet sealing.
Designed with 12 top-row function keys (F1–F12) and an independent right numeric keypad for efficient operation. Built with military-grade PCB and carbon-on-gold key switch technology, 1.20mm±0.10mm key stroke delivers excellent tactile feedback, fast accurate input and noise-free typing.
Rear panel reserves mounting holes for rear installation; adjustable white backlight ensures clear operation in low-light environments. FN + Clean shortcut key supports in-situ cleaning without disconnecting from the host, effectively preventing misoperation and typos.
Fully compliant with MIL-STD-461G (EMC/EMI/EMS/ESD) and MIL-STD-810H military standards, it perfectly adapts to outdoor direct rain, high humidity, splashing water, oil, salt mist and other extreme harsh environments.

2. Mechanical Data
Total Keys101 keys, durable robust polymer keys
Key Travel1.20mm±0.10mm
Actuation Force1.0N±0.2N (small keys)1.5N±0.2N (middle keys)
Switch LifespanMore than 5 million operations
Front Panel Size338.0mm × 122.0mm

3. Electrical Data
Supply VoltageDC +5V±5%
Working Current30mA (backlight off)300mA (backlight on)
Military EMC ComplianceFully meets MIL-STD-461G
Service Lifespan5 years
Switch MaterialCarbon-on-gold key switch technology
InterfaceUSB
Cable LengthStandard 1.5m / 2.0mcustomizable
System CompatibilityWindows, Linux, Unix, Mac OSX, Vxworks, Android

4. Environmental Adaptability
Operating Temperature-40℃ ~ +75℃
Storage Temperature-45℃ ~ +85℃
Salt Mist Resistance96h (IEC60512-6)
Damp Heat Test21 days @ +40℃ (IEC 60512-6)
Dry Heat Test10 days @ +85℃ (IEC 60512-6)
Operating Humidity100% RH
Atmospheric Pressure60–106Kpa

5. Reliability & Certification
Protection LevelIP65 dynamic (front panel)
CertificationsRoHS, CE, FCC
Military StandardsMIL-STD-461G、MIL-STD-810H
Key Lifespan5 million actuations
MTBF20000H
MTTR30min

6. Application Scope
Vehicle, aerospace, naval, defense, maritime, radar system, industrial control console, portable rugged laptop, UAV ground station and other military & harsh industrial scenarios.
