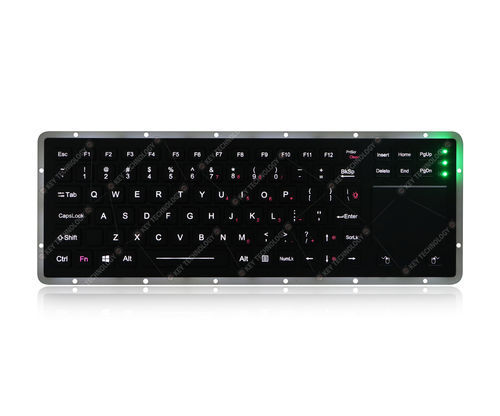

Panel-mount keyboard K-TEK-M327TP-FN-BL-IT-ML-DWP

with mechanical keys88-keyfor the transportation industry

DESCRIPTION: 88 keys(including 2 mouse buttons)IP65 dynamic water proof vandal proof rugged military chiclet keyboard with durable polymer keys, integrated touchpad and military grade PCB,12 function keys(F1, F2, ... F12) are on the top line. Carbon-on-gold key switch technology with(1.20mm±0.10mm)key travel with extremely good tactile feeling for fast and accurate data input without any noise. The whole keyboard is made of CNC aluminum alloy front plate + PC key caps + carbon-on-gold key switch technology with military PCB. One complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet. Super thin ruggedized aluminum back plate with mounting holes for rear panel mounting. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation and mis-typing. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt mist etc. Adjustable white backlight included, with USB interface. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional),as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimensions: 327.0mm x 111.0mm (front panel)

88 Keys IP65 Vandal-Proof Military Chiclet Keyboard with Integrated Touchpad
Product Overview
This is an 88-key military-grade rugged chiclet keyboard (including 2 mouse buttons), featuring IP65 dynamic waterproof and IK09 vandal-proof performance. It integrates a sealed rugged touchpad and military-grade PCB, with 12 top-row function keys (F1–F12) for multi-functional operation.
Constructed with CNC aluminum alloy front plate, durable PC polymer keycaps and premium carbon-on-gold rubber key switches, it provides 1.20mm±0.10mm key travel, delicate tactile feedback, fast accurate input and silent operation. The full surrounding silicone rubber gasket enables tight cabinet sealing and quick installation; the ultra-thin reinforced aluminum back plate is pre-drilled for rear panel mounting, supporting dual installation methods.
Equipped with adjustable white backlight and standard USB interface, it adopts FN+Clean shortcut design for in-situ cleaning without disconnection, effectively preventing mis-operation. It is perfectly suitable for outdoor exposure, direct rainfall, high humidity, oil contamination, salt mist and other extreme harsh conditions.
It fully complies with MIL-STD-810H environmental military standards, with optional MIL-STD-461G (EMC/EMI/EMS/ESD) electromagnetic compatibility certification, covering 10 core military indicators: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency and continuity.

Key Features
IP65 dynamic waterproof + IK09 vandal-proof, dust, oil, salt mist and corrosion resistant
Military rugged structure: CNC aluminum front panel + reinforced aluminum rear plate
Integrated fully sealed touchpad, 88 keys + 2 mouse buttons, compact all-in-one design
12 F1–F12 function keys, flexible for industrial control and military terminal operation
Carbon-on-gold key switches & military PCB, stable signal and long service life
Comfortable 1.20mm key travel, low noise, no ghosting or mis-typing
Full surround silicone seal: tight cabinet fitting, waterproof & dustproof isolation
Dual mounting: front embedded sealing installation & rear panel mounting
FN+Clean cleaning function, avoid disassembly and wrong input
Adjustable white backlight, clear visibility in dark environments
Wide temperature resistance, anti-vibration, anti-shock, anti-fungus for outdoor military scenarios

Mechanical Data
Total Keys: 88 keys (including 2 mouse buttons)
Key Switch: PC keycap + carbon-on-gold rubber switch
Key Style: Protuberant rectangular tactile keys
Key Travel: 1.20mm±0.10mm
Actuation Force:
14.20×14.20mm key: 1.0N±0.2N
21.8×14.0mm key: 1.5N±0.2N
Touchpad: Sealed rugged tough touchpad, composite cover
Touchpad Lifespan: Over 10 million strokes
Sensing Technology: Mutual capacitance
Resolution: 40 Counts/mm
Position Output: Relative X/Y report
Max Tracking Speed: 1,016 mm/sec
Touchpad Power: 5VDC ± 0.25V, Current 10mA (active)
Gross Weight: ≈1.0KGs
Front Panel Dimension: 327.0mm × 111.0mm

Electrical Data
Rated Voltage: DC +5V±5%
Working Current: 30mA (backlight off); 300mA (backlight on)
Interface: USB
System Compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android
Service Lifespan: More than 5 years

Environmental Adaptability
Operating Temperature: -40℃ ~ +75℃
Storage Temperature: -45℃ ~ +85℃
Working Humidity: 3%~95% RH
Atmospheric Pressure: 60KPa~106KPa
Salt Mist Resistance: 96 hours (IEC 60512-6)
Damp Heat Test: 21 days @ +40℃
Dry Heat Test: 10 days @ +85℃

Reliability & Certification
Protection Level: IP65 (dynamic front panel)
Vandal Grade: IK09
Certifications: RoHS, CE, FCC, ESD Certified
Military Standards:
Mandatory: MIL-STD-810H
Optional: MIL-STD-461G (EMC/EMI/EMS/ESD)
Key Lifespan: ≥5 million actuations
MTBF: 20000H
MTTR: 30min

Application
Military vehicles, aerospace, naval & marine equipment, defense industry, radar systems, industrial control consoles, portable rugged laptops, UAV ground stations, outdoor field missions, and various harsh environments with rain, high humidity, oil, dust and salt erosion.
