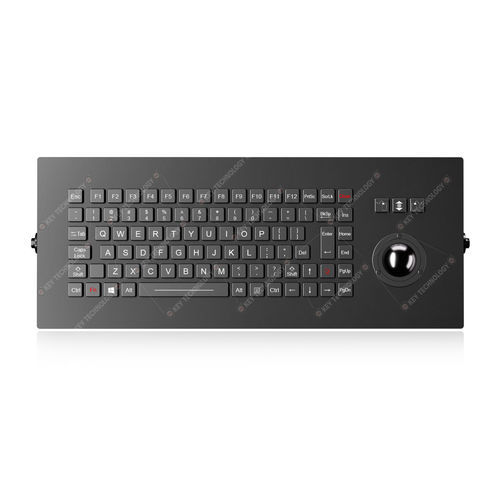

Desktop keyboard K-TEK-M410-38-MTB-AVR-FN-BL-NV-151B-SDT

carbon contactwith 3 mouse keys91-key

Overview: Industrial-grade rotatable desktop keyboard with 91 keys (including 3 mouse buttons) and a 38.0 mm removable mechanical trackball. Sealed to IP68 (keyboard dynamic) with trackball protection at IP65. Designed for operation in exposed and harsh environments and to meet MIL-STD-461G and MIL-STD-810H qualification requirements.

Key features:

• 91 keys including 3 mouse buttons; chiclet layout with CNC aluminum alloy front plate and PC keycaps
• Carbon-on-gold key switch technology, key travel 1.20 mm ±0.10 mm, >5 million actuations
• 38.0 mm anti-vibration removable black resin mechanical trackball, 400 DPI
• IP68 dynamic sealing for keyboard; trackball rated IP65; vandal resistance IK09
• Adjustable white backlight and FN + CLEAN lock to disable keys for cleaning
• USB interface; rotatable desktop design with spindles for ergonomic typing posture
• Designed for outdoor, maritime and military environments (rain, humidity, salt mist, dust, fungus)

Mechanical data:

• Keys: 91 (including 3 mouse buttons)
• Key travel: 1.20 mm ±0.10 mm
• Key sizes: normal 14.0 mm x 14.0 mm; Enter 14.0 mm x 21.8 mm; Space 14.0 mm x 68.0 mm
• Actuation force: 1.0 N ±0.2 N (13.6 mm x 13.6 mm key); 1.5 N ±0.2 N (13.6 mm x 21.4 mm key)
• Switch life: >5 million operations
• Trackball: IP65 38.0 mm removable mechanical, 400 DPI, anti-vibration
• Backlight: adjustable white

Electrical data:

• Supply voltage: DC +5 V ±5%
• Current: 50 mA (backlight off) / 300 mA (backlight on)
• Meets multiple MIL-STD-461G CE/CS/RE/RS test items for emissions and susceptibilities

Environmental adaptability:

• Operating temperature: -40 °C to +75 °C
• Storage temperature: -45 °C to +85 °C
• Saline mist: 96 h (IEC 60512-6)
• Damp heat: 21 days at +40 °C (IEC 60512-6)
• Dry heat: 10 days at +85 °C (IEC 60512-6)
• Humidity: 100%
• Atmospheric pressure: 60–106 kPa
• Protection: IP68 dynamic (keyboard); trackball IP65; vandal resistant IK09

Reliability and compliance:

• Designed to meet MIL-STD-461G and MIL-STD-810H
• RoHS compliant, CE and FCC certified
• Lifespan: >5 years; Key life: >5 million actuations
• MTBF: >20,000 h; MTTR: <30 min

Applications:

• Vehicle consoles
• Aerospace systems
• Radar and display consoles
• Portable rugged laptops and ground stations
• UAV ground control stations

Technical specifications:

• Model family: K-TEK M410
• Form factor: Chiclet rotatable/swivel desktop keyboard
• Interface: USB
• Protection: IP68 dynamic (keyboard); trackball IP65
• Vandal resistance: IK09
• Materials: CNC aluminum alloy front plate, PC keycaps, military-grade PCB
• Dimensions (L x W x H): 410.0 mm x 165.0 mm x 37.5 mm
• Supply voltage: DC +5 V ±5%; Current: 50 mA / 300 mA
• Compliance: MIL-STD-461G, MIL-STD-810H, RoHS, CE, FCC
• Key life: >5 million actuations
