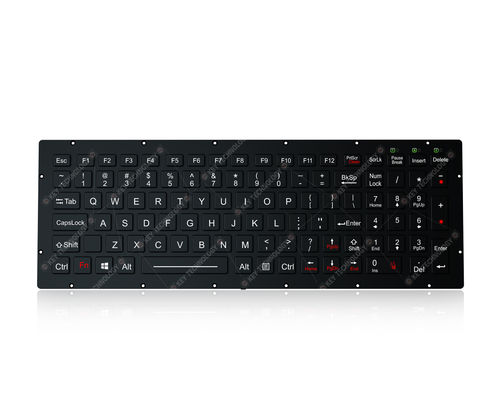

Panel-mount keyboard K-TEK-M334KP-FN-BL-AC-DWP

with mechanical keys101-keywith Fn key

101 keys IP65 dynamic water proof vandal proof rugged chiclet keyboard with durable polymer keys, with ultra-thin military grade dot matrix PCB and semi-reinforced ultra-thin rugged aluminum alloy back plate. With 12 function keys F1, F2, ... F12 on the top of keyboard and individual numeric keypad on the right side of keyboard for easy operation. The whole keyboard is made of CNC aluminum alloy front plate + PC keycaps with carbon-on-gold key switch technology+military grade dot matrix PCB.With 1.20mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise,with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment, Top panel with mounting holes, adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mistyping. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimension: 334.0mm x 118.0mm (L x W)

101 Keys IP65 Vandal-Proof Rugged Military Chiclet Keyboard
1. Product Description
This is a 101-key IP65 dynamic waterproof and IK09 vandal-proof military-grade chiclet keyboard, equipped with durable polymer keycaps. It adopts an ultra-thin military dot matrix PCB and semi-reinforced ultra-thin rugged aluminum alloy back plate. The front panel is made of high-strength CNC aluminum alloy, matched with PC keycaps and carbon-on-gold rubber key switch technology.
It is designed with 12 top-row F1–F12 function keys and an independent numeric keypad on the right for efficient daily operation. 1.20mm±0.10mm key travel delivers excellent tactile feedback, realizing fast, accurate and noise-free data input. The keyboard surface features durable coating and anti-microbial performance, resisting most chemicals and liquids in harsh conditions.
Top panel is reserved with mounting holes for embedded installation; adjustable white backlight ensures clear viewing in low-light environments. The FN + Clean key combination supports offline cleaning without disconnecting the device, effectively preventing mis-operation and mistyping.
This product complies with MIL-STD-810H environmental military standards, with optional MIL-STD-461G (EMC/EMI/EMS/ESD) electromagnetic compatibility. It meets 10 core military criteria: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency and continuity.Front panel dimension334.0mm × 118.0mm

2. Mechanical Data
Total Keys101 keys
Key StyleProtuberant rectangular polymer keys
Key SwitchCarbon-on-gold rubber key switch
Key SizeFN key 14.0×10.0mmNormal key 14.0×14.0mm
Key Travel1.20mm±0.10mm
Actuation Force1.0N±0.2N14.0×14.0mm1.5N±0.2N21.8×14.0mm
Switch Lifespan≥ 5 million operations
Gross Weight≈1.0KGs

3. Electrical Data
Rated VoltageDC +5V±5%
Working Current30mAbacklight off300mAbacklight on
EMC StandardEN 55032:2015、EN 55035:2017
Service Lifespan5 years
InterfaceDot matrix
System CompatibilityWindows, Linux, Unix, Mac OSX, Vxworks, Android

4. Environmental Adaptability
Operating Temperature-40℃ ~ +75℃
Storage Temperature-45℃ ~ +85℃
Operating Humidity100% RH
Atmospheric Pressure60–106Kpa
Salt Mist Resistance96 hoursIEC 60512-6
Damp Heat Test21 days @ +40℃IEC 60512-6
Dry Heat Test10 days @ +85℃IEC 60512-6

5. Reliability & Certification
Protection LevelIP65 dynamicfront panel
Vandal GradeIK09
CertificationsRoHS, CE, FCC, ESD
Military StandardMIL-STD-810HMIL-STD-461G optional
Key Lifespan5 million actuations
MTBF20000H
MTTR30min

6. Application Scope
Vehicle, aerospace, naval, defense, maritime, radar equipment, industrial control console, portable rugged laptop, UAV ground station and other harsh military & industrial scenarios.
