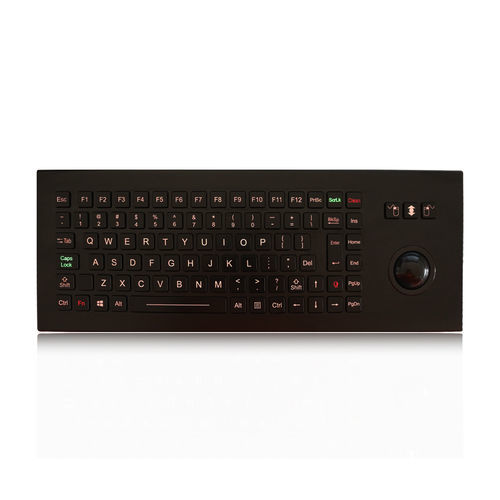

DESCRIPTION: 92 keys compact format IP68 dynamic water proof vandal proof stainless steel military keyboard with
durable polymer keys, with IP65 static 38mm mechanical trackball module with 400DPI resolutions, with 12 function keys F1, F2, ... F12, sealed and ruggedized Military Grade PCB electronics module with carbon-on-gold key switch technology with stroke(1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium electroplated on whole keyboard plate and housing, one complete silicone rubber alone the rear stainless steel plate, Movable stand alone DESK TOP VERSION. FN + CLEAN key to lock/disable the keyboard for easy cleaning without taking away the keyboard from PC. Red/ white backlight is included. Aviation plug or USB interface is optional. The whole keyboard and trackball part designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide working temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, sand and dust, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. It is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil, dirt, salt mist etc.
Dimensions: 390.0mm x 145.0mm x 36.5mm(L*W*H)
Parameters:
a. Protection Level: IP68
b. Mounting Type: Desktop version
c. Categories: Chiclet keyboard
d. Interface: USB or aviation plug available
e. Warranty: 1 year
f. Backlight: Red/white
g. Key Switch: Carbon-on-gold key switch technology.
h. Dimension: 390.0mm x 145.0mm x 36.5mm (LxWxH)
i. Working Temperature: -40℃ to +75℃
j. Pointing Device38mm mechanical trackball
k. MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity)
Lead-time: ASAP 2-3 weeks
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
