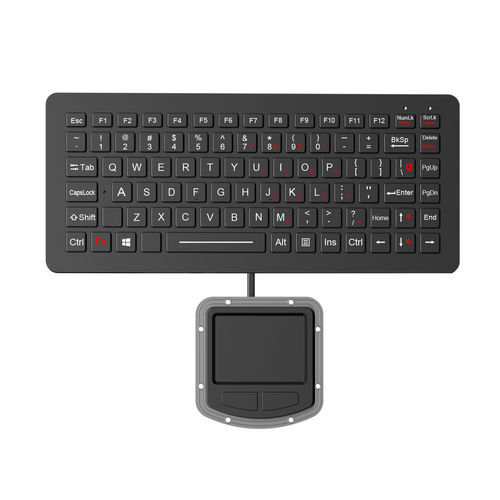

Panel-mount keyboard K-TEK-M282-122-FN-BL-IT-ML-DWP+M73TP

with mechanical keys86-keywith 2 mouse keys

86 keys IP65 dynamic water proof vandal proof ultrathin chiclet keyboard with durable polymer keys, sealed and ruggedized touchpad with 2 mouse buttons for left/right clicking. With 12 function keys F1, F2, ... F12 on top of keyboard, the whole keyboard is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as integrated military grade PCB, carbon-on-gold key switch technology with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mounted solution, adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation or mis-typing. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity).
Dimension: Keyboard: 282.0mm x 122.0mm (L x W), Touchpad: 73.0mm x 76.0mm (L x W)

86 Keys IP65 Vandal-Proof Ultrathin Chiclet Rugged Keyboard with Sealed Touchpad
1. Product Overview
This is an 86-key IP65 dynamic waterproof & IK09 vandal-proof ultrathin chiclet keyboard, integrated with a fully sealed rugged touchpad and 2 mouse buttons for left/right click control. It adopts premium CNC aluminum alloy front panel, durable polymer PC keycaps, military-grade integrated PCB and carbon-on-gold key switch technology.
With 12 top-row function keys (F1–F12), 1.20mm low key travel delivers comfortable tactile feedback, silent tapping and high-accuracy input. The anti-microbial and high-durability surface resists various chemicals and liquids for harsh environments. It supports adjustable white backlight, top panel mounting and FN+Clean one-key cleaning to prevent misoperation without disconnecting from devices.
Qualified with MIL-STD-810F and optional MIL-STD-461G (EMC/EMI/EMS/ESD), it meets 10 core military standards for comprehensive environmental adaptability and long-term operational stability.

2. Key Features
IP65 dynamic waterproof + IK09 vandal-resistant front panel, dustproof & corrosion-proof
Industrial rugged build: CNC aluminum alloy front plate + wear-resistant polymer keycaps
Integrated sealed rugged touchpad + dual mouse buttons for all-in-one operation
86-key compact layout with 12 function keys for multi-scenario control
Military PCB & carbon-on-gold switches, over 5 million keystroke durability
1.20mm ultra-thin key travel, quiet, sensitive and error-free input
Anti-microbial coating, resistant to chemicals, oil and liquids
FN+Clean shortcut for convenient in-place cleaning
Adjustable white backlight + top panel mounting design
Wide temperature working range, anti-salt mist, damp heat and dry heat

3. Mechanical Data
Total Keys: 86 keys + 2 mouse buttons
Switch Technology: Carbon-on-gold key contact
Key Style: Raised rectangular tactile chiclet keys
Key Travel: 1.20mm ± 0.10mm
Actuation Force:
Standard key (13.6×13.6mm): 1.0N±0.2N
Large key (21.4×13.6mm): 1.5N±0.2N
Touchpad: Fully sealed rugged touchpad, composite cover
Touchpad Lifespan: Over 10 million strokes
Sensing Principle: Mutual capacitance
Positioning Resolution: 40 Counts/mm
Report Mode: Relative X/Y positioning
Max Tracking Speed: 1,016 mm/sec
Touchpad Working Voltage: 5VDC ± 0.25V
Touchpad Active Current: 10mA
Gross Weight: 0.80KGs
Dimensions:
Keyboard: 282.0mm × 122.0mm
Touchpad: 73.0mm × 76.0mm

4. Electrical Parameters
Rated Voltage: DC +5V±5%
Working Current:
Backlight off: 30mA
Backlight on: 300mA
EMC Standard: EN 55032:2015, EN 55035:2017
Optional Interface: USB / PS2
OS Compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android (U-cos pending confirmation)
Service Lifespan: 5 years

5. Environmental Adaptability
Operating Temperature: -40℃ ~ +75℃
Storage Temperature: -45℃ ~ +85℃
Operating Humidity: 3%~95% RH
Atmospheric Pressure: 60KPa ~ 106KPa
Salt Mist Resistance: 96 hours (IEC 60512-6)
Damp Heat Endurance: 21 days @ 40℃ (IEC 60512-6)
Dry Heat Endurance: 10 days @ 85℃ (IEC 60512-6)

6. Reliability & Certification
Protection Grade: IP65 (dynamic front panel)
Vandal Grade: IK09
Certifications: RoHS, CE, FCC
Military Standard: Compliant with MIL-STD-810F; Optional MIL-STD-461G
Mechanical Lifespan: Over 5 million keystrokes
MTBF: 20000 hours
MTTR: 30 minutes
10 Military Core Criteria: Reliability, Safety, Maintainability, Testability, Supportability, Environmental Adaptability, Stability, Compatibility, Consistency, Continuity

7. Application
Vehicle systems, aerospace, naval, defense, maritime, radar equipment, industrial control consoles, portable rugged laptops, UAV ground stations and other extreme industrial & military working environments.
