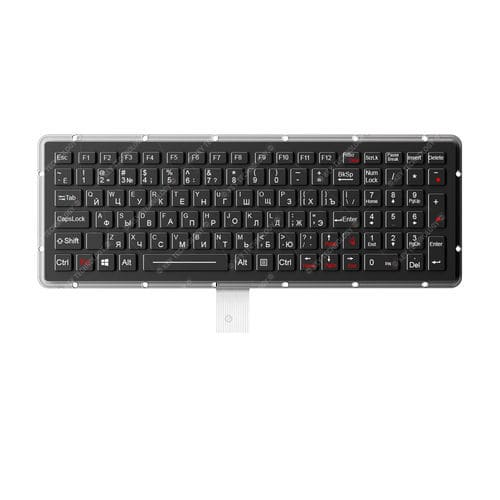

Panel-mount keyboard K-TEK-M327KP-FN-BL-DM-DWP

with mechanical keys101-keywith Fn key

101 keys IP65 dynamic water proof vandal proof rugged chiclet keyboard with durable polymer keys, with ultra-thin military grade dot matrix PCB and semi-reinforced ultra-thin rugged aluminum alloy back plate. With 12 function keys F1, F2, ... F12 on the top of keyboard and individual numeric keypad on the right side of keyboard for easy operation. The whole keyboard is made of CNC aluminum alloy front plate + PC keycaps with carbon-on-gold key switch technology+military grade dot matrix PCB.With 1.20mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise,with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounted with mounting holes, adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mistyping. Designed to meets MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimensions: 327.0mm x 111.0mm (Front Panel)

101 Keys IP65 Vandal-Proof Rugged Chiclet Military Keyboard
Product Description
This 101-key rugged chiclet keyboard features IP65 dynamic waterproof and IK09 vandal-proof performance, specially built for military, vehicle, aerospace, marine and heavy industrial harsh environments.
Constructed with a high-strength CNC aluminum alloy front panel, semi-reinforced ultra-thin rugged aluminum alloy back plate, and military-grade ultra-thin dot matrix PCB. Adopting premium PC polymer keycaps and carbon-on-gold rubber key switch technology, it ensures stable conduction, sensitive response and long-term durability.
Equipped with 12 top F1–F12 function keys and an independent right numeric keypad, it delivers efficient full-function input. 1.20mm±0.10mm optimized key travel provides superior tactile feedback, quiet operation and precise error-free typing. The anti-microbial durable surface resists various chemicals, liquids, oil and contaminants.
It comes with adjustable white backlight for low-light operation, reserved rear mounting holes for rear panel installation, and FN+Clean shortcut locking function to realize online cleaning without disconnecting equipment, effectively preventing misoperation and wrong keystrokes.
Compliant with MIL-STD-810H full environmental adaptability standards, optional MIL-STD-461G (EMC/EMI/EMS/ESD) electromagnetic compatibility, it satisfies 10 core military specifications: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency and continuity.
Core Features
IP65 dynamic front panel waterproof + IK09 vandal resistance, anti-dust, anti-rain, anti-salt mist, anti-corrosion
Rugged structure: CNC aluminum front panel + reinforced aluminum alloy rear plate
Military ultra-thin dot matrix PCB + carbon-on-gold switches, 5-million-keystroke lifespan
101-key full layout: function keys + independent numeric keypad for efficient operation
1.20mm comfortable key travel, silent typing, excellent tactile feeling
Anti-microbial & chemical-resistant coating, adaptable to liquid and oil pollution
FN+Clean lock design, convenient maintenance and avoid mis-operation
Adjustable white backlight, suitable for night and dim scenarios
Rear panel mounting design, easy for cabinet embedded integration
Wide temperature, vibration and shock resistance for extreme mission scenarios

Mechanical Specifications
Total Keys101 keys
Key TypeRaised rectangular durable polymer chiclet keys
Key SwitchPC keycap + carbon-on-gold rubber switch
Key Size
FN Keys14.0mm × 10.0mm
Standard Keys14.0mm × 14.0mm
Key Travel1.20mm ± 0.10mm
Actuation Force
14.0×14.0mm key1.0N ± 0.2N
21.8×14.0mm key1.5N ± 0.2N
Mechanical Lifespan≥ 5 million actuations
Gross Weight≈1.0KGs
Overall Dimension327.0mm × 111.0mm (front panel)

Electrical Parameters
Input VoltageDC +5V ± 5%
Working Current
Backlight OFF30mA
Backlight ON300mA
EMC StandardEN 55032:2015 / EN 55035:2017
Service Life5 years
InterfaceDot Matrix
System CompatibilityWindows, Linux, Unix, Mac OSX, Vxworks, Android

Environmental Performance
Operating Temperature-40℃ ~ +75℃
Storage Temperature-45℃ ~ +85℃
Max Operating Humidity100% RH
Working Air Pressure60KPa ~ 106KPa
Salt Mist Test96 hours (IEC 60512-6)
Damp Heat Endurance21 days @ 40℃
Dry Heat Endurance10 days @ 85℃

Certification & Reliability
Protection LevelIP65 (Dynamic Front Panel)
Vandal GradeIK09
CertificationsRoHS, CE, FCC, ESD
Military Standard
MandatoryMIL-STD-810H
OptionalMIL-STD-461G (EMC/EMI/EMS/ESD)
MTBF20000 Hours
MTTR30 Minutes

Application Scope
Military vehicles, aerospace equipment, naval & maritime vessels, defense systems, radar terminals, industrial control consoles, rugged laptops, UAV ground control stations, and all outdoor, field & industrial extreme harsh environments.
