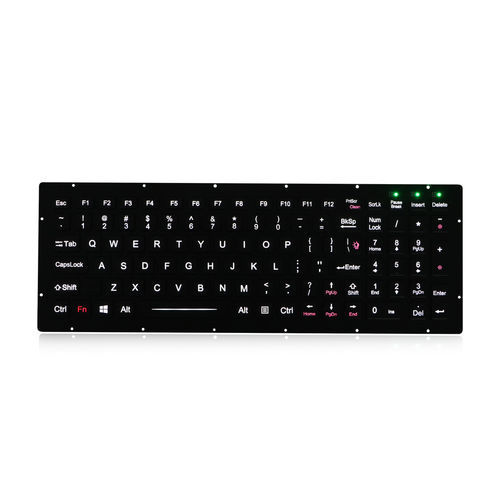

Panel-mount keyboard K-TEK-M334KP-FN-BL-IT-NV-151B-DWP
with mechanical keyswith Fn key101-key

panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with Fn key, 101-key
Pointing device
without pointing device
Domain
military, marine
Material
aluminum alloy, polymer
Protection level
rugged, waterproof, vandal-proof, for harsh environments, ESD, MIL-STD 810F, MIL-STD-461G, IP65, EMC
Other characteristics
backlit, with numeric keypad, USB, PS2

Description

101 keys IP65 dynamic waterproof sealed and rugged durable embedded military keyboard with polymer keys, with built-in military grade PCB. Which is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as military grade PCB, with carbon-on-gold key switch technology with key travel1.20mm with extremely good tactile feeling for fast and accurate data input without any noise, one complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, top panel mount with sinking holes solution. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing. Adjustable white backlight included, meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.). Parameters:  a. Protection Level: IP65 b. Mounting Type: Top panel mount solution c. Categories: Chiclet keyboard, marine keyboard, rugged keyboard, military keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Backlight: White g. Key Switch: Carbon-on-gold key switch technology. h. Dimension: 334.0mm x 118.0mm (L x W) i. Working Temperature: -40℃ to +75℃ j. MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Lead-time: ASAP 2-3 weeks Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
