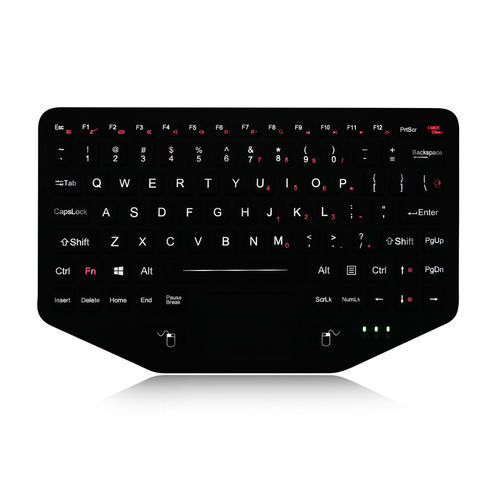

Panel-mount keyboard K-TEK-M275TP-FN-BL-ML-DWP

with mechanical keyswith 2 mouse keyswith Fn key

91 keys IP65 dynamic sealed and rugged durable embedded military keyboard with polymer keys and touchpad. 12 function keys(F1, F2, ... F12) on the top line for easy operation. which is made of CNC aluminum alloy front plate + PC key caps + rubber contact + ultra-thin control board, with carbon-on-gold key switch technology with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise. One complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC and avoid mis-operation or mis-typing. It is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt mist etc. Top panel mount solution. Adjustable white backlight included. Built to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), MIL-STD-461G (EMC, EMI, EMS, ESD) optional. Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS: 285.0mm x 179.7mm ( L x W )

91 Keys IP65 Wide-Temperature Embedded Rugged Keyboard with Touchpad
1. Product Description
This is a 91-key IP65 dynamic waterproof, sealed and rugged embedded wide-temperature chiclet keyboard with durable polymer keys and integrated sealed touchpad, built-in military grade PCB. 12 function keys (F1–F12) are arranged on the top row.
Adopting CNC aluminum alloy front plate, PC keycaps and carbon-on-gold key switch PCB, with 1.20mm±0.10mm key travel, it delivers excellent tactile feeling, fast, accurate and noise-free data input. A full-piece silicone rubber gasket surrounds the top panel, realizing easy installation and tight cabinet sealing for top panel mounting.
FN + Clean key combination supports in-situ cleaning without disconnecting from the host, effectively preventing mis-operation and wrong typing. Equipped with adjustable white backlight, it is suitable for outdoor direct rain and harsh environments such as high humidity, splashing water, oil and salt mist.
It meets MIL-STD-810H wide temperature and environmental military standards, covering high / low temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus and solar radiation. It complies with 10 core military specifications: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency and continuity.Overall Dimensions285.00mm × 179.69mm (L × W)

2. Mechanical Data
Key Quantity91 keys (including 2 mouse buttons)
Key StyleProtuberant rectangular keys, laser engraved & etched legends optional
Switch TechnologyCarbon-on-gold key switch technology
Key SizeFN key 14.2×10.0mmEnter key 25.0×15.8mmNormal key 15.8×15.0mm
Key Travel1.20mm±0.10mm
Actuation Force1.0N±0.2N (normal keys)1.5N±0.2N (Enter / Backspace / Shift / Caps lock / Tab keys)
Switch Lifespan≥ 5 million operations
TouchpadSealed ruggedized tough touchpad, composite cover
Touchpad DurabilityOver 10 million strokes lifetime
Touchpad SensorMutual capacitance sensing
Positioning Resolution40 Counts/mm
Position Report ModeRelative
Output InterfacePS2 / USB self-adaptive
Maximum Tracking Speed1,016 mm/sec
Touchpad Voltage5VDC ± 0.25V
Touchpad Working Current10mA
Gross Weight≈1.5KGs

3. Electrical Data
Supply VoltageDC +5V±5%
Working Current50mA (backlight off)300mA (backlight on)
Service Lifespan5 years
External InterfaceUSB / PS2 optional
System CompatibilityWindows, Linux, Unix, Mac OSX, Vxworks, Android

4. Environmental Adaptability
Operating Temperature-40℃ ~ +75℃
Storage Temperature-45℃ ~ +85℃
Salt Mist Resistance96hIEC60512-6
Damp Heat Test21 days @ +40℃IEC 60512-6
Dry Heat Test10 days @ +85℃IEC 60512-6
Working Humidity100% RH
Atmospheric Pressure60–106Kpa

5. Reliability & Certification
Protection LevelIP65 dynamic (front panel)
Vandal GradeIK09
CertificationsRoHS, CE, FCC
Military StandardMIL-STD-810H
Key Lifespan5 million actuations
MTBF20000H
MTTR30min

6. Application Scope
Applicable ScenariosVehicle, aerospace, naval, defense, maritime, radar system, industrial control console, portable rugged laptop, UAV ground station and other embedded military & industrial harsh environments.
