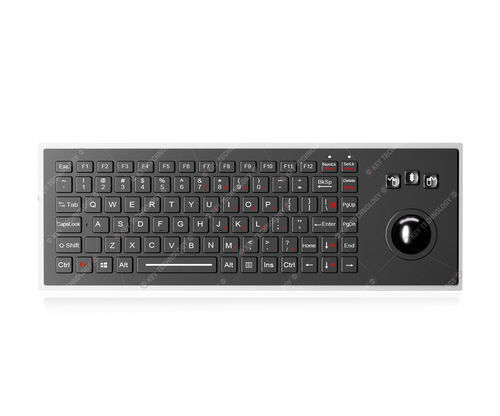

Panel-mount keyboard K-TEK-M350-38-MTB-FN-BL-NV-151B

with mechanical keyswith 3 mouse keys89-key

89 keys(Including 3 mouse buttons) IP65 dynamic sealed and rugged compact chiclet military keyboard with durable polymer keys. With military IP65 static 38.0mm black harden resin mechanical trackball module(stainless steel trackball is optional)in 400DPI resolutions for fast and accurate cursor movement. 12 function keys F1, F2, ... F12 are on the top line of keyboard. It is made of CNC Aluminum Alloy front plate + PC keycaps + military grade PCB, Carbon-on-gold key switch technology with stroke(1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, FN +CLEAN combination keys to lock/disable keyboard for easy cleaning without taking away the keyboard from PC. Adjustable white backlight included. Secure the keyboard to the customer's device using a high-strength adhesiveTop panel with mounting holes or thread bolts are available). Dual USB interface.High quality durable black titanium spray-paint on the aluminum alloy panel. It is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil, dirt, salt mist etc. The whole keyboard and trackball part can meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration,shock, temperature shock, rain,dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety,maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency and continuity.

89 Keys IP65 Compact Military Chiclet Keyboard with 38mm Trackball
1. Product Description
This is an 89-key IP65 dynamic sealed rugged military chiclet keyboard (including 3 mouse buttons), fitted with durable polymer keys. It integrates a military IP65 static 38.0mm black hardened resin mechanical trackball (stainless steel trackball optional) with fixed 400DPI, delivering fast, precise and stable cursor movement.
12 function keys F1–F12 are arranged on the top row. The whole unit adopts CNC aluminum alloy front plate with high-quality black titanium spray finish, matched with PC keycaps and military-grade PCB. Adopting carbon-on-gold key switch technology and 1.20mm±0.10mm key stroke, it provides excellent tactile feedback, high-efficiency accurate data input and noise-free operation.
Equipped with FN+CLEAN locking function, the keyboard can be disabled for in-situ cleaning without disconnecting from the host. Adjustable white backlight is standard. Multiple installation methods are optional: high-strength adhesive fixing, top panel mounting holes or thread bolts. It adopts dual USB interface, standard cable length 1.5m/2.0m with customized length available.
Suitable for outdoor direct rain and severe harsh environments such as high humidity, dynamic water, oil, dirt and salt mist. The whole keyboard and trackball fully comply with MIL-STD-461G (EMC/EMI/EMS/ESD) and MIL-STD-810H military environmental standards, satisfying 10 critical military indicators: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency and continuity.Front panel dimension: 350.0mm × 116.0mm

2. Mechanical Data
Keys: 89 keys (including 3 mouse buttons), durable robust polymer keys
Key Travel: 1.20mm±0.10mm
Key Size: Normal key 13.6×13.6mmEnter key 13.6×21.4mmSpace bar 14.0×67.6mm
Actuation Force: 1.0N±0.2N (13.6×13.6mm keys)1.5N±0.2N (13.6×21.4mm keys)
Switch Life: More than 5 million operations
Trackball: IP65 static 38mm mechanical trackball module, 400 DPI
Front Plate: CNC aluminum alloy with black titanium spray-paint
Backlight: Adjustable white backlight
Gross Weight: 2.5KGs

3. Electrical Data
Supply Voltage: DC +5V±5%
Current Rating: 50mA (backlight off)300mA (backlight on)
EMC Compliance: Fully meet MIL-STD-461G (CE101 / CE102 / CS101 / CS106 / CS112 / CS114 / CS115 / CS116 / RE101 / RE102 / RS101 / RS103)
Service Lifespan: More than 5 years
Switch Material: Military PCB with carbon-on-gold key switch technology
Interface: Dual USB
Cable Length: Standard 1.5M / 2.0M, customized length available
OS Compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android

4. Environmental Adaptability
Operating Temperature: -40℃ ~ +75℃
Storage Temperature: -45℃ ~ +85℃
Saline Mist: 96h, IEC60512-6
Damp Heat Test: 21 days at +40℃, IEC 60512-6
Dry Heat Test: 10 days at +85℃, IEC 60512-6
Operating Humidity: 100% RH
Atmospheric Pressure: 60–106Kpa

5. Reliability & Certification
Protection Level: IP65 dynamic (front panel)
Vandal Resistant: IK09
Certification: RoHS, CE, FCC
Military Standard: MIL-STD-461G、MIL-STD-810H
Key Lifespan: More than 5 million actuations
MTBF: 20000H
MTTR: 30min

6. Application
Applicable Scenarios: Vehicle, aerospace, naval, defense, maritime, radar system, industrial console, portable rugged laptop, UAV ground station and other harsh environments.
