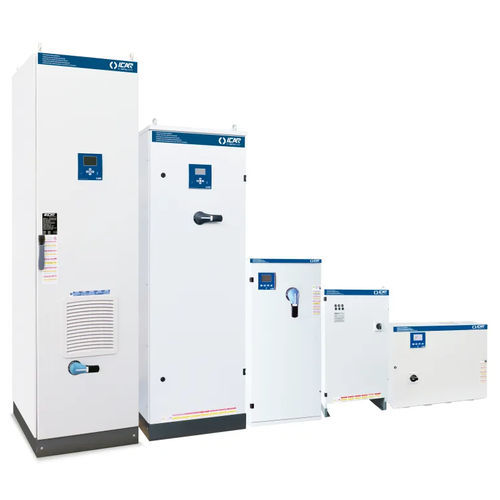

PFC system HP20

Short description
POWER FACTOR CORRECTION SOLUTIONS WITH HIGH GRADIENT METALLIZED POLYPROPYLENE CAPACITORS

Overview
Power factor correction makes it possible to increase energy efficiency, reduce voltage drops and current harmonics, and avoid bill penalties. The HP20 range provides fixed and automatic configurations for industrial installations, available in multiple enclosure and rack options to suit site requirements.

Technical specifications
Nominal voltage Ue: 400-415V
Capacitor nominal voltage Un: 460 V
Maximum operating voltage Umax: 500 V
Frequency: 50 Hz
THDIR%: ≤20%

Fix PFC system - MICROfix (table)
Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight
IB3NLK170050987 | MICROfix | 6 | 5 | 40 | 50 | IP3X | 8
IB3NLK214050987 | MICROfix | 11 | 10 | 40 | 50 | IP3X | 9
IB3NLK219050987 | MICROfix | 16 | 15 | 40 | 50 | IP3X | 12
IB3NLK227050987 | MICROfix | 22 | 20 | 80 | 50 | IP3X | 13
IB3NLK241050987 | MICROfix | 33 | 30 | 80 | 50 | IP3X | 15
IB3NLK254050987 | MICROfix | 44 | 40 | 125 | 50 | IP3X | 18
IB3NLK266050987 | MICROfix | 54 | 50 | 125 | 50 | IP3X | 20

Automatic PFC system - MICROmatic (table)
Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight
IC0JLF214050652 | MICROmatic | 11 | 10.5 | 63 | 50 | IP3X | 12
IC0JLF222050652 | MICROmatic | 18 | 16.5 | 80 | 50 | IP3X | 16
IC0JLF230050652 | MICROmatic | 24 | 22.5 | 80 | 50 | IP3X | 17
IC0JLF238050652 | MICROmatic | 31 | 28.5 | 80 | 50 | IP3X | 20
IC0JLF244050652 | MICROmatic | 36 | 33 | 100 | 50 | IP3X | 22
IC0JLF252050652 | MICROmatic | 42 | 39 | 100 | 50 | IP3X | 24
IC0JLF260050652 | MICROmatic | 49 | 45 | 100 | 50 | IP3X | 26
IC0JLF272050652 | MICROmatic | 58 | 54 | 125 | 50 | IP3X | 29

Automatic PFC system - MINImatic (table)
Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight
IF0JLF280050652 | MINImatic | 65 | 60 | 250 | 9 | IP3X | 41
IF0JLF311250652 | MINImatic | 91 | 84 | 250 | 9 | IP3X | 47
IF0JLF313650652 | MINImatic | 110 | 102 | 250 | 9 | IP3X | 51
IF0JLF316050652 | MINImatic | 130 | 120 | 315 | 9 | IP3X | 54
IF0JLF319250652 | MINImatic | 155 | 144 | 315 | 9 | IP3X | 60
IF0JLF321650652 | MINImatic | 168 | 156 | 400 | 9 | IP3X | 65
IF0JLF324050652 | MINImatic | 194 | 180 | 400 | 9 | IP3X | 69
IF0JLF327250652 | MINImatic | 220 | 204 | 500 | 9 | IP3X | 74

Automatic PFC system - MINImatic IP55 (table)
IJ0JLF280050654 | MINImatic IP55 | 65 | 60 | 250 | 9 | IP55 | 41
IJ0JLF311250654 | MINImatic IP55 | 91 | 84 | 250 | 9 | IP55 | 47
IJ0JLF313650654 | MINImatic IP55 | 110 | 102 | 250 | 9 | IP55 | 51
IJ0JLF316050654 | MINImatic IP55 | 130 | 120 | 315 | 9 | IP55 | 54
IJ0JLF319250654 | MINImatic IP55 | 155 | 144 | 315 | 9 | IP55 | 60
IJ0JLF321650654 | MINImatic IP55 | 168 | 156 | 400 | 9 | IP55 | 65
IJ0JLF324050654 | MINImatic IP55 | 194 | 180 | 400 | 9 | IP55 | 69
IJ0JLF327250654 | MINImatic IP55 | 220 | 204 | 500 | 9 | IP55 | 74

Automatic PFC system - MIDImatic (table)
IL0ULF332050884 | MIDImatic | 259 | 240 | 630 | 25 | IP3X | 230
IL0ULF340050884 | MIDImatic | 324 | 300 | 800 | 30 | IP3X | 250
IL0ULF348050884 | MIDImatic | 389 | 360 | 800 | 30 | IP3X | 280

Automatic PFC system - MULTImatic (table)
IN0NLF332050700 | MULTImatic | 259 | 240 | 630 | 25 | IP4X | 252
IN0NLF340050700 | MULTImatic | 324 | 300 | 800 | 50 | IP4X | 274
IN0NLF348050700 | MULTImatic | 389 | 360 | 800 | 50 | IP4X | 300
IN0NLF356050700 | MULTImatic | 454 | 420 | 1250 | 50 | IP4X | 320
IN0NLF364050700 | MULTImatic | 518 | 480 | 1250 | 50 | IP4X | 340
IN0NLF372050700 | MULTImatic | 583 | 540 | 1250 | 50 | IP4X | 526
IN0NLF380050700 | MULTImatic | 648 | 600 | 2x800 | 50 | IP4X | 552
IN0NLF388050700 | MULTImatic | 713 | 660 | 2x800 | 50 | IP4X | 574
IN0NLF396050700 | MULTImatic | 778 | 720 | 2x800 | 50 | IP4X | 600
IN0NLF410450700 | MULTImatic | 842 | 780 | 2x1250 | 50 | IP4X | 620
IN0NLF411250700 | MULTImatic | 907 | 840 | 2x1250 | 50 | IP4X | 640
IN0NLF412050700 | MULTImatic | 972 | 900 | 2x1250 | 50 | IP4X | 670
IN0NLF412850700 | MULTImatic | 1037 | 960 | 2x1250 | 50 | IP4X | 690
IN0NLF413650700 | MULTImatic | 1102 | 1020 | 2x1250 | 50 | IP4X | 710
IN0NLF414450700 | MULTImatic | 1166 | 1080 | 2x1250 | 50 | IP4X | 730

Automatic PFC system - MULTImatic IP55 (table)
IP0NLF332050700 | MULTImatic IP55 | 259 | 240 | 630 | 25 | IP55 | 252
IP0NLF340050700 | MULTImatic IP55 | 324 | 300 | 800 | 50 | IP55 | 274
IP0NLF348050700 | MULTImatic IP55 | 389 | 360 | 800 | 50 | IP55 | 300
IP0NLF356050700 | MULTImatic IP55 | 454 | 420 | 1250 | 50 | IP55 | 320
IP0NLF364050700 | MULTImatic IP55 | 518 | 480 | 1250 | 50 | IP55 | 340
IP0NLF372050700 | MULTImatic IP55 | 583 | 540 | 1250 | 50 | IP55 | 526
IP0NLF380050700 | MULTImatic IP55 | 648 | 600 | 2x800 | 50 | IP55 | 552
IP0NLF388050700 | MULTImatic IP55 | 713 | 660 | 2x800 | 50 | IP55 | 574
IP0NLF396050700 | MULTImatic IP55 | 778 | 720 | 2x800 | 50 | IP55 | 600
IP0NLF410450700 | MULTImatic IP55 | 842 | 780 | 2x1250 | 50 | IP55 | 620
IP0NLF411250700 | MULTImatic IP55 | 907 | 840 | 2x1250 | 50 | IP55 | 640
IP0NLF412050700 | MULTImatic IP55 | 972 | 900 | 2x1250 | 50 | IP55 | 670
IP0NLF412850700 | MULTImatic IP55 | 1037 | 960 | 2x1250 | 50 | IP55 | 690
IP0NLF413650700 | MULTImatic IP55 | 1102 | 1020 | 2x1250 | 50 | IP55 | 710
IP0NLF414450700 | MULTImatic IP55 | 1166 | 1080 | 2x1250 | 50 | IP55 | 730

Racks - MINIrack (table)
Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | IP degree | Weight
IW0JLK216050000 | MINIrack | 13 | 12 | IP00 | 4
IW0JLK232050000 | MINIrack | 26 | 24 | IP00 | 6
IW0JLK256050000 | MINIrack | 45 | 42 | IP00 | 11
IW0JLK280050000 | MINIrack | 65 | 60 | IP00 | 13
IW0JLK280050268 | MINIrack | 65 | 60 | IP00 | 14

Racks - MULTIrack (table)
IX0NLK280050000 | MULTIrack | 65 | 60 | IP00 | 19
IX0NLK316050000 | MULTIrack | 129 | 120 | IP00 | 27

Racks - EUROrack (table)
IY0JHK230050359 | EUROrack | 26 | 25 | IP00
IY0JHK260050359 | EUROrack | 52 | 50 | IP00
IY0JHK290050359 | EUROrack | 78 | 75 | IP00
IY0JHK312050359 | EUROrack | 104 | 100 | IP00
IY0JHK315050359 | EUROrack | 134 | 125 | IP00
IY0JHK318050359 | EUROrack | 160 | 150 | IP00

Characteristics / technical specifications

• Product family: Power factor correction system

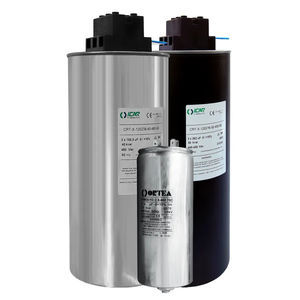

• Capacitor technology: High gradient metallized polypropylene capacitors
• Nominal voltage Ue: 400-415 V
• Capacitor nominal voltage Un: 460 V
• Maximum operating voltage Umax: 500 V
• Frequency: 50 Hz
• THDIR%: ≤20%
• Available configurations: FIX (MICROfix), AUTOMATIC (MICROmatic, MINImatic, MINImatic IP55, MIDImatic, MULTImatic, MULTImatic IP55)
• Available racks: MINIrack, MULTIrack, EUROrack
• IP degrees range: IP00 up to IP55 depending on model
• Load break switch and short-circuit current ratings vary per model (see tables above)
