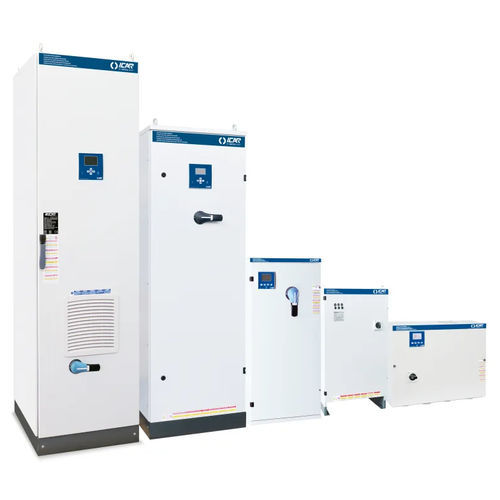

PFC system VP40-60Hz-480V

Short description
Power factor correction solutions using high gradient PLUS metallized polypropylene capacitors. MICROfix modules are designed for 480V, 60Hz systems and provide selectable reactive power steps for industrial compensation of reactive loads.

MICROfix - Available configurations
Part number | Name | Reactive power Ue=480V (kVAr) | Load break switch (A) | Icc | IP degree | Weight (kg)
IB2TGG150060987 | MICROfix | 5 | 40 | 50 | IP3X | 14
IB2TGG210060987 | MICROfix | 10 | 40 | 50 | IP3X | 15
IB2TGG215060987 | MICROfix | 15 | 40 | 50 | IP3X | 17
IB2TGG220060987 | MICROfix | 20 | 80 | 50 | IP3X | 21

Characteristics / Technical specifications

• Nominal voltage Ue: 480 V
• Nominal voltage of the capacitor Un: 550 V
• Maximum operating voltage Umax: 600 V
• Frequency: 60 Hz
• THDIR%: ≤20%
• Intended use: power factor correction with metallized polypropylene (High Gradient PLUS) capacitors
• Load-break switch ratings: 40 A (models 5–15 kVAr), 80 A (model 20 kVAr)
• Icc: 50
• Protection degree: IP3X
