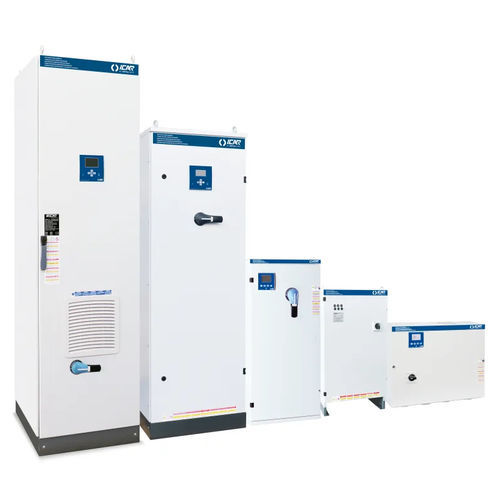

PFC system HP30

Overview
Power factor correction (PFC) solutions based on high-gradient metallized polypropylene capacitors, providing reactive power compensation for industrial installations (Ue 400-415V).

Product description
The HP30 range includes fixed and automatic PFC systems and rack solutions using metallized polypropylene capacitors rated for 400-415V networks. Available configurations cover a wide reactive power range and several IP protection classes to suit indoor and outdoor installations.

Technical specifications (summary)
Nominal voltage Ue: 400-415V
Nominal capacitor voltage Un: 550 V
Maximum operating voltage Umax: 600 V
Frequency: 50 Hz
THDIR%: ≤27%

Fix PFC system — SUPERriphaso (table)
Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | IP degree | List card available
IA3DRK182550001 | SUPERriphaso | 5 | 4.4 | IP40 | yes
IA3DRK216550001 | SUPERriphaso | 10 | 8.8 | IP40 | yes

Automatic PFC system — MINImatic (table)
Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight | List card available
IF0TRF280050652 | MINImatic | 49 | 45 | 125 | 9 | IP3X | 41 | yes
IF0TRF311250652 | MINImatic | 68 | 63 | 125 | 9 | IP3X | 47 | yes
IF0TRF313650652 | MINImatic | 82 | 76 | 250 | 9 | IP3X | 51 | yes
IF0TRF316050652 | MINImatic | 97 | 90 | 250 | 9 | IP3X | 54 | yes
IF0TRF319250652 | MINImatic | 117 | 108 | 250 | 9 | IP3X | 60 | yes
IF0TRF321650652 | MINImatic | 126 | 117 | 315 | 9 | IP3X | 65 | yes
IF0TRF324050652 | MINImatic | 146 | 135 | 315 | 9 | IP3X | 69 | yes

Automatic PFC system — MINImatic IP55 (table)
Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight | List card available
IJ0TRF280050654 | MINImatic IP55 | 49 | 45 | 125 | 9 | IP55 | 41 | yes
IJ0TRF311250654 | MINImatic IP55 | 68 | 63 | 125 | 9 | IP55 | 47 | yes
IJ0TRF313650654 | MINImatic IP55 | 82 | 76 | 250 | 9 | IP55 | 51 | yes
IJ0TRF316050654 | MINImatic IP55 | 97 | 90 | 250 | 9 | IP55 | 54 | yes
IJ0TRF319250654 | MINImatic IP55 | 117 | 108 | 250 | 9 | IP55 | 60 | yes
IJ0TRF321650654 | MINImatic IP55 | 126 | 117 | 315 | 9 | IP55 | 65 | yes
IJ0TRF324050654 | MINImatic IP55 | 146 | 135 | 315 | 9 | IP55 | 69 | yes
IJ0TRF327250654 | MINImatic IP55 | 165 | 153 | 400 | 9 | IP55 | 78 | yes
IJ0TRF332050654 | MINImatic IP55 | 194 | 180 | 400 | 9 | IP55 | 88 | yes

Automatic PFC system — MULTImatic (table)
Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight | List card available
IN2DRF332050700 | MULTImatic | 194 | 180 | 400 | 25 | IP4X | 252 | yes
IN2DRF340050700 | MULTImatic | 243 | 225 | 630 | 25 | IP4X | 274 | yes
IN2DRF348050700 | MULTImatic | 292 | 270 | 630 | 25 | IP4X | 300 | yes
IN2DRF356050700 | MULTImatic | 340 | 315 | 800 | 50 | IP4X | 320 | yes
IN2DRF364050700 | MULTImatic | 389 | 360 | 800 | 50 | IP4X | 340 | yes
IN2DRF372050700 | MULTImatic | 437 | 405 | 1250 | 50 | IP4X | 526 | yes
IN2DRF380050700 | MULTImatic | 486 | 450 | 1250 | 50 | IP4X | 552 | yes
IN2DRF388050700 | MULTImatic | 535 | 495 | 1250 | 50 | IP4X | 574 | yes
IN2DRF396050700 | MULTImatic | 583 | 540 | 1250 | 50 | IP4X | 600 | yes
IN2DRF410450700 | MULTImatic | 632 | 585 | 2x800 | 50 | IP4X | 620 | yes
IN2DRF411250700 | MULTImatic | 680 | 630 | 2x800 | 50 | IP4X | 640 | yes
IN2DRF412050700 | MULTImatic | 729 | 675 | 2x800 | 50 | IP4X | 660 | yes
IN2DRF412850700 | MULTImatic | 778 | 720 | 2x800 | 50 | IP4X | 680 | yes
IN2DRF413650700 | MULTImatic | 826 | 765 | 2x1250 | 50 | IP4X | 705 | yes
IN2DRF414450700 | MULTImatic | 875 | 810 | 2x1250 | 50 | IP4X | 730 | yes
IN2DRF415250700 | MULTImatic | 923 | 855 | 2x1250 | 50 | IP4X | 755 | yes
IN2DRF416050700 | MULTImatic | 972 | 900 | 2x1250 | 50 | IP4X | 780 | yes
IN2DRF416850700 | MULTImatic | 1021 | 945 | 2x1250 | 50 | IP4X | 805 | yes
IN2DRF417650700 | MULTImatic | 1069 | 990 | 2x1250 | 50 | IP4X | 830 | yes
IN2DRF418450700 | MULTImatic | 1118 | 1035 | 2x1250 | 50 | IP4X | 855 | yes
IN2DRF419250700 | MULTImatic | 1166 | 1080 | 2x1250 | 50 | IP4X | 880 | yes

Automatic PFC system — MULTImatic IP55 (table)
Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight | List card available
IP2DRF332050700 | MULTImatic IP55 | 194 | 180 | 400 | 25 | IP55 | 252 | yes
IP2DRF340050700 | MULTImatic IP55 | 243 | 225 | 630 | 25 | IP55 | 274 | yes
IP2DRF348050700 | MULTImatic IP55 | 292 | 270 | 630 | 25 | IP55 | 300 | yes
IP2DRF356050700 | MULTImatic IP55 | 340 | 315 | 800 | 50 | IP55 | 320 | yes
IP2DRF364050700 | MULTImatic IP55 | 389 | 360 | 800 | 50 | IP55 | 340 | yes
IP2DRF372050700 | MULTImatic IP55 | 437 | 405 | 1250 | 50 | IP55 | 526 | yes
IP2DRF380050700 | MULTImatic IP55 | 486 | 450 | 1250 | 50 | IP55 | 552 | yes
IP2DRF388050700 | MULTImatic IP55 | 535 | 495 | 1250 | 50 | IP55 | 574 | yes
IP2DRF396050700 | MULTImatic IP55 | 583 | 540 | 1250 | 50 | IP55 | 600 | yes
IP2DRF410450700 | MULTImatic IP55 | 632 | 585 | 2x800 | 50 | IP55 | 620 | yes
IP2DRF411250700 | MULTImatic IP55 | 680 | 630 | 2x800 | 50 | IP55 | 640 | yes
IP2DRF412050700 | MULTImatic IP55 | 729 | 675 | 2x800 | 50 | IP55 | 660 | yes
IP2DRF412850700 | MULTImatic IP55 | 778 | 720 | 2x800 | 50 | IP55 | 680 | yes
IP2DRF413650700 | MULTImatic IP55 | 826 | 765 | 2x1250 | 50 | IP55 | 705 | yes
IP2DRF414450700 | MULTImatic IP55 | 875 | 810 | 2x1250 | 50 | IP55 | 730 | yes
IP2DRF415250700 | MULTImatic IP55 | 923 | 855 | 2x1250 | 50 | IP55 | 755 | yes
IP2DRF416050700 | MULTImatic IP55 | 972 | 900 | 2x1250 | 50 | IP55 | 780 | yes
IP2DRF416850700 | MULTImatic IP55 | 1021 | 945 | 2x1250 | 50 | IP55 | 805 | yes
IP2DRF417650700 | MULTImatic IP55 | 1069 | 990 | 2x1250 | 50 | IP55 | 830 | yes
IP2DRF418450700 | MULTImatic IP55 | 1118 | 1035 | 2x1250 | 50 | IP55 | 855 | yes
IP2DRF419250700 | MULTImatic IP55 | 1166 | 1080 | 2x1250 | 50 | IP55 | 880 | yes

Racks (table)
Category: MINIrack — Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | IP degree | List card available
IW0SRK216050000 | MINIrack | 9.5 | 9 | IP00 | yes
IW0SRK232050000 | MINIrack | 19 | 18 | IP00 | yes
IW0SRK2560050000 | MINIrack | 34 | 32 | IP00 | yes
IW0SRK280050268 | MINIrack | 47 | 45 | IP00 | yes

Category: MULTIrack — Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | IP degree | List card available
IX2DRK280050000 | MULTIrack | 47 | 45 | IP00 | yes
IX2DRK316050000 | MULTIrack | 95 | 90 | IP00 | yes

Category: EUROrack — Part number | Name | Reactive power Ue=415V | IP degree | List card available
IY0SQK240050359 | EUROrack | 25 | IP00 | yes
IY0SQK280050359 | EUROrack | 50 | IP00 | yes
IY0SQK312050805 | EUROrack | 75 | IP00 | yes
IY0SQK316050359 | EUROrack | 100 | IP00 | yes

Notes
Multiple configurations and power ratings are available across SUPERriphaso (fixed), MINImatic, MINImatic IP55, MULTImatic and MULTImatic IP55 (automatic) and rack solutions. Each variant includes part number, reactive power at Ue=415V and Ue=400V, switching device ratings, short-circuit current rating (Icc), IP degree and weight where applicable; datasheets are available for listed references.

Characteristics / technical specifications

• Nominal voltage Ue: 400-415V
• Nominal capacitor voltage Un: 550 V
• Maximum operating voltage Umax: 600 V
• Frequency: 50 Hz
• THDIR%: ≤27%
• Available configurations: SUPERriphaso (fixed PFC), MINImatic, MINImatic IP55, MULTImatic, MULTImatic IP55
• Rack solutions: MINIrack, MULTIrack, EUROrack
• Reactive power options: from single-digit kVAr up to >1000 kVAr depending on configuration
• Protection degrees: IP00, IP3X, IP4X, IP40, IP55 depending on model
• Switchgear/load break switch ratings and Icc vary by model and configuration
