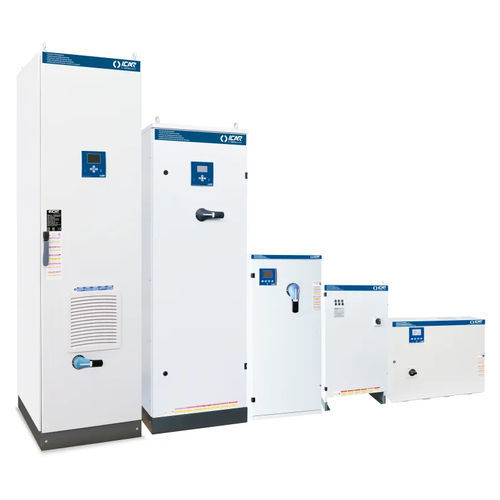

PFC system VP20

Overview
Modular power factor correction solutions based on high‑gradient metallized polypropylene plus capacitors. Available as fixed banks and automatic systems in multiple protection classes and rack configurations. Suitable for industrial installations with supply voltage 400–415 V.

Technical specifications
Nominal system voltage Ue: 400–415 V
Capacitor nominal voltage Un: 460 V
Maximum capacitor operating voltage Umax: 500 V
Frequency: 50 Hz
THDIR (total harmonic distortion of current): ≤ 27%

Fixed PFC system - SUPERriphaso
Part number | Name | Reactive power Ue=400V (kVAr) | IP degree | Weight (kg) | List card available
IA3ZLK175050001 | SUPERriphaso | 5.5 | IP40 | 2.1

Automatic PFC system - MINImatic
Part number | Name | Reactive power Ue=415V (kVAr) | Reactive power Ue=400V (kVAr) | Load break switch (A) | Icc | IP degree | Weight (kg) | List card available
IF2ZLF237550652 | MINImatic | 30 | 28 | 125 | 9 | IP3X | 81
IF2ZLF252550652 | MINImatic | 42 | 39 | 125 | 9 | IP3X | 84
IF2ZLF275050652 | MINImatic | 60 | 56 | 250 | 9 | IP3X | 94
IF2ZLF290050652 | MINImatic | 73 | 68 | 250 | 9 | IP3X | 106
IF2ZLF311250652 | MINImatic | 90 | 84 | 250 | 9 | IP3X | 115
IF2ZLF313550652 | MINImatic | 108 | 101 | 400 | 9 | IP3X | 126
IF2ZLF315050652 | MINImatic | 120 | 112 | 400 | 9 | IP3X | 132

Automatic PFC system - MINImatic IP55
Part number | Name | Reactive power Ue=415V (kVAr) | Reactive power Ue=400V (kVAr) | Load break switch (A) | Icc | IP degree | Weight (kg) | List card available
IJ2ZLF237550654 | MINImatic IP55 | 30 | 28 | 125 | 9 | IP55 | 81
IJ2ZLF254550654 | MINImatic IP55 | 42 | 39 | 125 | 9 | IP55 | 84
IJ2ZLF275050654 | MINImatic IP55 | 60 | 56 | 250 | 9 | IP55 | 94
IJ2ZLF290050654 | MINImatic IP55 | 73 | 68 | 250 | 9 | IP55 | 106
IJ2ZLF311250654 | MINImatic IP55 | 90 | 84 | 250 | 9 | IP55 | 115
IJ2ZLF313550654 | MINImatic IP55 | 108 | 101 | 400 | 9 | IP55 | 126
IJ2ZLF315050654 | MINImatic IP55 | 120 | 112 | 400 | 9 | IP55 | 132

Automatic PFC system - MULTImatic
Part number | Name | Reactive power Ue=415V (kVAr) | Reactive power Ue=400V (kVAr) | Load break switch (A) | Icc | IP degree | Weight (kg) | List card available
IN2ZLF316550700 | MULTImatic | 133 | 124 | 400 | 25 | IP4X | 240
IN2ZLF320650700 | MULTImatic | 166 | 155 | 400 | 25 | IP4X | 280
IN2ZLF324850700 | MULTImatic | 199 | 186 | 630 | 25 | IP4X | 300
IN2ZLF328950700 | MULTImatic | 232 | 217 | 630 | 25 | IP4X | 340
IN2ZLF333050700 | MULTImatic | 265 | 248 | 630 | 25 | IP4X | 360
IN2ZLF337150700 | MULTImatic | 297 | 278 | 630 | 25 | IP4X | 400
IN2ZLF341350700 | MULTImatic | 331 | 309 | 800 | 50 | IP4X | 420
IN2ZLF345450700 | MULTImatic | 364 | 340 | 800 | 50 | IP4X | 490
IN2ZLF349550700 | MULTImatic | 397 | 371 | 800 | 50 | IP4X | 505
IN2ZLF353650700 | MULTImatic | 430 | 402 | 2x630 | 25 | IP4X | 640
IN2ZLF357850700 | MULTImatic | 463 | 433 | 2x630 | 25 | IP4X | 660
IN2ZLF361950700 | MULTImatic | 496 | 464 | 2x630 | 25 | IP4X | 700
IN2ZLF366050700 | MULTImatic | 530 | 495 | 2x630 | 25 | IP4X | 720
IN2ZLF370150700 | MULTImatic | 563 | 526 | 2x630 | 25 | IP4X | 740
IN2ZLF374350700 | MULTImatic | 596 | 557 | 2x800 | 50 | IP4X | 760
IN2ZLF378450700 | MULTImatic | 628 | 587 | 2x800 | 50 | IP4X | 820
IN2ZLF382550700 | MULTImatic | 662 | 619 | 2x800 | 50 | IP4X | 840
IN2ZLF390850700 | MULTImatic | 730 | 682 | 2x800 | 50 | IP4X | 980
IN2ZLF399050700 | MULTImatic | 796 | 744 | 2x800 | 50 | IP4X | 1010

Automatic PFC system - MULTImatic IP55
Part number | Name | Reactive power Ue=415V (kVAr) | Reactive power Ue=400V (kVAr) | Load break switch (A) | Icc | IP degree | Weight (kg) | List card available
IP2ZLF316550700 | MULTImatic IP55 | 133 | 124 | 400 | 25 | IP55 | 240
IP2ZLF320650700 | MULTImatic IP55 | 166 | 155 | 400 | 25 | IP55 | 280
IP2ZLF324850700 | MULTImatic IP55 | 199 | 186 | 630 | 25 | IP55 | 300
IP2ZLF328950700 | MULTImatic IP55 | 232 | 217 | 630 | 25 | IP55 | 340
IP2ZLF333050700 | MULTImatic IP55 | 265 | 248 | 630 | 25 | IP55 | 360
IP2ZLF337150700 | MULTImatic IP55 | 297 | 278 | 630 | 25 | IP55 | 400
IP2ZLF341350700 | MULTImatic IP55 | 331 | 309 | 800 | 50 | IP55 | 420
IP2ZLF345450700 | MULTImatic IP55 | 364 | 340 | 800 | 50 | IP55 | 490
IP2ZLF349550700 | MULTImatic IP55 | 397 | 371 | 800 | 50 | IP55 | 505
IP2ZLF353650700 | MULTImatic IP55 | 430 | 402 | 2x630 | 25 | IP55 | 640
IP2ZLF357850700 | MULTImatic IP55 | 463 | 433 | 2x630 | 25 | IP55 | 660
IP2ZLF361950700 | MULTImatic IP55 | 496 | 464 | 2x630 | 25 | IP55 | 700
IP2ZLF366050700 | MULTImatic IP55 | 530 | 495 | 2x630 | 25 | IP55 | 720
IP2ZLF370150700 | MULTImatic IP55 | 563 | 526 | 2x630 | 25 | IP55 | 740
IP2ZLF374350700 | MULTImatic IP55 | 596 | 557 | 2x800 | 50 | IP55 | 760
IP2ZLF378450700 | MULTImatic IP55 | 628 | 587 | 2x800 | 50 | IP55 | 820
IP2ZLF382550700 | MULTImatic IP55 | 662 | 619 | 2x800 | 50 | IP55 | 840
IP2ZLF390850700 | MULTImatic IP55 | 730 | 682 | 2x800 | 50 | IP55 | 980
IP2ZLF399050700 | MULTImatic IP55 | 796 | 744 | 2x800 | 50 | IP55 | 1010

Racks - MINIrack
Part number | Name | Reactive power Ue=415V (kVAr) | Reactive power Ue=400V (kVAr) | IP degree | Weight (kg) | List card available
IW2ZLF175050000 | MINIrack | 6 | 5.6 | IP00 | 10
IW2ZLF215050000 | MINIrack | 12 | 11.2 | IP00 | 11
IW2ZLF222550000 | MINIrack | 18 | 16.8 | IP00 | 13
IW2ZLF230050000 | MINIrack | 24 | 22.4 | IP00 | 14
IW2ZLF237550000 | MINIrack | 32 | 30 | IP00 | 16

Racks - MULTIrack
Part number | Name | Reactive power Ue=415V (kVAr) | Reactive power Ue=400V (kVAr) | IP degree | Weight (kg) | List card available
IX2ZLF241250000 | MULTIrack | 33 | 31 | IP00 | 19
IX2ZLF282550000 | MULTIrack | 70 | 62 | IP00 | 27

Technical features

• Type: Power factor correction systems (fixed and automatic)
• Capacitor type: high‑gradient metallized polypropylene plus capacitors
• Supply nominal voltage range: 400–415 V
• Capacitor nominal voltage: 460 V
• Maximum capacitor operating voltage: 500 V
• Frequency: 50 Hz
• THDIR (Total Harmonic Distortion of current): ≤ 27%
• Protection degrees vary by model (IP00 / IP3X / IP4X / IP40 / IP55)
• Multiple chassis / rack options (MINIrack, MULTIrack) and system sizes (MINImatic, MULTImatic, SUPERriphaso)
