PFC module FH30.S

Product overview

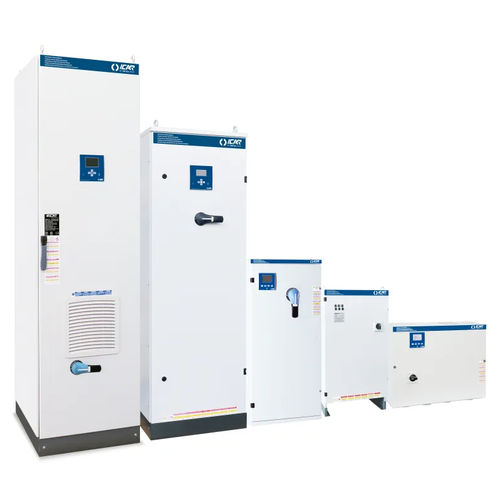

Power factor correction solutions using high-gradient metallized polypropylene capacitors, designed for industrial networks at 400–415 V. MULTImatic variants provide a range of reactive powers with integrated switching and protection options.

Technical specifications (summary)
Nominal voltage Ue: 400-415 V
Nominal voltage of the capacitor Un: 550 V
Maximum operating voltage Umax: 600 V
Frequency: 50 Hz
THDIR%: 100%
I250Hz%: >25%
THDVR%: ≤6%
Detuning frequency fD: 135 Hz

MULTImatic — Available variants (selection)
Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight
IU7JFF260050872 | MULTImatic | 65 | 60 | 250 | 17 | IP4X | 260
IU7JFF310050872 | MULTImatic | 107 | 100 | 250 | 17 | IP4X | 300
IU7JFF314050872 | MULTImatic | 150 | 140 | 400 | 25 | IP4X | 350
IU7JFF318050872 | MULTImatic | 193 | 180 | 400 | 25 | IP4X | 380
IU7JFF322050872 | MULTImatic | 235 | 220 | 630 | 25 | IP4X | 400
IU7JFF324050872 | MULTImatic | 257 | 240 | 630 | 25 | IP4X | 420
IU7JFF328050872 | MULTImatic | 300 | 280 | 2x400 | 25 | IP4X | 670
IU7JFF332050872 | MULTImatic | 342 | 320 | 2x400 | 25 | IP4X | 700
IU7JFF336050872 | MULTImatic | 385 | 360 | 2x630 | 25 | IP4X | 725
IU7JFF340050872 | MULTImatic | 428 | 400 | 2x630 | 25 | IP4X | 760
IU7JFF344050872 | MULTImatic | 471 | 440 | 2x630 | 25 | IP4X | 780
IU7JFF348050872 | MULTImatic | 514 | 480 | 2x630 | 25 | IP4X | 800

Characteristics / technical specifications

• System: power factor correction solutions using high-gradient metallized polypropylene capacitors.
• Supply nominal voltage Ue: 400-415 V.
• Capacitor nominal voltage Un: 550 V; maximum operating voltage Umax: 600 V.
• Operating frequency: 50 Hz.
• THDIR (allowed current harmonic distortion): 100%.
• I250Hz (current at 250 Hz): >25%.
• THDVR (voltage harmonic distortion): ≤6%.
• Detuning frequency fD: 135 Hz.
• Available MULTImatic variants covering reactive powers from 60 to 514 (kVAr depending on Ue) with assorted load-break switch and Icc ratings; IP4X protection; weight varies by reference.
• Datasheets / listing cards (PDF) available for each MULTImatic reference.
