PFC system FH40-60Hz-480V

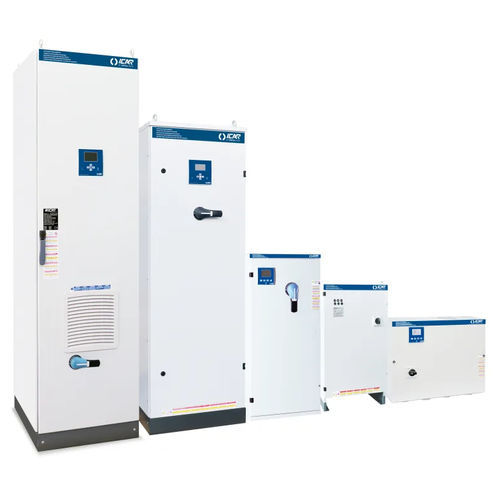

PFC system - FH40-60Hz-480V - Ortea Next
PFC system - FH40-60Hz-480V - Ortea Next
Add to favorites
Compare this product
Go to the Ortea Next website for more information

Description

Product overview
Detuned power factor correction solution using high-gradient metallized polypropylene capacitors, designed for operation at Ue = 480 V and 60 Hz.

Product family
  • MULTImatic automatic detuned power factor correction systems designed for operation at Ue = 480V; available in multiple reactive power ratings and configurations.

Available variants (table)
  • Part number | Reactive power Ue=480V (kvar) | Load break switch | Icc (kA) | IP degree | Weight (kg)
  • IN7TGG310060701 | 100 | 250 | 15 | IP4X | 212
  • IN7TGG314060701 | 140 | 250 | 15 | IP4X | 235
  • IN7TGG318060701 | 180 | 400 | 15 | IP4X | 277
  • IN7TGG322060701 | 220 | 400 | 15 | IP4X | 295
  • IN7TGG326060701 | 260 | 630 | 28 | IP4X | 343
  • IN7TGG330060701 | 300 | 630 | 28 | IP4X | 373
  • IN7TGG334060701 | 340 | 630 | 28 | IP4X | 409
  • IN7TGG338060701 | 380 | 800 | 28 | IP4X | 437
  • IN7TGG342060701 | 420 | 800 | 28 | IP4X | 491
  • IN7TGG346060701 | 460 | 800 | 28 | IP4X | 512
  • IN7TGG350060701 | 500 | 2x630 | 28 | IP4X | 644
  • IN7TGG356060701 | 560 | 2x630 | 28 | IP4X | 678
  • IN7TGG364060701 | 640 | 2x630 | 28 | IP4X | 741
  • IN7TGG372060701 | 720 | 2x800 | 28 | IP4X | 821
  • IN7TGG380060701 | 800 | 2x800 | 28 | IP4X | 884
  • IN7TGG388060701 | 880 | 2x1250 | 50 | IP4X | 962
  • IN7TGG396060701 | 960 | 2x1250 | 50 | IP4X | 1008


Notes on variants
  • Each variant is named MULTImatic and differs by reactive power rating and switching/protection components (load break switch rating, Icc, weight).
  • List cards (detailed datasheets) are available for each part number (product PDF datasheets corresponding to each variant).


Technical specifications
  • Nominal voltage Ue: 480 V
  • Nominal voltage of the capacitor Un: 630 V
  • Maximum operating voltage Umax: 693 V
  • Frequency: 60 Hz
  • THDIR%: 100%
  • I250Hz%: ≤25%
  • THDVR%: ≤6%
  • Detuning frequency fD: 216 Hz
