PFC system FV25V

PFC system - FV25V - Ortea Next
PFC system - FV25V - Ortea Next
Add to favorites
Compare this product
Go to the Ortea Next website for more information

Description

Product overview

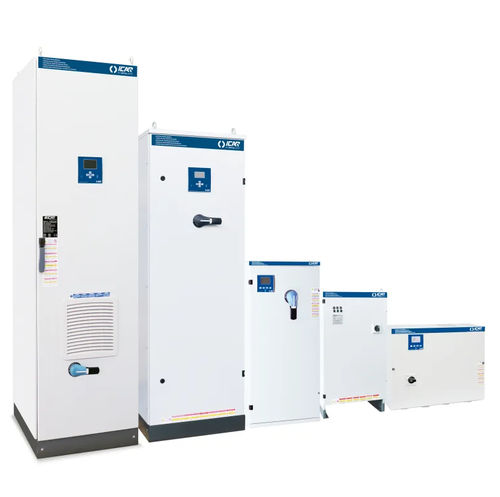

FV25V - Power factor correction solutions with high gradient metallized polypropylene plus capacitors. Designed to increase energy efficiency, reduce voltage drops and current harmonics, and avoid bill penalties.

Detuned automatic PFC system - MULTImatic (available configurations)
Part number | Name | Reactive power (Ue=400V) | Load break switch | Icc | IP degree | Weight | Datasheet
IN5ZFF288050703 | MULTImatic | 88 | 250 | 17 | IP4X | 250 | Datasheet available
IN5ZFF313850703 | MULTImatic | 138 | 400 | 25 | IP4X | 315 | Datasheet available
IN5ZFF317550703 | MULTImatic | 175 | 400 | 25 | IP4X | 380 | Datasheet available
IN5ZFF322550703 | MULTImatic | 225 | 630 | 25 | IP4X | 460 | Datasheet available
IN5ZFF327550703 | MULTImatic | 275 | 630 | 25 | IP4X | 520 | Datasheet available
IN5ZFF335050703 | MULTImatic | 350 | 2x400 | 25 | IP4X | 740 | Datasheet available
IN5ZFF340050703 | MULTImatic | 400 | 2x630 | 25 | IP4X | 800 | Datasheet available
IN5ZFF345050703 | MULTImatic | 450 | 2x630 | 25 | IP4X | 860 | Datasheet available
IN5ZFF350050703 | MULTImatic | 500 | 2x630 | 25 | IP4X | 920 | Datasheet available
IN5ZFF355050703 | MULTImatic | 550 | 2x800 | 50 | IP4X | 980 | Datasheet available
IN5ZFF360050703 | MULTImatic | 600 | 2x800 | 50 | IP4X | 1040 | Datasheet available

Detuned racks - MULTIrack (available configuration)
Part number | Name | Reactive power (Ue=400V) | Weight | Datasheet
IX5ZFF250050526 | MULTIrack | 50 | 46 | Datasheet available

Technical characteristics / specifications
  • Nominal voltage Ue: 400 V
  • Nominal voltage of the capacitor Un: 460 V
  • Maximum operating voltage Umax: 500 V
  • Frequency: 50 Hz
  • THDIR%: 100%
  • I250Hz%: ≤25%
  • THDVR%: ≤8%
  • Detuning frequency fD: 180
  • Capacitor technology: high gradient metallized polypropylene plus capacitors
