PFC system FV25

Overview

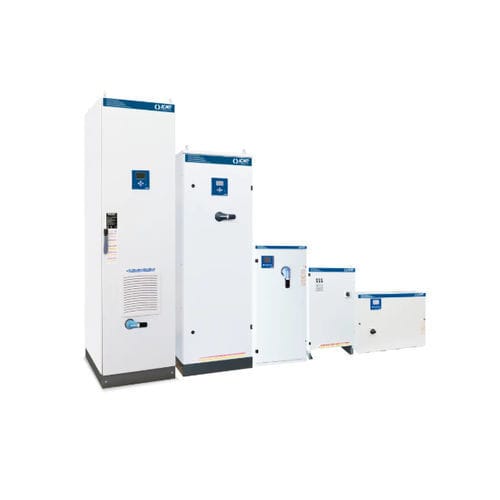

Power factor correction solutions using high gradient metallized polypropylene PLUS capacitors, available in fixed, automatic and rack configurations for low-voltage networks.

Technical specifications
Series / model: FV25
Capacitor technology: high gradient metallized polypropylene PLUS capacitors
Nominal system voltage (Ue): 400 V
Nominal capacitor voltage (Un): 460 V
Maximum operating voltage (Umax): 500 V
Operating frequency: 50 Hz
THDIR%: 100%
I at 250 Hz (I250Hz%): ≤25%
THDVR%: ≤6%
Detuning frequency (fD): 180 Hz

Product families and representative models — MICROfix (detuned fixed PFC)
IB5AFF212550988 | MICROfix | 12.5 kVAr | Icc 50 | IP3X | 30 kg
IB5AFF225050988 | MICROfix | 25 kVAr | Icc 50 | IP3X | 36 kg
IB5AFF250050988 | MICROfix | 50 kVAr | Icc 50 | IP3X | 41 kg

Product families and representative models — MULTImatic (detuned automatic PFC)
IN5VFF288050701 | MULTImatic | 88 kVAr | load break 250 | Icc 17 | IP4X | 250 kg
IN5VFF322550701 | MULTImatic | 225 kVAr | load break 630 | Icc 25 | IP4X | 460 kg
IN5VFF340050701 | MULTImatic | 400 kVAr | load break 2x630 | Icc 25 | IP4X | 800 kg
IN5VFF390050701 | MULTImatic | 900 kVAr | load break 3x800 | Icc 50 | IP4X | 1560 kg

Product families and representative models — MULTImatic IP55 (detuned automatic PFC, IP55)
IP5VFF288050701 | MULTImatic IP55 | 88 kVAr | load break 250 | Icc 17 | IP55 | 250 kg
IP5VFF322550701 | MULTImatic IP55 | 225 kVAr | load break 630 | Icc 25 | IP55 | 460 kg
IP5VFF340050701 | MULTImatic IP55 | 400 kVAr | load break 2x630 | Icc 25 | IP55 | 800 kg
IP5VFF390050701 | MULTImatic IP55 | 900 kVAr | load break 3x800 | Icc 50 | IP55 | 1560 kg

Product families and representative models — MULTIrack (detuned racks)
IX5VFF225050010 | MULTIrack | 25 kVAr | IP00
IX5VFF237550010 | MULTIrack | 37.5 kVAr | IP00
IX5VFF250050010 | MULTIrack | 50 kVAr | IP00

Notes
Variants cover a wide range of reactive powers (from 12.5 kVAr to 900 kVAr). Technical data cards (PDF) are available for each reference. Selection depends on required reactive power, short-circuit current rating (Icc) and IP class.

Characteristics / technical specifications

• Series / model: FV25
• Capacitor technology: high gradient metallized polypropylene PLUS capacitors
• Nominal system voltage (Ue): 400 V
• Nominal capacitor voltage (Un): 460 V
• Maximum operating voltage (Umax): 500 V
• Operating frequency: 50 Hz
• THDIR%: 100%
• I at 250 Hz (I250Hz%): ≤25%
• THDVR%: ≤6%
• Detuning frequency (fD): 180 Hz
