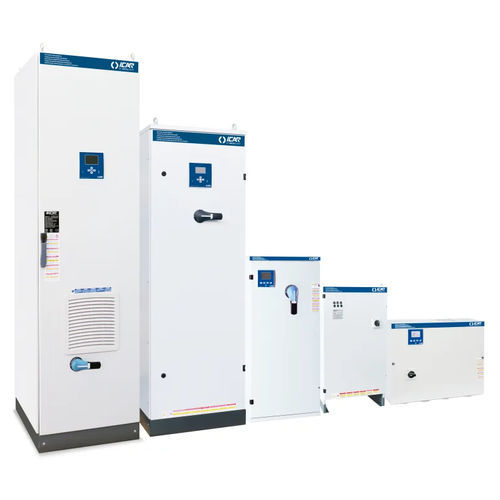

PFC system HP10-60Hz-230V

Overview
The HP10 product family provides power factor correction (PFC) solutions based on high-gradient metallized polypropylene capacitors for 230 V, 60 Hz networks. Available as fixed banks and automatic banks in multiple series (MICROfix, MICROmatic, MINImatic, MULTImatic). Key electrical characteristics include capacitor nominal voltage Un = 350 V, maximum operating voltage Umax = 385 V and THDIR ≤ 20%. These systems are specified with recommended load break switch ratings, short-circuit current (Icc) values and IP degrees to support industrial installation planning.

Available configurations
Fixed PFC — MICROfix (examples)
Part number | Name | Reactive power Ue=230V (kVAr) | Load break switch (A) | Icc | IP degree | Weight (kg)
IB3DBB160060987 | MICROfix | 6 | 40 | 50 | IP3X | 12
IB3DBB180060987 | MICROfix | 8 | 40 | 50 | IP3X | 13
IB3DBB212060987 | MICROfix | 12 | 80 | 50 | IP3X | 15
IB3DBB216060987 | MICROfix | 16 | 80 | 50 | IP3X | 18
IB3DBB220060987 | MICROfix | 20 | 80 | 50 | IP3X | 20

Automatic PFC — MICROmatic (examples)
Part number | Name | Reactive power Ue=230V (kVAr) | Load break switch (A) | Icc | IP degree | Weight (kg)
IC0ABB150060652 | MICROmatic | 5 | 63 | 50 | IP3X | 12
IC0ABB175060652 | MICROmatic | 7.5 | 63 | 50 | IP3X | 13
IC0ABB210060652 | MICROmatic | 10 | 80 | 50 | IP3X | 16
IC0ABB213060652 | MICROmatic | 13 | 80 | 50 | IP3X | 14
IC0ABB217060652 | MICROmatic | 17 | 80 | 50 | IP3X | 17
IC0ABB220060652 | MICROmatic | 20 | 100 | 50 | IP3X | 18
IC0ABB223060652 | MICROmatic | 23 | 100 | 50 | IP3X | 20
IC0ABB227060652 | MICROmatic | 27 | 100 | 50 | IP3X | 22

Automatic PFC — MINImatic (examples)
Part number | Name | Reactive power Ue=230V (kVAr) | Load break switch (A) | Icc | IP degree | Weight (kg)
IF0ABB230060652 | MINImatic | 30 | 250 | 9 | IP3X | 41
IF0ABB242060652 | MINImatic | 42 | 250 | 9 | IP3X | 47
IF0ABB251060652 | MINImatic | 51 | 315 | 9 | IP3X | 51
IF0ABB262060652 | MINImatic | 62 | 315 | 9 | IP3X | 54
IF0ABB272060652 | MINImatic | 72 | 400 | 9 | IP3X | 60
IF0ABB278060652 | MINImatic | 78 | 500 | 9 | IP3X | 65
IF0ABB290060652 | MINImatic | 90 | 500 | 9 | IP3X | 69

Automatic PFC — MULTImatic (examples)
Part number | Name | Reactive power Ue=230V (kVAr) | Load break switch (A) | Icc | IP degree | Weight (kg)
IN0ABB312060700 | MULTImatic | 120 | 800 | 50 | IP4X | 190
IN0ABB315060700 | MULTImatic | 150 | 1250 | 50 | IP4X | 210
IN0ABB318060700 | MULTImatic | 180 | 1250 | 50 | IP4X | 230
IN0ABB321060700 | MULTImatic | 210 | 1250 | 50 | IP4X | 270
IN0ABB324060700 | MULTImatic | 240 | 2x800 | 50 | IP4X | 420
IN0ABB327060700 | MULTImatic | 270 | 2x800 | 50 | IP4X | 500
IN0ABB330060700 | MULTImatic | 300 | 2x1250 | 50 | IP4X | 520
IN0ABB333060700 | MULTImatic | 330 | 2x1250 | 50 | IP4X | 560
IN0ABB336060700 | MULTImatic | 360 | 2x1250 | 50 | IP4X | 580
IN0ABB339060700 | MULTImatic | 390 | 2x1250 | 50 | IP4X | 620
IN0ABB342060700 | MULTImatic | 420 | 2x1250 | 50 | IP4X | 660

Technical specifications
Nominal voltage Ue: 230 V
Nominal voltage of the capacitor Un: 350 V
Maximum operating voltage Umax: 385 V
Frequency: 60 Hz
THDIR%: ≤20%

• Model: HP10 (product family)
• Available series: MICROfix (fixed banks), MICROmatic (small automatic), MINImatic (medium automatic), MULTImatic (large automatic)
• Reactive power range (examples): 5 kVAr to 420 kVAr depending on series and configuration
• IP rating: IP3X for MICROfix/MICROmatic/MINImatic; IP4X for MULTImatic variants
• Data provided per configuration: part number, series name, reactive power at Ue=230 V, recommended load break switch rating, short-circuit current rating (Icc), ingress protection degree and weight

Notes
Select configurations according to required reactive power, short-circuit current capability and site IP requirements. For specification support and ordering, provide network parameters (Ue, expected Icc) and site conditions to the supplier.
