PFC system FH20-60Hz-230V

Overview
Power factor correction improves energy efficiency, reduces voltage drops and current harmonics, and helps avoid billing penalties related to poor power factor.

Product

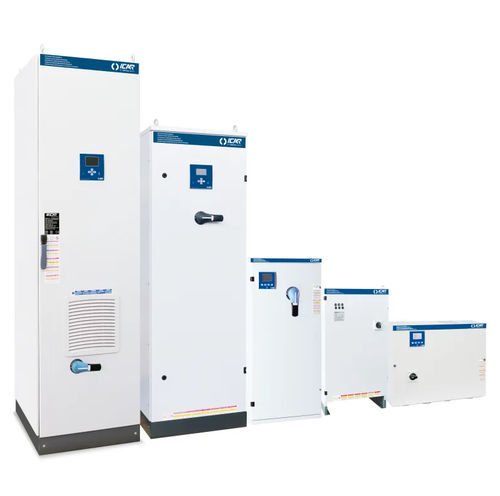

POWER FACTOR CORRECTION SOLUTIONS WITH HIGH GRADIENT METALLIZED POLYPROPYLENE CAPACITORS — MULTImatic family.

Technical specifications
Nominal voltage Ue: 230 V
Nominal voltage of the capacitor Un: 350 V
Maximum operating voltage Umax: 385 V
Frequency: 60 Hz
THDIR%: 100%
I250Hz%: ≤25%
THDVR%: ≤6%
Detuning frequency fD: 216 Hz

MULTImatic - Available configurations (selection)
Part number | Reactive power Ue=230V | Load break switch | Icc | IP degree | Weight
IN7ABB288060701 | 88 VA | 400 | 25 | IP4X | 250 kg
IN7ABB313860701 | 138 VA | 630 | 25 | IP4X | 315 kg
IN7ABB318860701 | 188 VA | 800 | 50 | IP4X | 380 kg
IN7ABB323860701 | 238 VA | 1250 | 50 | IP4X | 460 kg
IN7ABB328860701 | 288 VA | 1250 | 50 | IP4X | 520 kg
IN7ABB335060701 | 350 VA | 2x800 | 50 | IP4X | 740 kg
IN7ABB340060701 | 400 VA | 2x800 | 50 | IP4X | 800 kg
IN7ABB345060701 | 450 VA | 2x1250 | 50 | IP4X | 860 kg
IN7ABB350060701 | 500 VA | 2x1250 | 50 | IP4X | 920 kg
IN7ABB355060701 | 550 VA | 2x1250 | 50 | IP4X | 980 kg
IN7ABB360060701 | 600 VA | 2x1250 | 50 | IP4X | 1040 kg

Key features / technical details

• Nominal voltage (Ue): 230 V
• Nominal voltage of the capacitor (Un): 350 V
• Maximum operating voltage (Umax): 385 V
• Frequency: 60 Hz
• THDIR%: 100%
• I250Hz%: ≤25%
• THDVR%: ≤6%
• Detuning frequency (fD): 216 Hz
• MULTImatic configurations available with reactive power ratings from 88 VA up to 600 VA (see selection above)
• Load break switch and short-circuit current (Icc) ratings vary by configuration
• Degree of protection for listed configurations: IP4X
