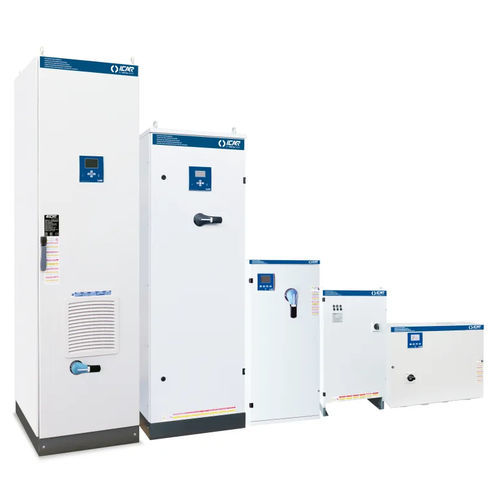

PFC system FH20-60Hz-400V

Short description
POWER FACTOR CORRECTION SOLUTIONS WITH HIGH GRADIENT METALLIZED POLYPROPYLENE CAPACITORS

Technical specifications
Nominal voltage Ue: 400 V
Nominal voltage of the capacitor Un: 480 V
Maximum operating voltage Umax: 528 V
Frequency: 60 Hz
THDIR: 100%
I250Hz: 25% (<=25%)
THDVR: 6% (<=6%)
Detuning frequency fD: 216 Hz

Detuned automatic PFC system MULTImatic
Columns: Part number | Name | Reactive power Ue=400V (kVAr) | Load break switch (A) | Icc | IP degree | Weight (kg)
IN7AFF310060701 | MULTImatic | 100 | 250 | 17 | IP4X | 212
IN7AFF314060701 | MULTImatic | 140 | 400 | 25 | IP4X | 235
IN7AFF318060701 | MULTImatic | 180 | 400 | 25 | IP4X | 277
IN7AFF322060701 | MULTImatic | 220 | 630 | 25 | IP4X | 299
IN7AFF326060701 | MULTImatic | 260 | 630 | 25 | IP4X | 343
IN7AFF330060701 | MULTImatic | 300 | 800 | 50 | IP4X | 373
IN7AFF334060701 | MULTImatic | 340 | 800 | 50 | IP4X | 409
IN7AFF338060701 | MULTImatic | 380 | 1250 | 50 | IP4X | 437
IN7AFF342060701 | MULTImatic | 420 | 1250 | 50 | IP4X | 491
IN7AFF346060701 | MULTImatic | 460 | 1250 | 50 | IP4X | 512
IN7AFF350060701 | MULTImatic | 500 | 2x630 | 25 | IP4X | 644
IN7AFF356060701 | MULTImatic | 560 | 2x800 | 50 | IP4X | 678
IN7AFF364060701 | MULTImatic | 640 | 2x800 | 50 | IP4X | 741
IN7AFF372060701 | MULTImatic | 720 | 2x1250 | 50 | IP4X | 821
IN7AFF380060701 | MULTImatic | 800 | 2x1250 | 50 | IP4X | 884
IN7AFF388060701 | MULTImatic | 880 | 2x1250 | 50 | IP4X | 962
IN7AFF396060701 | MULTImatic | 960 | 2x1250 | 50 | IP4X | 1008

Detuned racks EUROrack
Columns: Part number | Name | Reactive power Ue=400V (kVAr) | IP degree
IY7TFF225060360 | EUROrack | 25 | IP00
IY7TFF250060360 | EUROrack | 50 | IP00
IY7TFF310060360 | EUROrack | 100 | IP00

Remarks
Presented as power factor correction systems using high-gradient metallized polypropylene capacitors. Multiple configurations available (MULTImatic units and EUROrack banks) to cover reactive power ranges from 25 kVAr to 960 kVAr. Detailed datasheets are available per reference.

Characteristics / technical specifications

• Nominal voltage Ue: 400 V
• Nominal capacitor voltage Un: 480 V
• Maximum operating voltage Umax: 528 V
• Nominal frequency: 60 Hz
• THDIR: 100%
• I250Hz: 25% (<=25%)
• THDVR: 6% (<=6%)
• Detuning frequency fD: 216 Hz
• Typical IP classes: IP4X (MULTImatic), IP00 (EUROrack)
• Wide range of reactive power options (25 kVAr to 960 kVAr)
